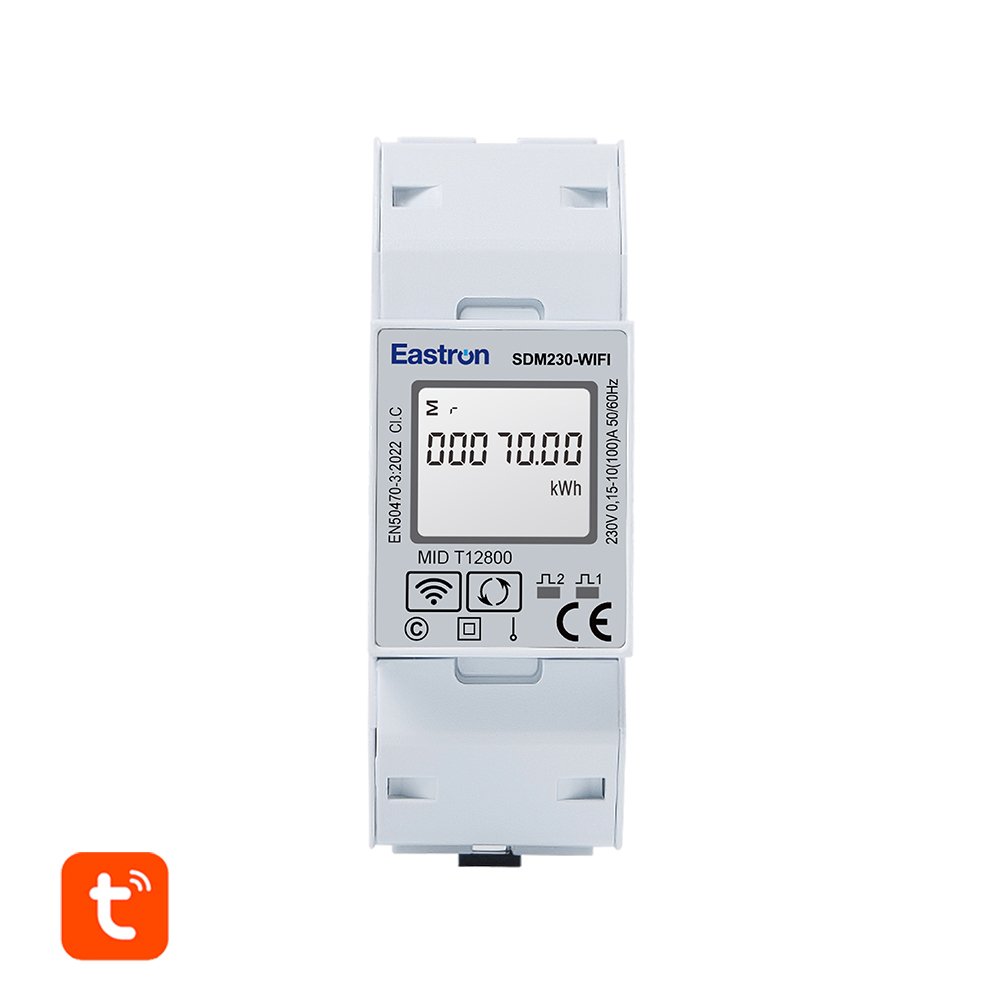

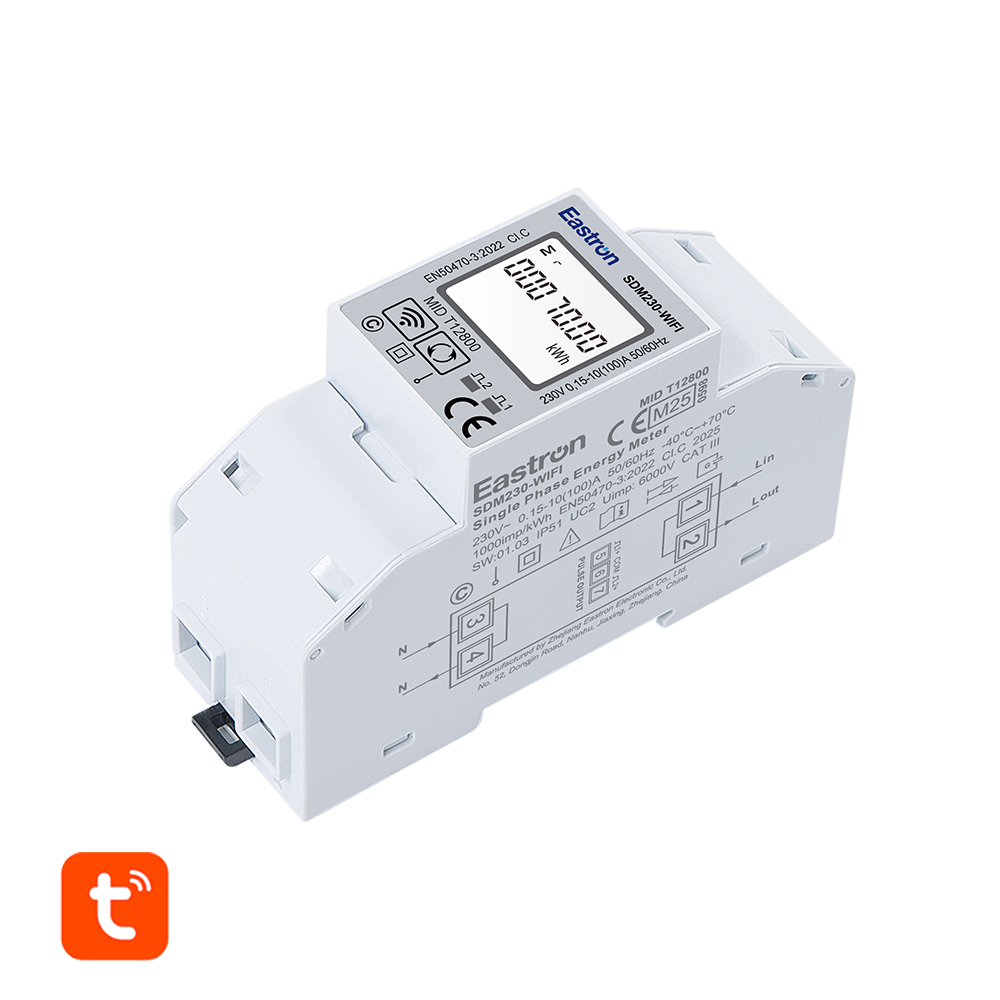

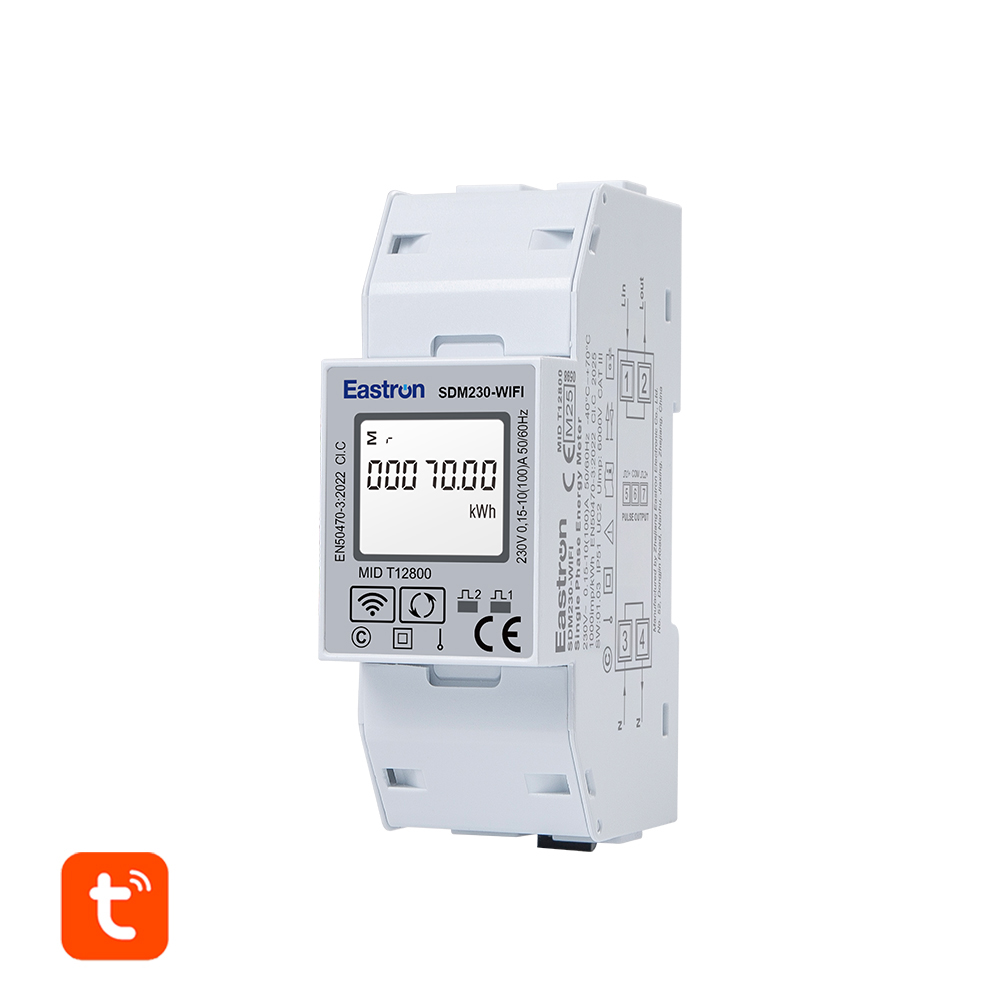

The SDM230-WIFI TY measures and displays the characteristics of single phase two wire (1p2w) supplies, includingvoltage, frequency, current, power, active energy, reactive energy, imported energy, exported energy andtotal harmonic distortion. Energy is measured in terms of kWh, kVArh. SDM230-WIFI TY supports max. 100A direct
connection.
The SDM230-WIFI TY is equipped with a Wi-Fi communication function and supports communication with Tuya's "Smart Life" APP. The SDM230-WIFI TY is configured with 2 channels of pulse output. The pulse constant, pulse width and pulse type are configurable. Parameter configuration can be implemented via the buttons on the panel. It is well functional with high security.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS |
|
|
Measurement Accuracy |
Voltage |
±0.2% |
|
Current |
±0.2% |
|
|
Frequency |
±0.05% |
|
|
Power Factor |
0.005 |
|
|
Active Power |
± 0.5% (10%Ib-Imax) |
|
|
Reactive Power |
± 1% (10%Ib-Imax) | |
|
Apparent Power |
± 0.5% (10%Ib-Imax) |
|
|
Active Energy |
Class 0.5 IEC62053-22 Class C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.15A |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Voltage Range |
100~277V |
||
|
Output |
2 Pulse Outputs +WIFI |
||
