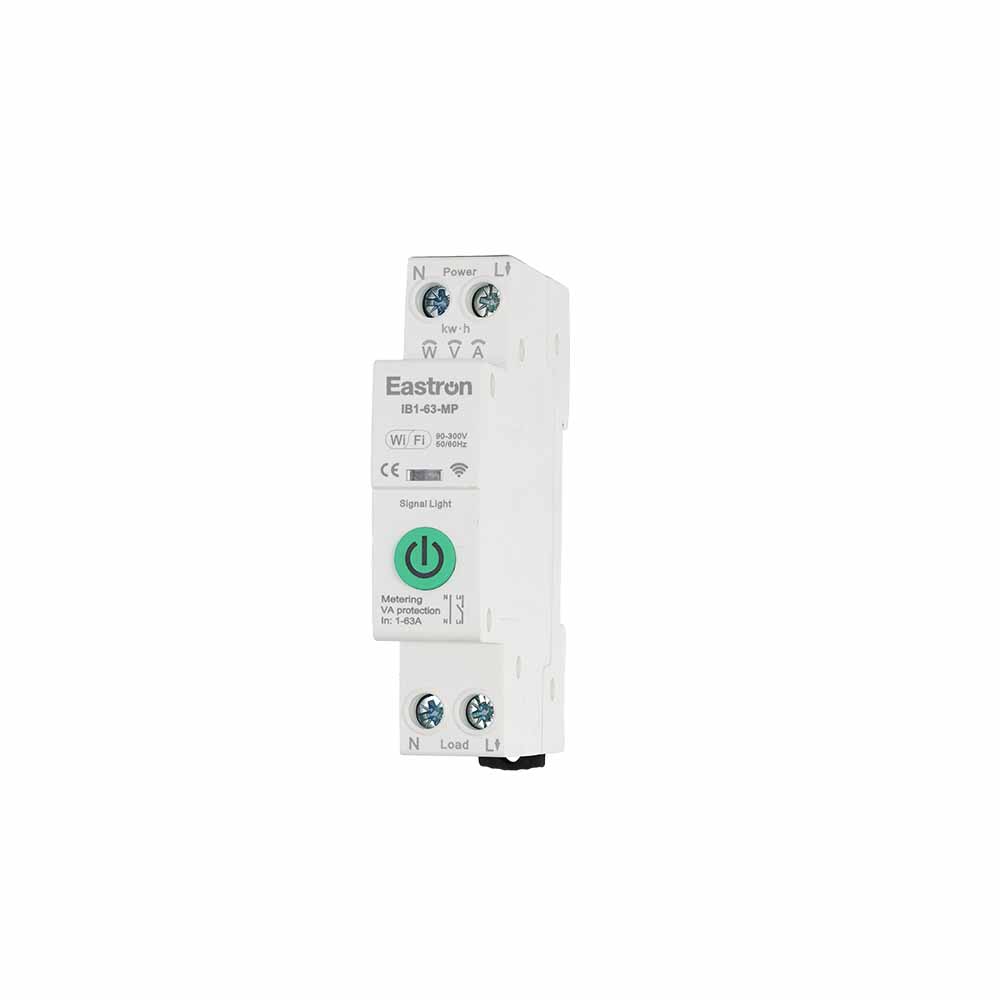

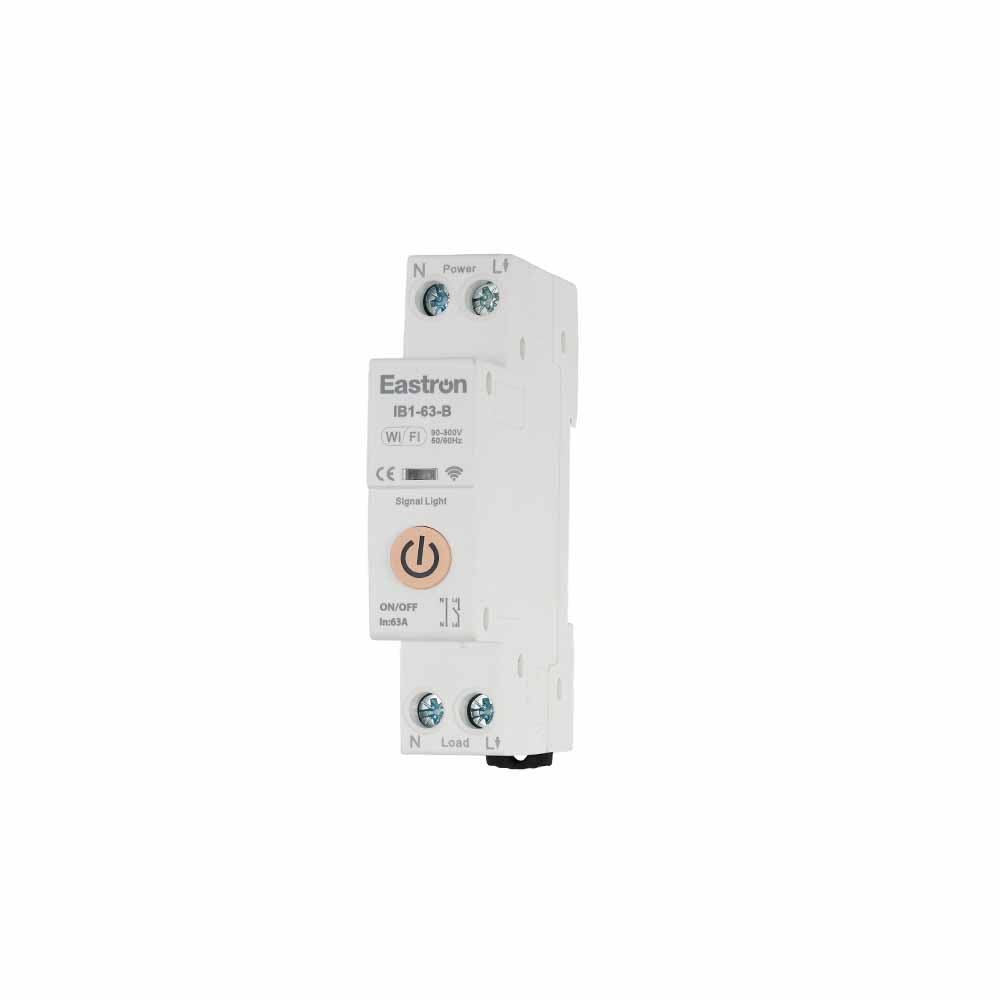

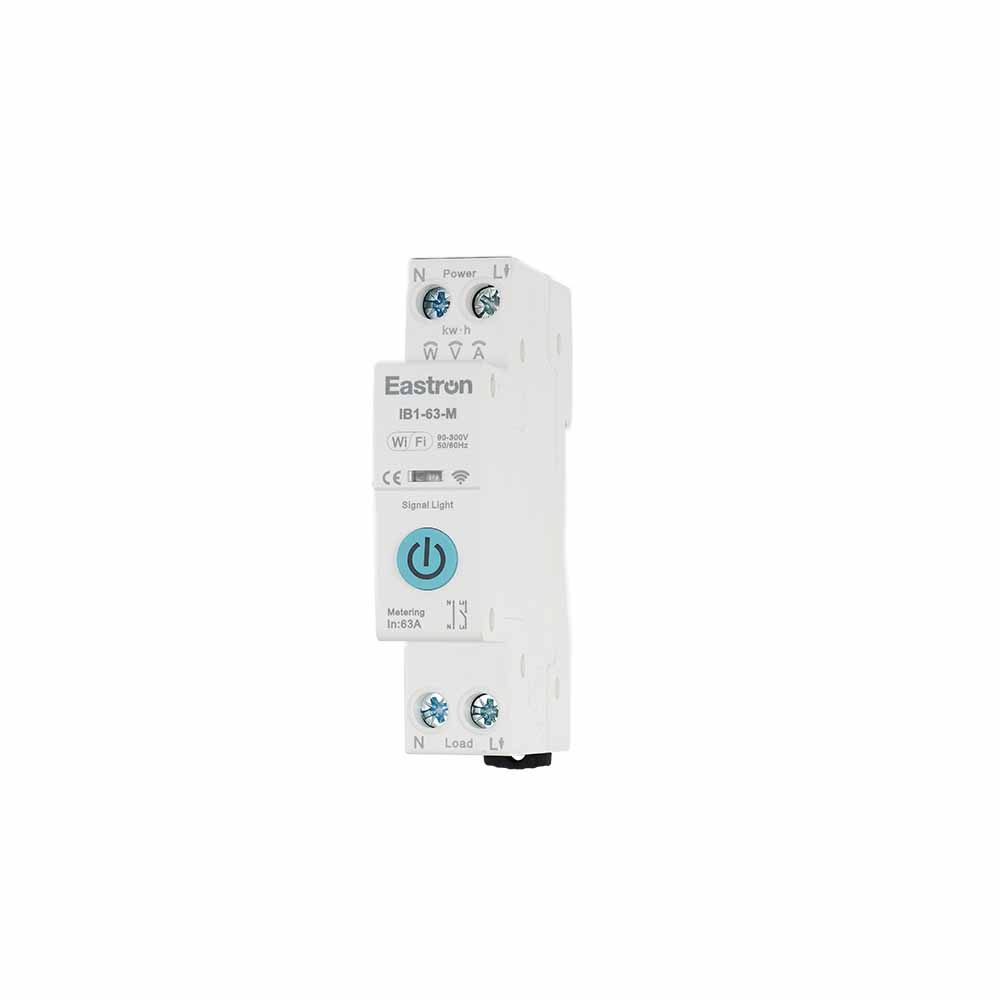

IB1-63 Series

APP/Voice Control Din Rail Wifi Intelligent Circuit Breaker

  • Max. 63A direct load
  • App / voice control
  • Timer switch
  • Monitor power consumption
  • Overvoltage protection
  • Undervoltage protection
  • Overcurrent protection
  • Overload protection
  • Delay protection

Eastron IB1-63 Series is a compact design Wi-Fi intelligent circuit breaker with an advanced structure, reliable performance, and an aesthetically pleasing appearance. It is primarily designed for applications in AC 50Hz systems with a voltage below 400V and a rated operating current of up to 63A.
Supporting remote operation, it allows users to view real-time displays of electrical parameters (including current, voltage, energy consumption, power, and frequency) via mobile devices. Equipped with programmable cycle timers, it can be set to automatically turn power supply on or off.
Ideal for protecting lighting systems, distribution circuits, and electrical equipment in office buildings, residences, and similar facilities, Eastron IB1-63 Series also facilitates infrequent switching and conversion operations.

Technical Parameters

Current Setting

1A~63A

Rated Voltage

220V/110V AC

Protection Rating

400V

Withstand Voltage

80V~300V AC

Overvoltage Range

130V~300V

Undervoltage Range

75V~210V

Electric Power Range

0~9999kWh

Scheduled Setting

15 sets of timed settings

Temperature Range

-40℃~+150℃

Altitude

≤2000m

Humidity

<50% at 40℃ (non-condensing)



Cableado y dimensiones [mm:]

Wiring and Dimension [mm:]

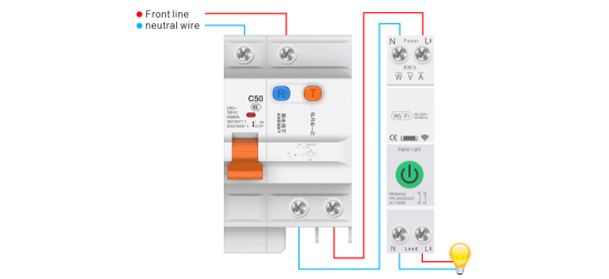

Wiring diagram

Wiring and Dimension [mm:]

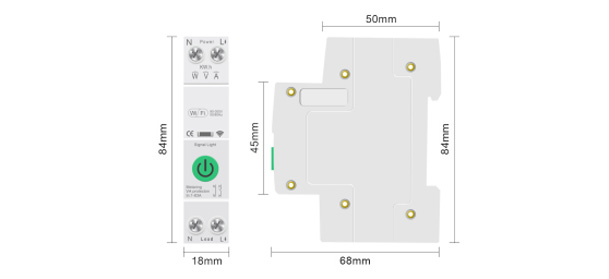

Dimensions
