RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción

  • RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción
  • RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción
  • RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción
  • RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción
  • RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción
  • RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción

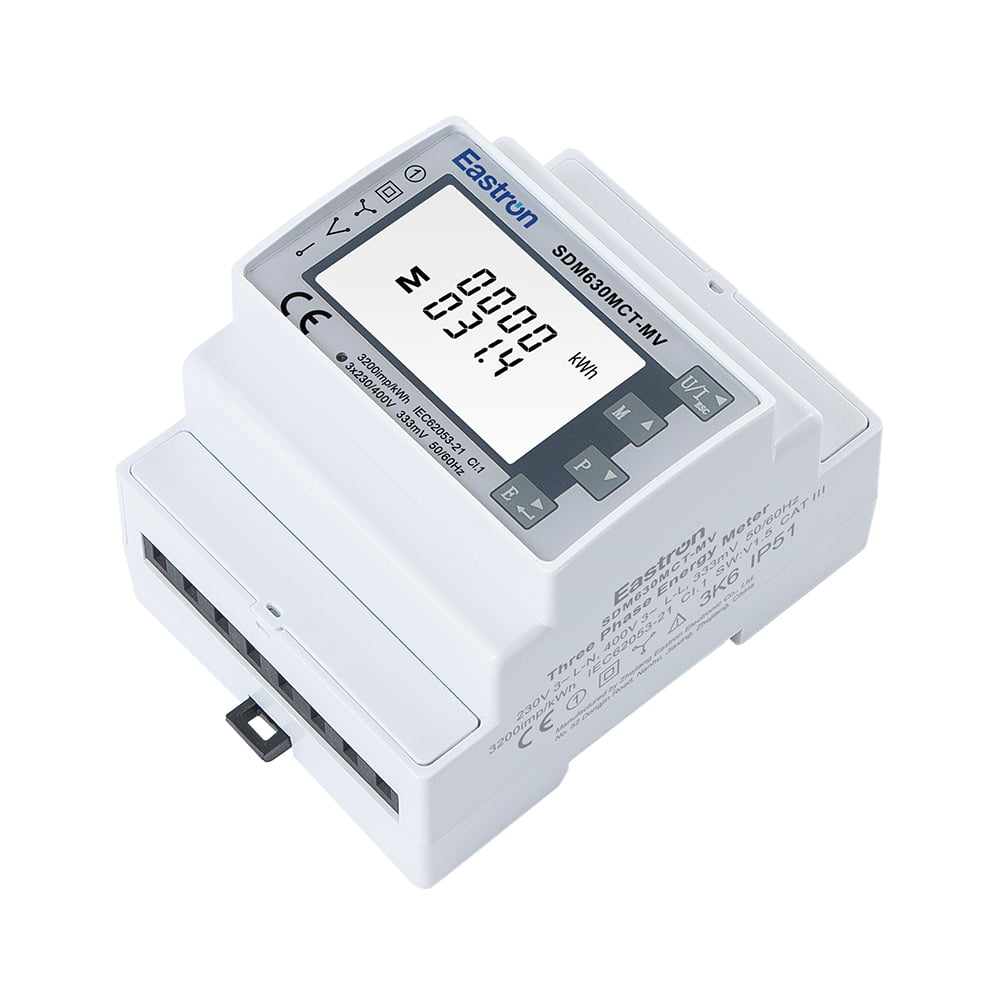

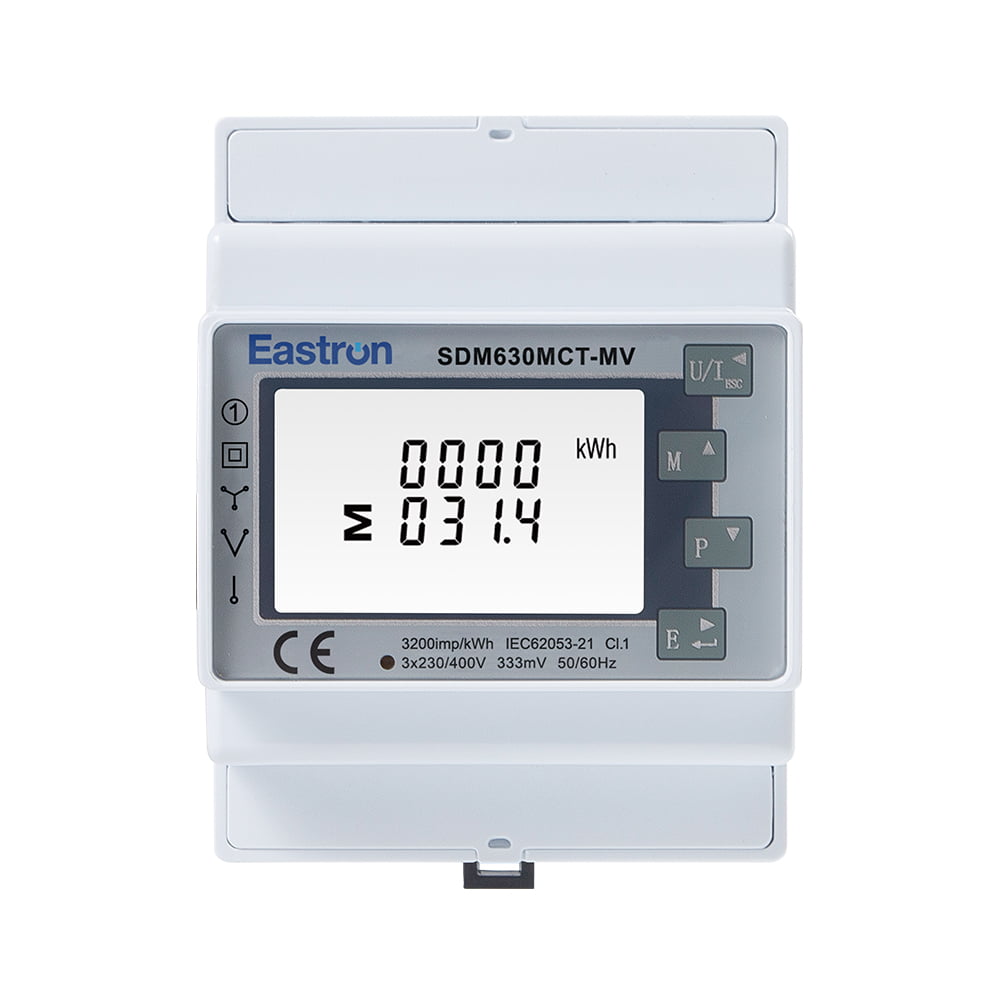

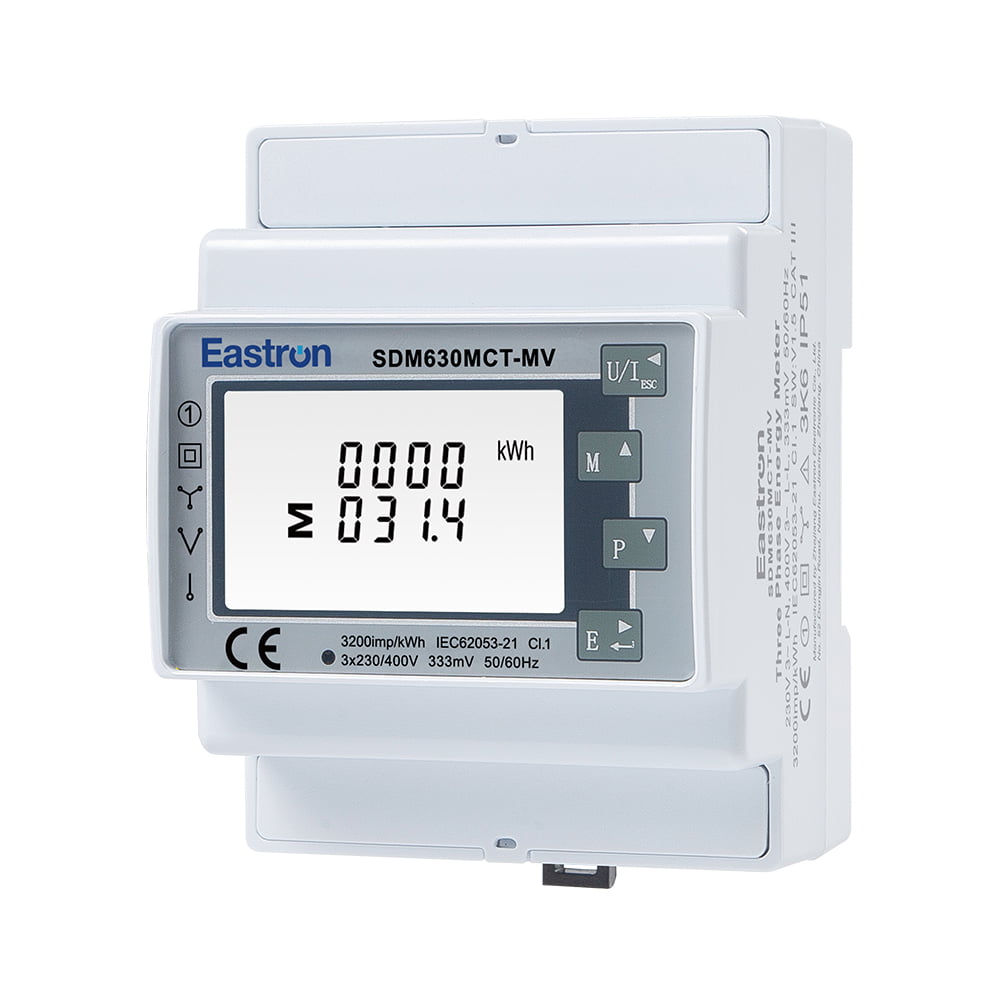

SDM630MCT-MV

RS485 MA/MV CT operado DIN Rail Tres fase Medidor de energía multifunción

  • CT y PT operados
  • Trabaja con 3P4W/3P3W/1P2W
  • 4 módulo de 72 mm de ancho
  • Multi-medición:
  • KWH, KVARH, W, VAR, VA, PF, HZ, DMD, V, etc.
  • Medición bidireccional
  • 2 salidas de pulso
  • RS485 MODBUS

SDM630CT Modbus / mbus / 2t / mv

Medidor de energía multifunción trifásico

El SDM630MCT-MV es RS485 mA/MV CT operado por Rail DIN trifásico Medidor de energía multifunción. Adecuado para monitorear el consumo de energía y muchos otros parámetros eléctricos. La unidad requiere una fuente de alimentación auxiliar (CA o CC) para alimentar el medidor y puede funcionar con CTS de entrada MA/MV. La interfaz incorporada proporciona salidas de pulso y RS485 Modbus RTU.

SDM630MCT-MV ha sido evaluado y certificado de RCM por SAA y el número rastreable del instrumento es SAA220473.

Características eléctricas

Tipo de medición

RMS incluyendo armónicos en el sistema de CA trifásico (3p, 3p n)

Precisión de la medición

Voltaje

± 0.5%

Actual

± 0.5%

Frecuencia

± 0.2%

Factor de potencia

± 1%

Potencia activa

± 1%

Potencia reactiva

± 1%

Poder aparente

± 1%

Energía activa

Clase 0.5S IEC 62053-22, Clase 1.0 IEC 62053-21

Energía reactiva

Clase 2 IEC62053-23

Entrada y salida

Aporte

Actual

CT secundario

333mV/ 100 mM/ 40 mM/ 100mV

CT primario

1-9999a

Voltaje

Voltaje nominal (un)

230V L-N/ 120V L-N

Voltaje operacional

80% ~ 120% de la ONU

Producción

Serie SDM630MCT MV/MA

2 salidas de pulso rs485 modbus

RS485 Modbus Communications

Dirección de comunicación

1 ~ 247

Distancia de transmisión

1000m máximo

Velocidad de transmisión

1200bps ~ 38400bps

Paridad

Ninguno (predeterminado), impar, par

Parada

1 o 2

Tiempo de respuesta

<100 MS

Cableado y dimensiones [mm:]

Cableado y dimensión [mm:]

Diagrama de cableado

Cableado y dimensión [mm:]

Dimensiones
