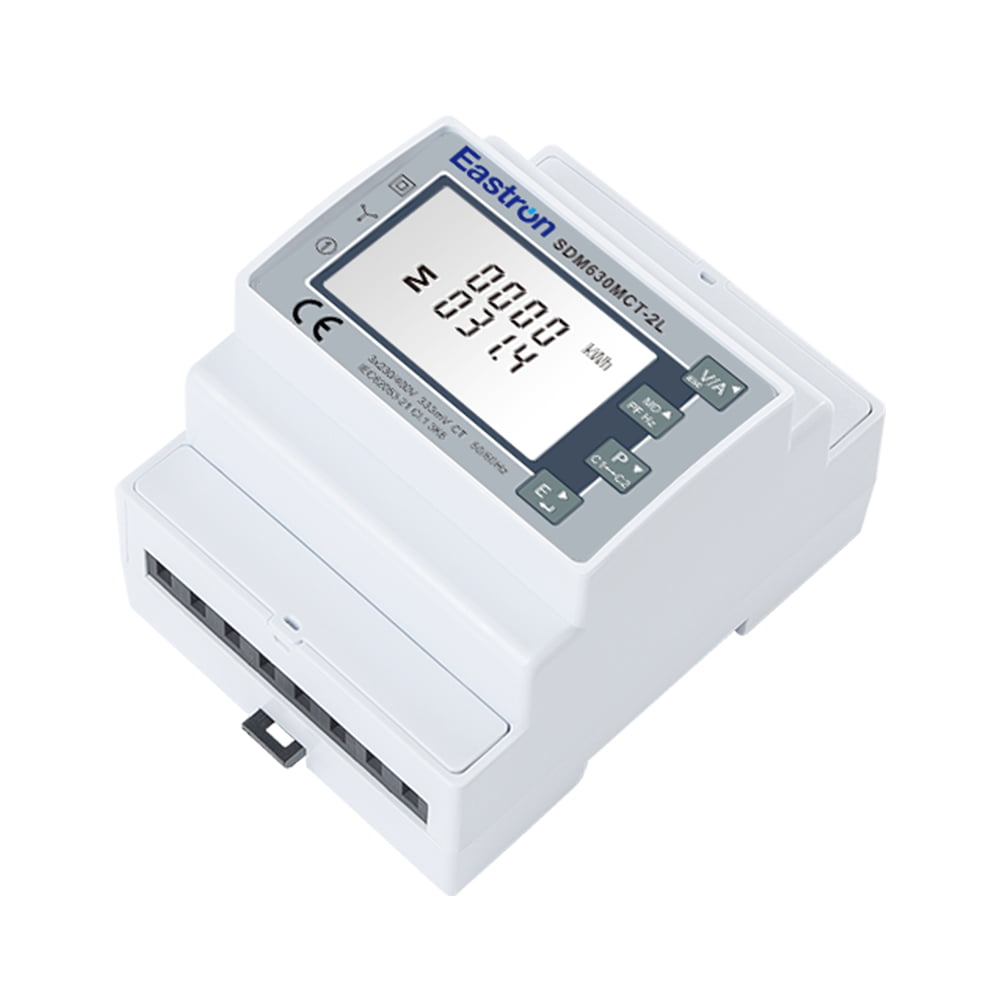

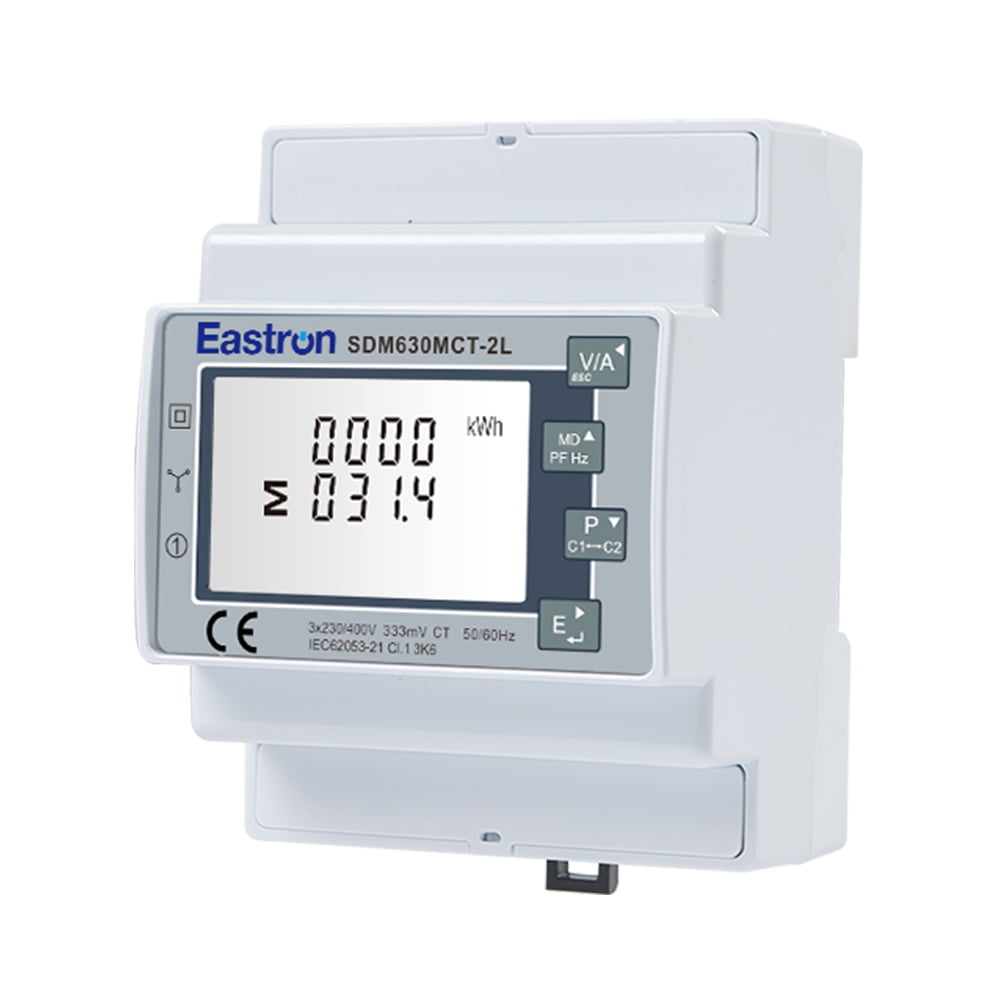

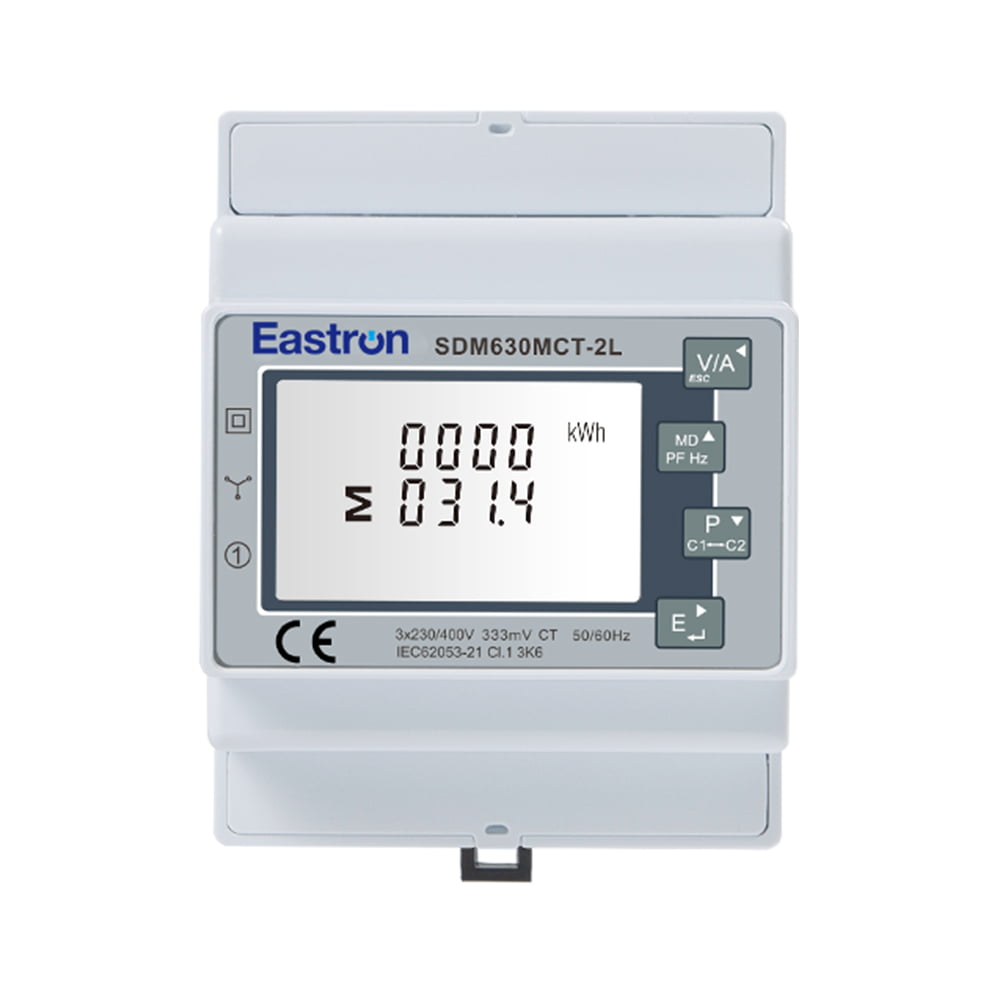

El SDM630MCT-2L es un medidor de energía multifunción trifásico de carril Din Modbus RS485 de carga dual. Adecuado para monitorear el consumo de energía y muchos otros parámetros eléctricos. Este medidor contiene cuatro circuitos de medición en una caja y acepta entradas de cuatro CT RJ12 separados. La unidad requiere fuente de alimentación auxiliar (CA o CC) para alimentar el medidor y puede funcionar con CT de entrada de 100 mA. La interfaz integrada proporciona salidas RS485 Modbus RTU.
| Características eléctricas | ||
| Tipo de Medición | RMS incluidos armónicos en un sistema de CA trifásico (3P, 3P N) | |
| Precisión de medición | Fuerza | 0,5% del rango máximo |
| Energía Activa | IEC 62053-22 Clase 0.5S, IEC 62053-21 Clase 1.0 | |
| Energía reactiva | IEC62053-23 Clase 2 | |
| Frecuencia | 0,2% de frecuencia media | |
| Actual | 0,5% del rango máximo | |
| Voltaje | 0,5% del rango máximo | |
| Factor de potencia | 1% de la unidad (0,01) | |
| Entrada y salida | |||
| Aporte | Actual | TC secundaria | 100 mA/100 mV |
|
|
| ||
| TC primaria | 1-9999A | ||
| Voltaje | Tensión nominal (Un) | 230V LN / 120V LN | |
| Voltaje operativo | 80%~120% de la ONU | ||
| Producción | SDM630MCT-ML/3L/2L-1L | Modbus RS485 (puerto RJ45) | |
| SDM630MCT-ML-TCP | Ethernet Modbus TCP | ||
| Comunicaciones RS485/Ethernet Modbus | |
| Dirección de comunicación | 1~247 |
| Distancia de transmisión | 1000 m máximo |
| Velocidad de transmisión | 1200bps~38400bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Bits de parada | 1 o 2 |
