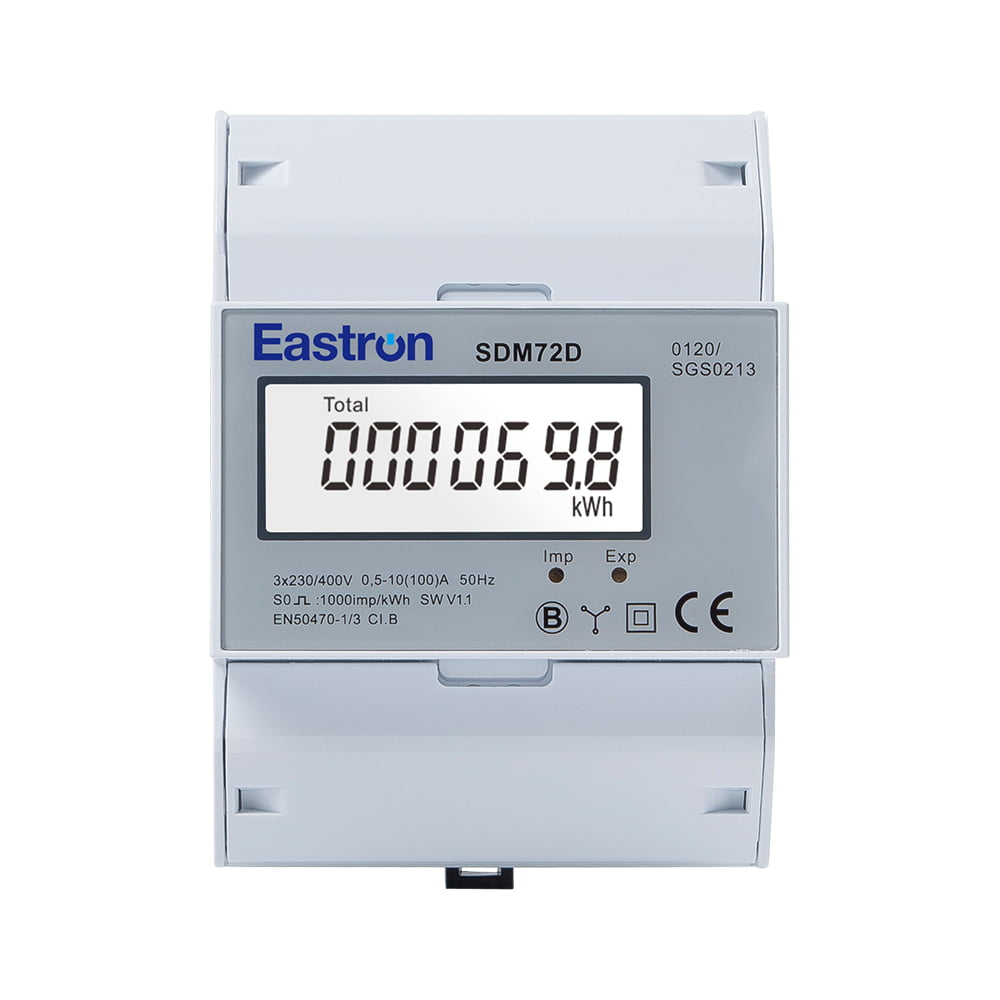

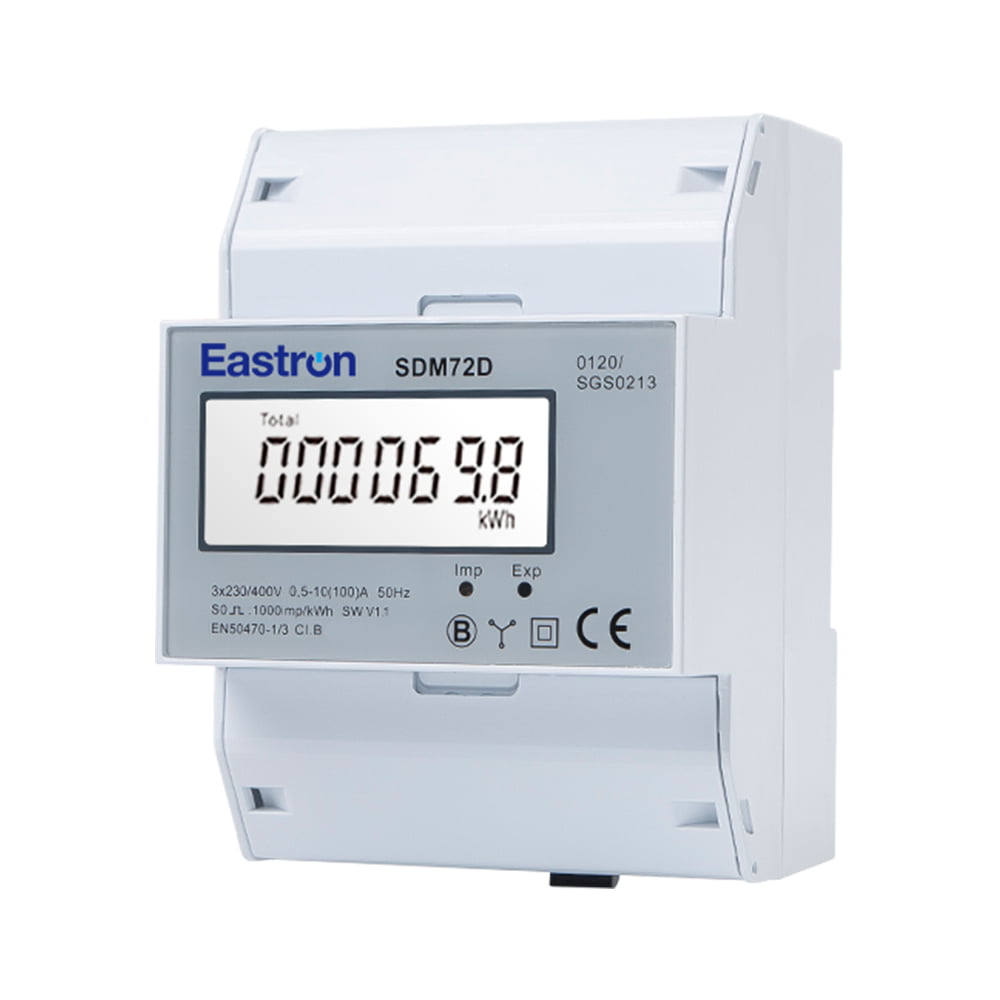

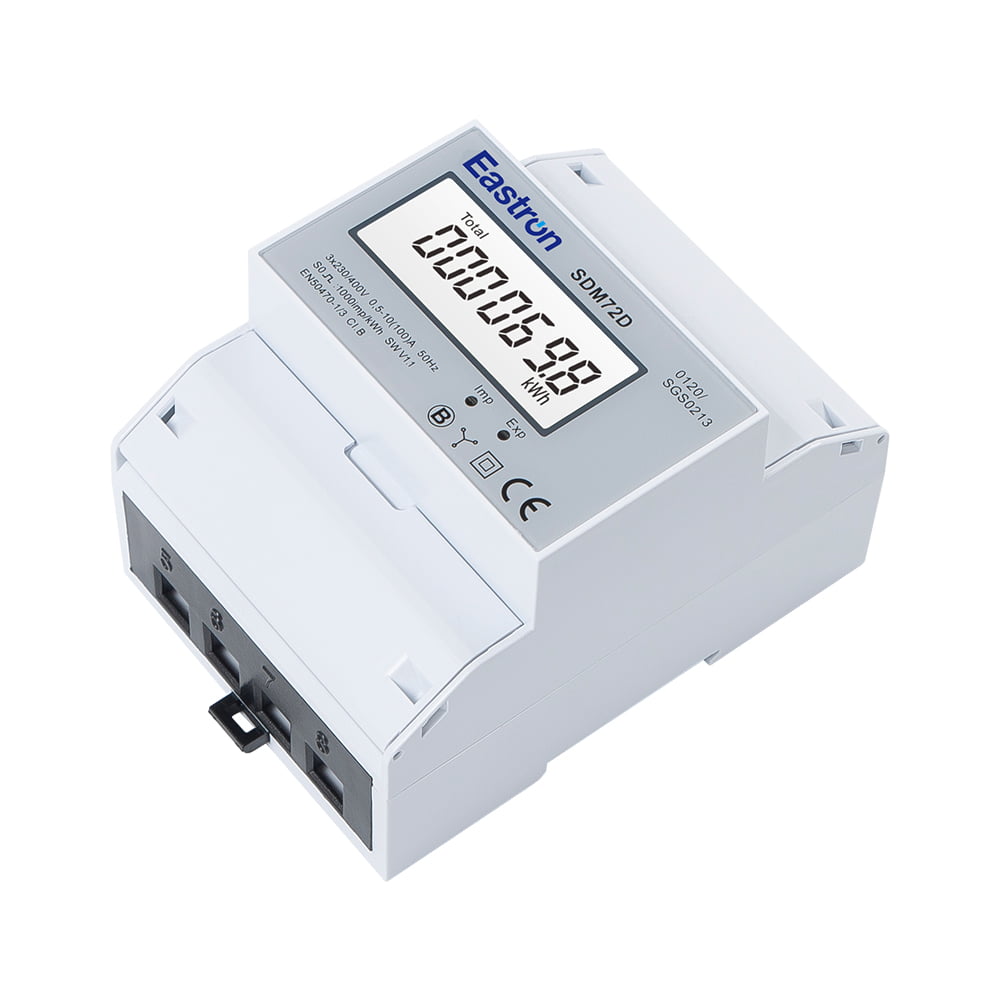

El SDM72D es un medidor de energía MID de carril DIN trifásico de cuatro cables con medición de kWh. Está equipado con una pantalla LCD retroiluminada de color blanco para una lectura perfecta. Se utilizan para medir energía trifásica de cuatro cables en aplicaciones comerciales e industriales.
La unidad ha sido aprobada para cumplir con los requisitos de la Directiva de la UE 2014/32/EU.
Características eléctricas | ||
Tipo de Medición | RMS en sistema AC trifásico (3P N) | |
Precisión de medición | Energía | IEC 62053-21 Clase 1.0/EN50470-1/3 Clase B |
Entrada y salida | |||
Corriente de entrada | Tipo de TC | TC primaria | 1-9999A |
TC secundaria | 1A/5A | ||
Corriente mínima | 0.25A | ||
Corriente inicial | 10mA | ||
Tipo directo
| Corriente nominal | 10A | |
Corriente máxima | 100A | ||
Corriente mínima | 0.5A | ||
Corriente inicial | 40mA | ||
Producción | SDM72D/DR/BI | Salida de pulsos para energía activa | |
SDM72CT-D | Salida de pulsos para energía activa |
