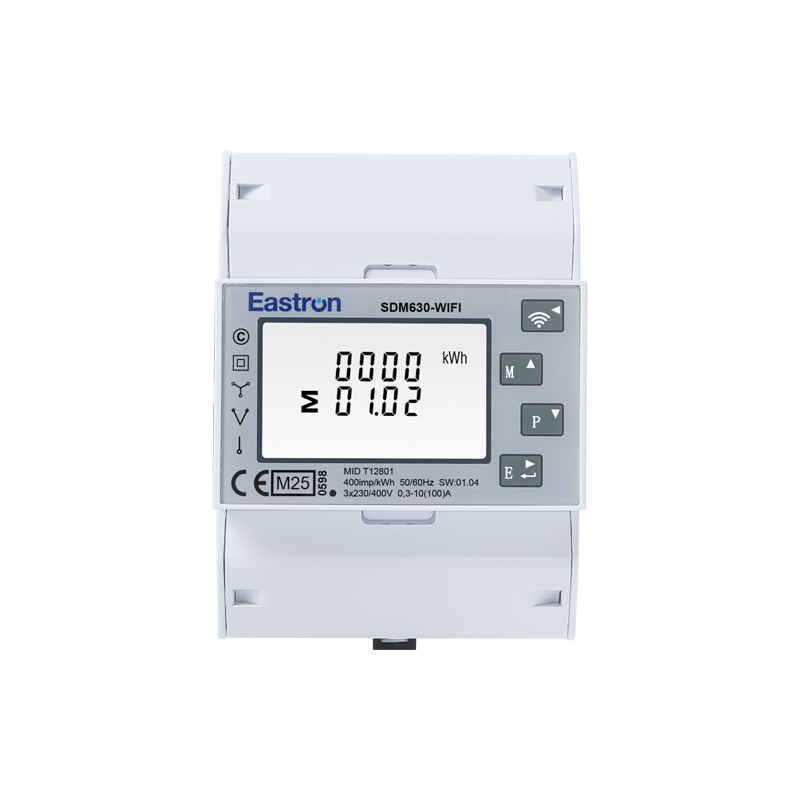

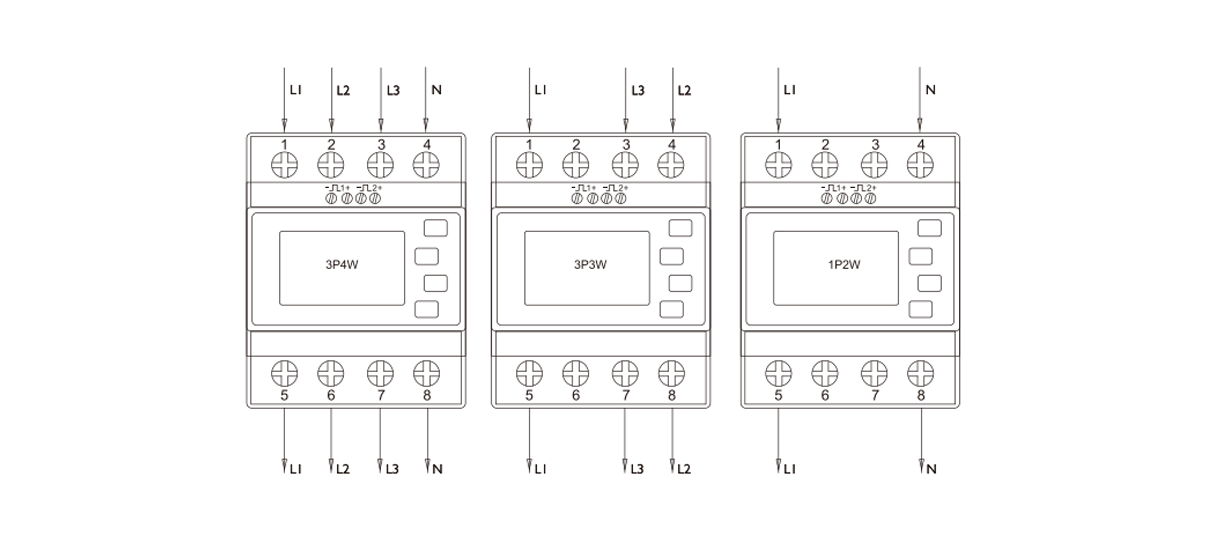

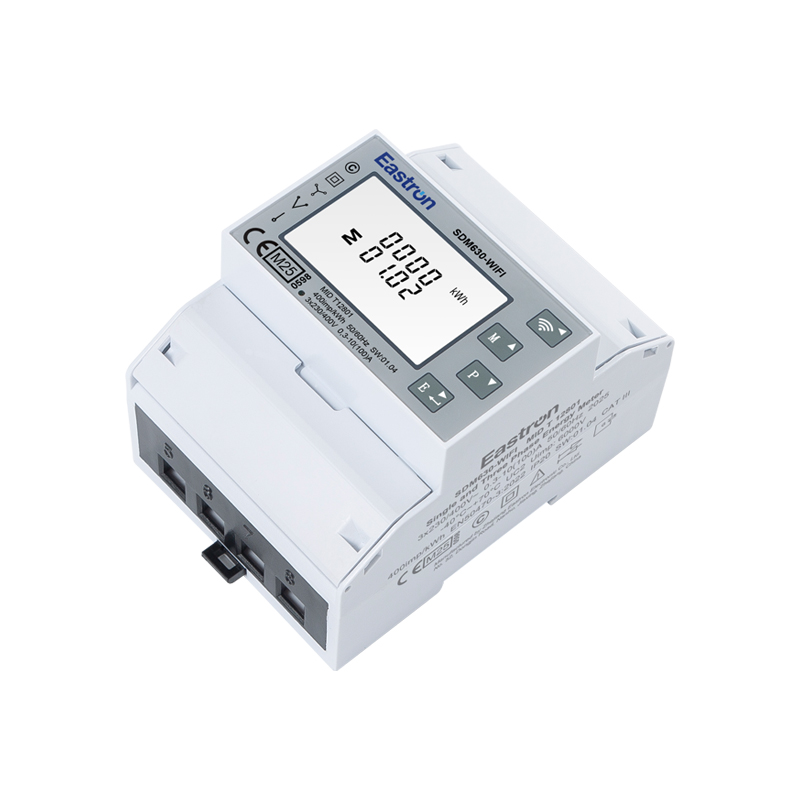

SDM630-WIFI mide y muestra las características de los cables de una sola fase dos (1p2w), alambres de tres fase tres (3P3W), suministros de tres fase cuatro (3p4w), incluidos KWH, KVARH, KW, KVAR, KVA, PF, frecuencia, voltage, corriente, DMD, THD, etc., admite la conexión directa de MAX.100A, la conexión de la conexión. La corriente de demanda máxima se puede medir durante períodos preestablecidos de hasta 60 minutos.
La comunicación WiFi de soporte del medidor, los parámetros se pueden cargar a la plataforma para realizar la administración centralizada de One detener.
| Características eléctricas | ||
| Tipo de medición | RMS incluyendo armónicos en el sistema de CA trifásico (3p, 3p n) | |
| Precisión de la medición | Voltaje | ± 0.5% |
| Actual | ± 0.5% | |
| Frecuencia | ± 0.2% | |
| Factor de potencia | ± 1% | |
| Potencia activa | ± 1% | |
| Potencia reactiva | ± 1% | |
| Poder aparente | ± 1% | |
| Energía activa | Clase 1/0.5 IEC 62053-21 Clase B/C EN50470-3: 2022 | |
| Energía reactiva | Clase 2 IEC62053-23 | |
| Entrada y salida | |||
| Aporte | Actual
| Corriente nominal (IB/IREF) | 10A |
| Corriente máxima (IMAX). | 100A | ||
| Corriente mínima (imin). | 0.3a | ||
| Corriente inicial | 40mera | ||
| Voltaje | Voltaje nominal (un) | 3*230/400V AC | |
| Rango de voltaje | 100 - 277V AC (L -N) 100 a 480V AC (L-L) | ||
| Producción | 2 salidas de pulso Wi-Fi | ||
| Comunicación | |
| Soporte de Wi-Fi | 2.4GHz b / g / n |
| Wi-Fi Data Freq. | Cada segundo |
