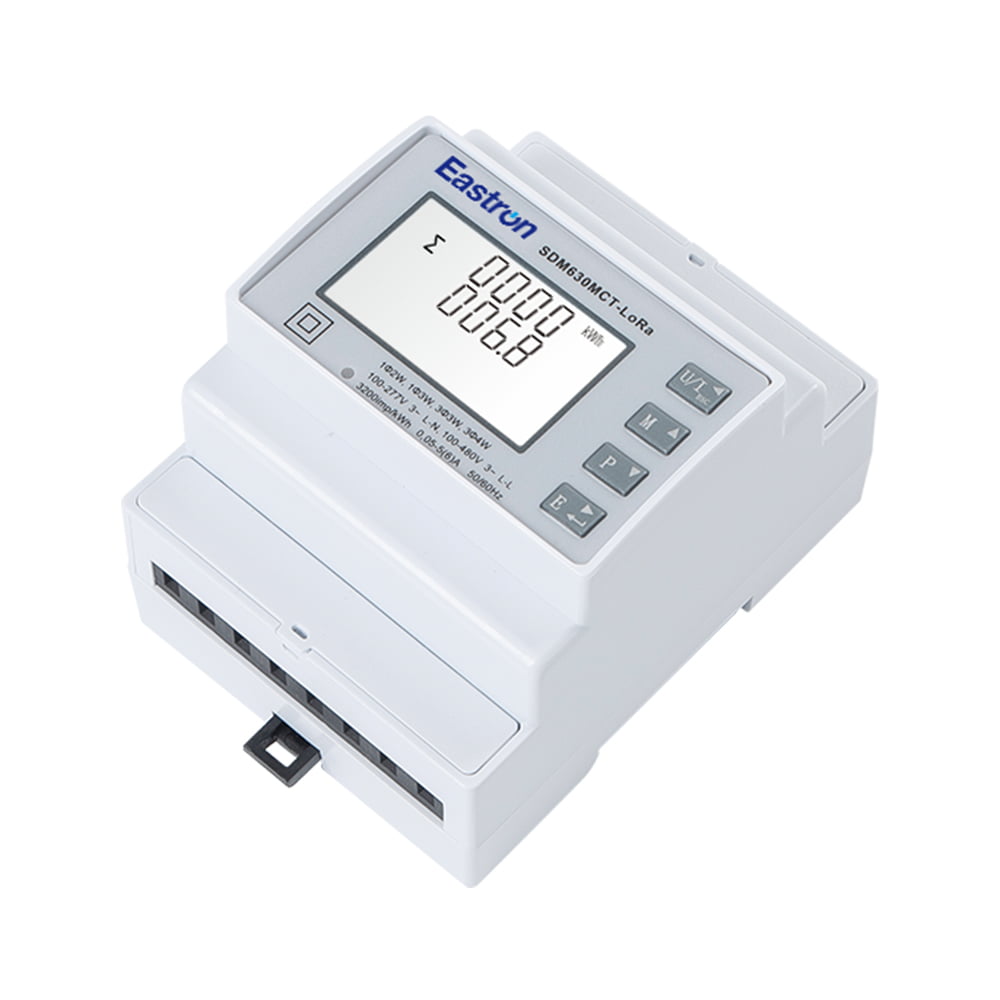

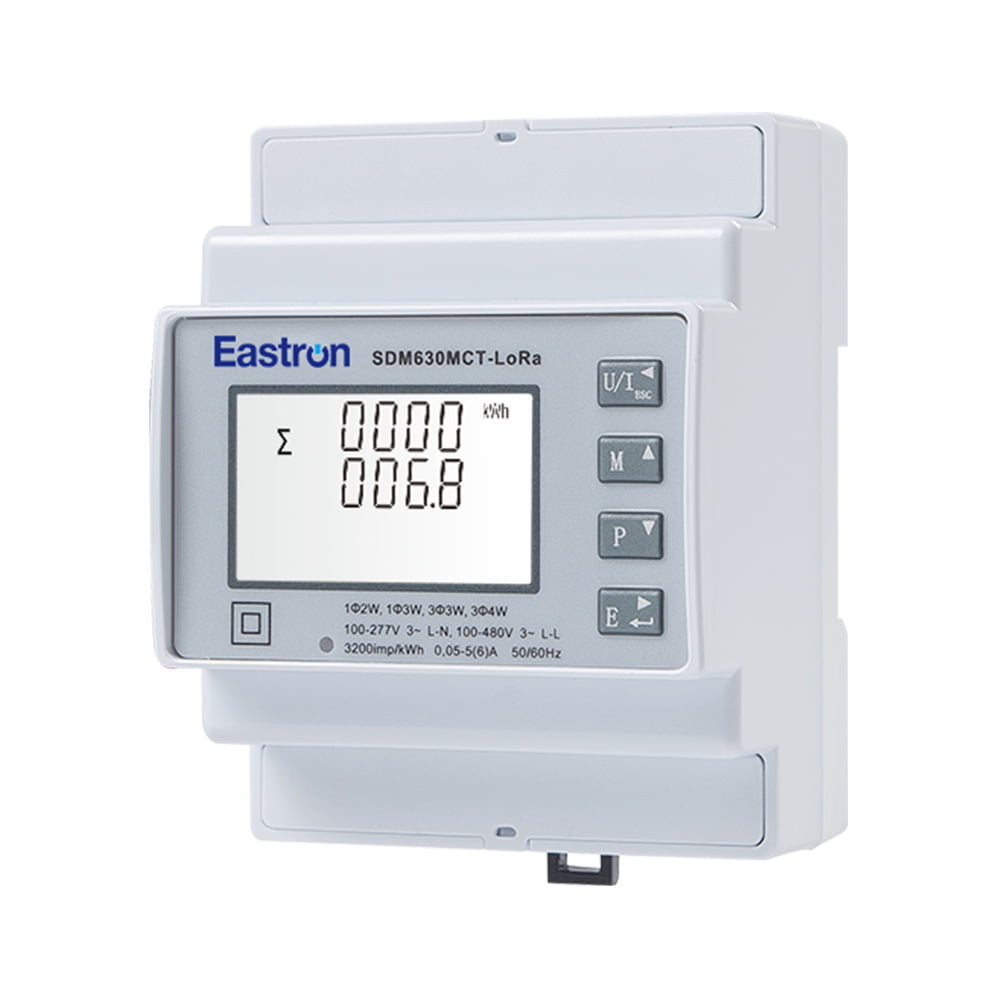

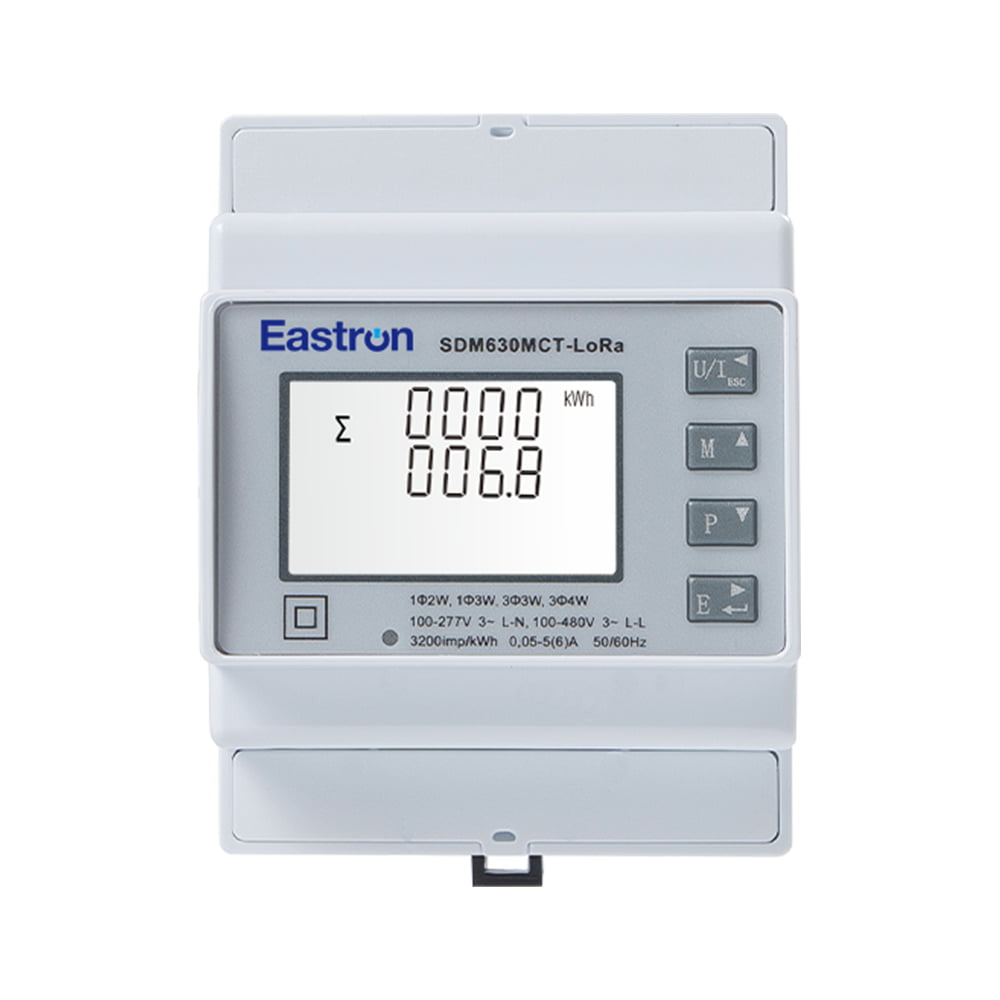

El SDM630MCT-Lora es un Medidor de Energía ETL Trifásico Multifuncional de Riel Din Tipo LoRaWAN CT.
Con el módulo LoraWAN incorporado, mide y muestra las características de los suministros monofásicos de dos hilos (1p2w), monofásicos de tres hilos (1p3w), trifásicos de tres hilos (3p3w) y trifásicos de cuatro hilos (3p4w), incluidos kWh, kVArh, kW, kVA, PF, frecuencia, tensión, corriente, demanda, etc.
La(s) entrada(s) de corriente necesaria(s) se obtiene(n) mediante transformadores de corriente (TC) de salida de 1/5A, este contador puede configurarse para trabajar con una amplia gama de TC, lo que proporciona a la unidad un amplio rango de operación. La configuración está protegida por contraseña.
El SDM630MCT-Lora está homologado ETL por Intertek, lo que significa que está cualificado para entrar en el mercado americano.
|
Características electricas |
||
|
Tipo de medida |
RMS que incluye armónicos en un sistema de CA trifásico (3P, 3P N) |
|
|
Precisión de la medición |
Fuerza |
0,5% del rango máximo |
|
Energía activa |
IEC 62053-22 Clase 0.5S, IEC 62053-21 Clase 1.0 EN50470-1/3 Clase B y C |
|
|
Energía reactiva |
IEC62053-23 Clase 2 |
|
|
Frecuencia |
0,2% de frecuencia media |
|
|
Actual |
0,5% del rango máximo |
|
|
Voltaje |
0,5% del rango máximo |
|
|
Factor de potencia |
1% de la unidad (0.01) |
|
|
De entrada y salida |
|||
|
Aporte |
Actual
|
CT secundaria |
1A/5A |
|
TC primario |
1-9999A |
||
|
Corriente mínima |
0.25A |
||
|
Corriente de arranque |
20mA |
||
|
Voltaje |
Tensión nominal (Un) |
230V L-N / 120V L-N |
|
|
Voltaje operativo |
80%~120% de la ONU |
||
|
Producción |
SDM630MCT/MT |
2 salidas de pulso RS485 Modbus |
|
|
SDM630MCT-2T/ SDM630MCT-Mbus-2T |
2 salidas de pulso RS485 Modbus 2T (fuente de alimentación dual) |
||
|
SDM630MCT-Mbus |
2 Salidas de Pulso M-bus EN13757 |
||
|
SDM630MCT-LoRa |
2 Salidas de Pulso LoraWAN |
||
|
Comunicaciones Modbus RS485 |
|
|
Dirección de comunicación |
1~247 |
|
Distancia de transmisión |
1000 m máximo |
|
Velocidad de transmisión |
1200bps~38400bps |
|
Paridad |
Ninguno (predeterminado), Impar, Par |
|
Bits de parada |
1 o 2 |
|
Tiempo de respuesta |
<100mS |
|
Comunicaciones M-Bus EN13757-3 |
|
|
Dirección de comunicación |
1~250 |
|
Distancia de transmisión |
1000 m máximo |
|
Tasa de baudios |
300bps~9600bps |
|
Paridad |
Ninguno (predeterminado), Impar, Par |
|
Bits de parada |
1 o 2 |
|
Comunicaciones LoRaWAN |
|
|
Frecuencia de comunicación |
EU868/ AS923/ AU915/ US915, etc. |
