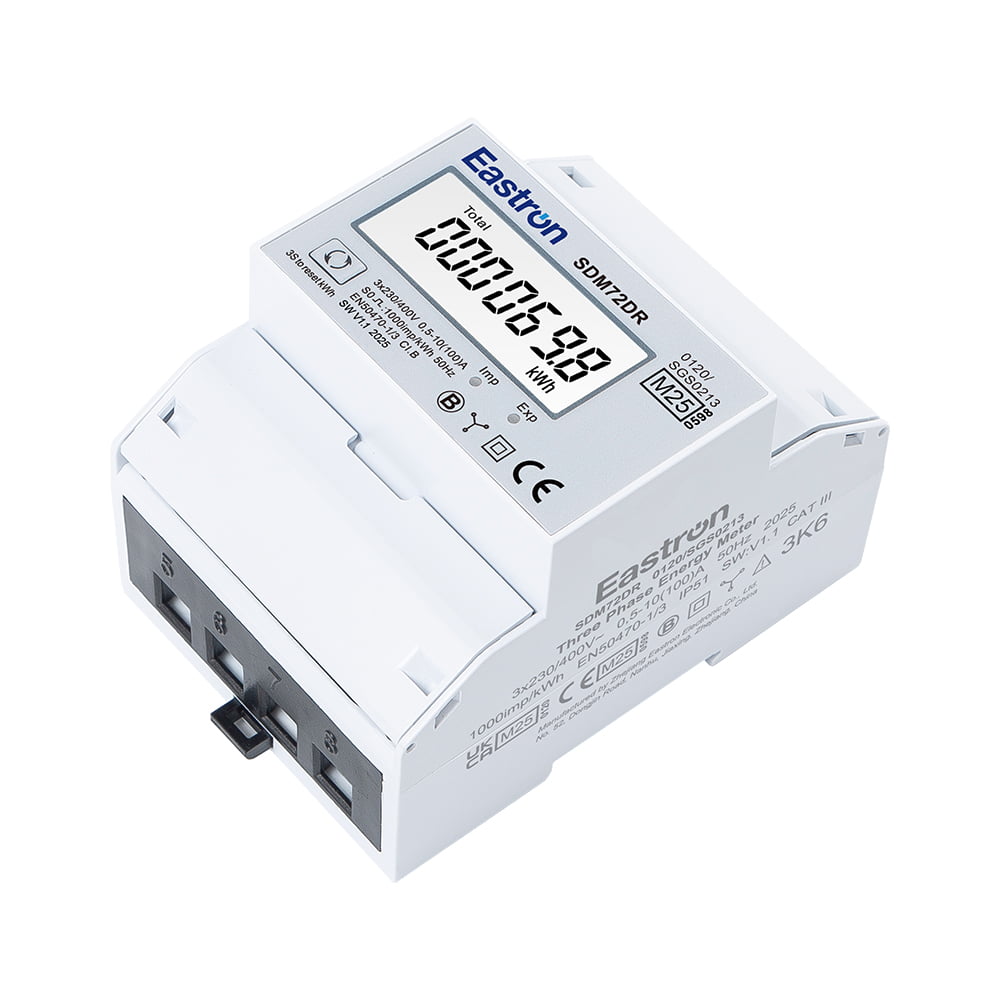

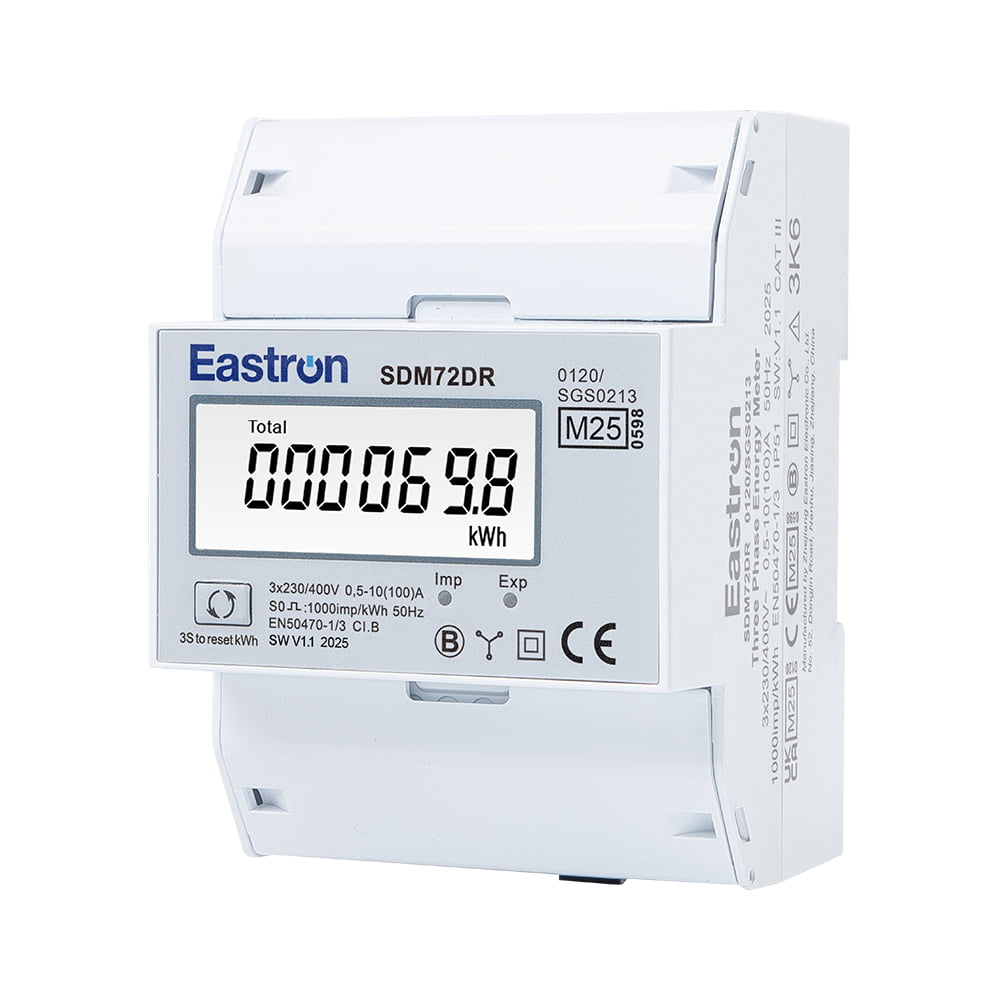

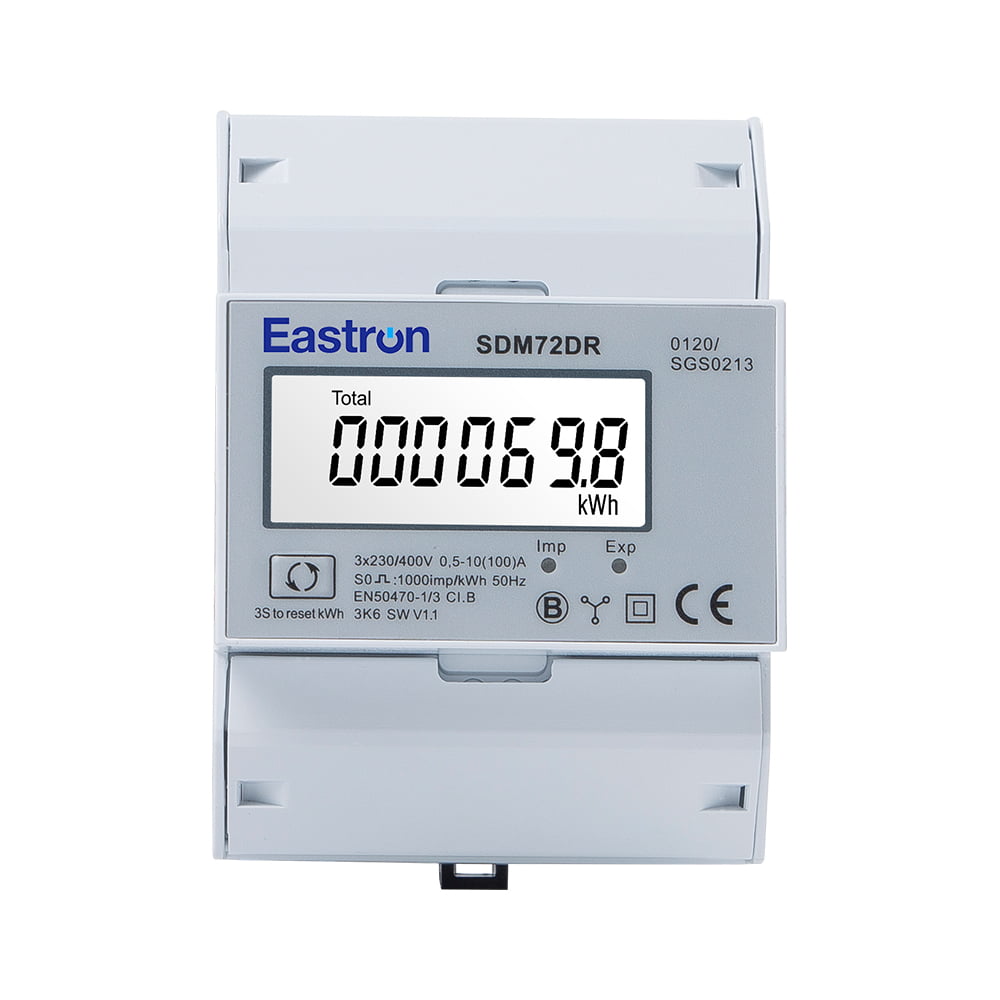

SDM72DR es un medidor electrónico de kWh trifásico de cuatro hilos con riel DIN reiniciable con salida de pulsos.
Se utiliza para medir aplicaciones comerciales e industriales trifásicas. La unidad mide y muestra la energía activa (kWh) y la potencia (W). Se proporciona una energía parcial reiniciable, por lo que el usuario puede verificar fácilmente el consumo de energía durante un período determinado.
Características electricas |
||
Tipo de medida |
RMS en sistema AC trifásico (3P N) |
|
Precisión de la medición |
Fuerza |
1% del rango máximo |
Energía activa |
IEC 62053-21 Clase 1.0/ EN50470-1/3 Clase B |
De entrada y salida |
|||
Corriente de entrada |
Tipo de TC |
TC primario |
1-9999A |
CT secundaria |
1A/5A |
||
Corriente mínima |
0.25A |
||
Corriente de arranque |
10mA |
||
Tipo directo
|
Corriente nominal |
10 A |
|
Corriente maxima |
100A |
||
Corriente mínima |
0.5A |
||
Corriente de arranque |
40mA |
||
Producción |
SDM72D / DR / BI |
Salida de pulsos para energía activa |
|
SDM72CT-D |
Salida de pulsos para energía activa |
