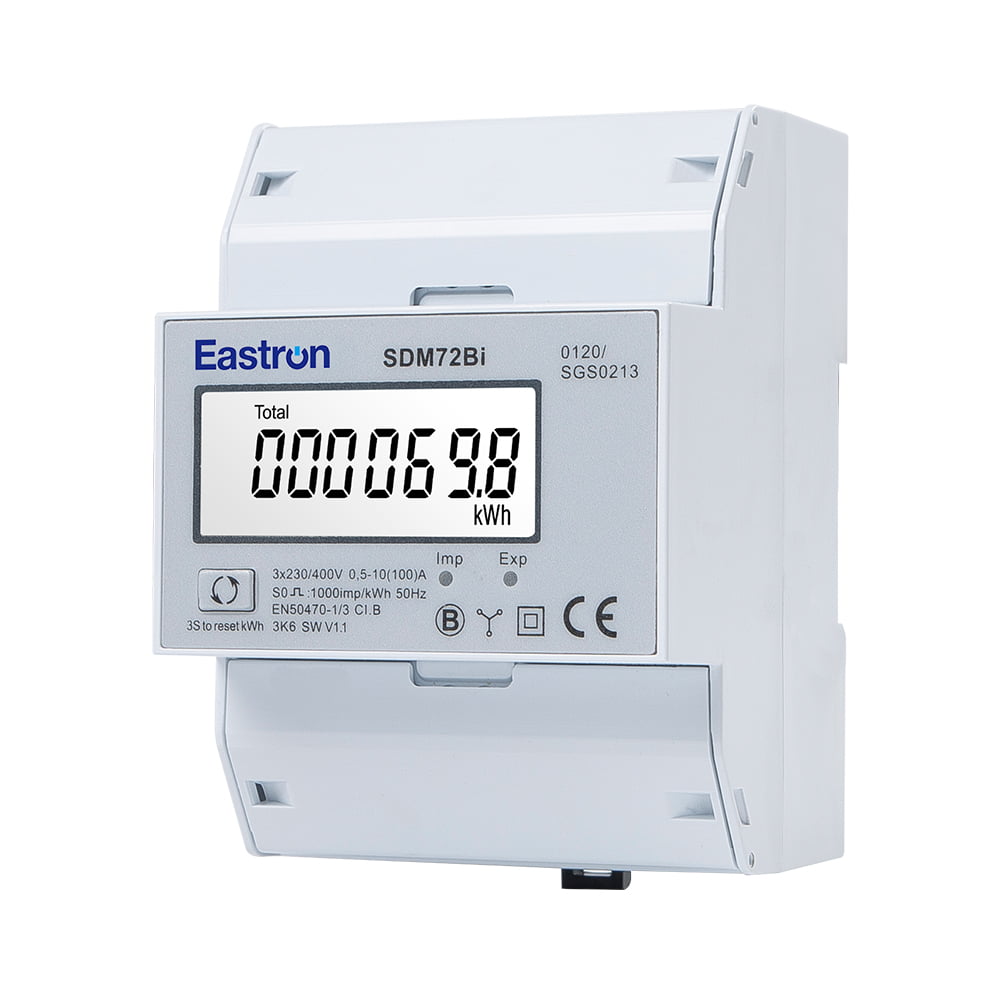

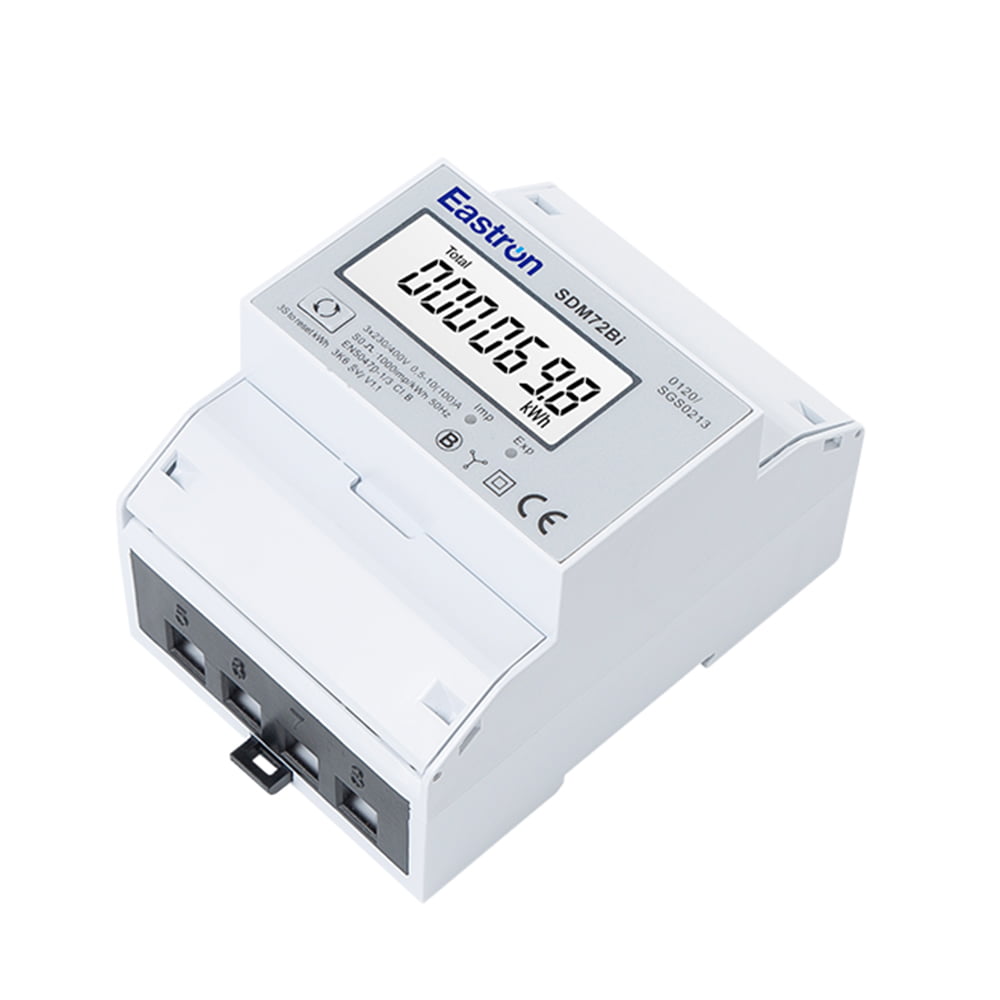

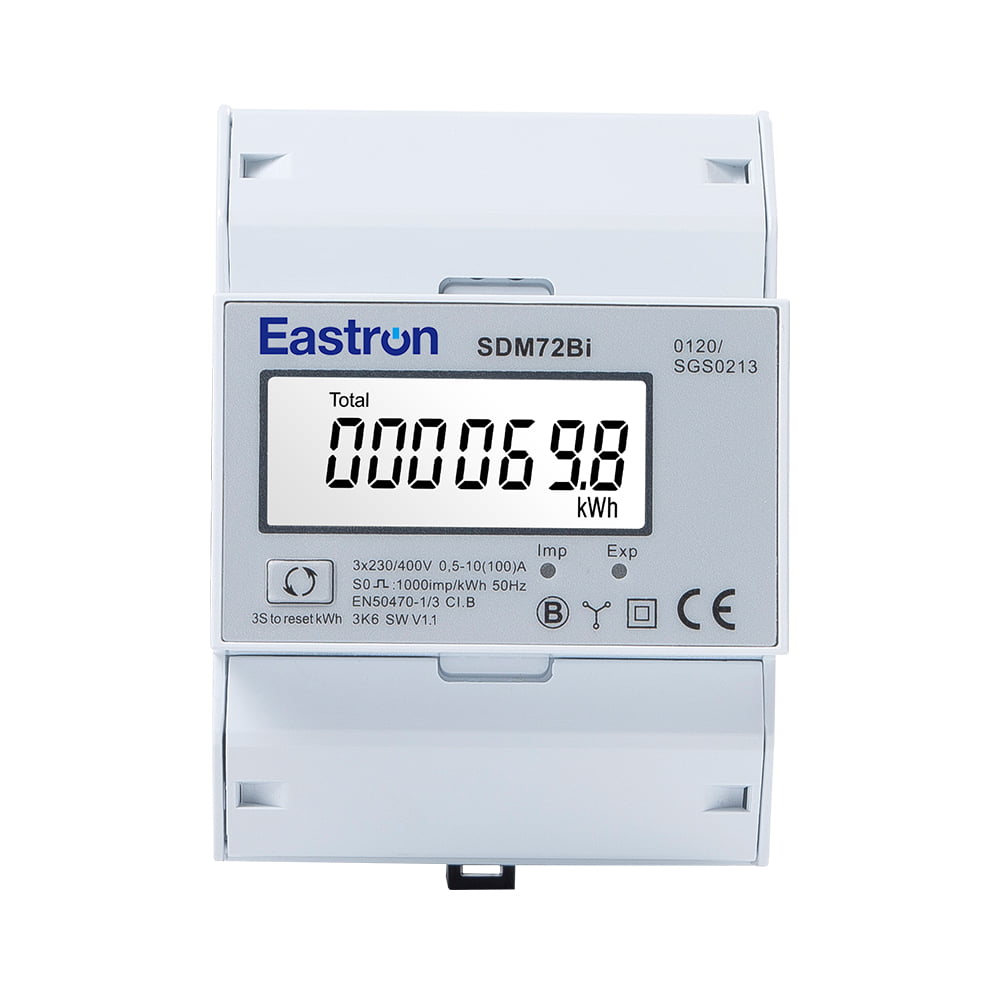

SD72BI es un medidor de kWh electrónico bidireccional reiniciable de carril DIN trifásico de cuatro cables con salida de pulso.
La unidad mide y muestra la energía activa (kWh) y la potencia (W) de importación y exportación. Se proporciona energía parcial reiniciable, por lo que el usuario puede verificar fácilmente la energía importada y la energía exportada durante un período determinado.
La medición bidireccional también la convirtió en una buena opción para sistemas solares fotovoltaicos.
Características eléctricas | ||
Tipo de Medición | RMS en sistema AC trifásico (3P N) | |
Precisión de medición | Fuerza | 1% del rango máximo |
Energía Activa | IEC 62053-21 Clase 1.0/EN50470-1/3 Clase B |
Entrada y salida | |||
Corriente de entrada | Tipo de TC | TC primaria | 1-9999A |
TC secundaria | 1A/5A | ||
Corriente mínima | 0.25A | ||
Corriente inicial | 10mA | ||
Tipo directo
| Corriente nominal | 10A | |
Corriente máxima | 100A | ||
Corriente mínima | 0.5A | ||
Corriente inicial | 40mA | ||
Producción | SDM72D/DR/BI | Salida de pulsos para energía activa | |
SDM72CT-D | Salida de pulsos para energía activa |
