Desarrollamos y producimos medidores de alto rendimiento, Analizadores de potencia, sensores de corriente, módulos de comunicación y sistemas de gestión. Fabricantes y fábricas de instrumentos inteligentes personalizados en china.
(86)573-83698881

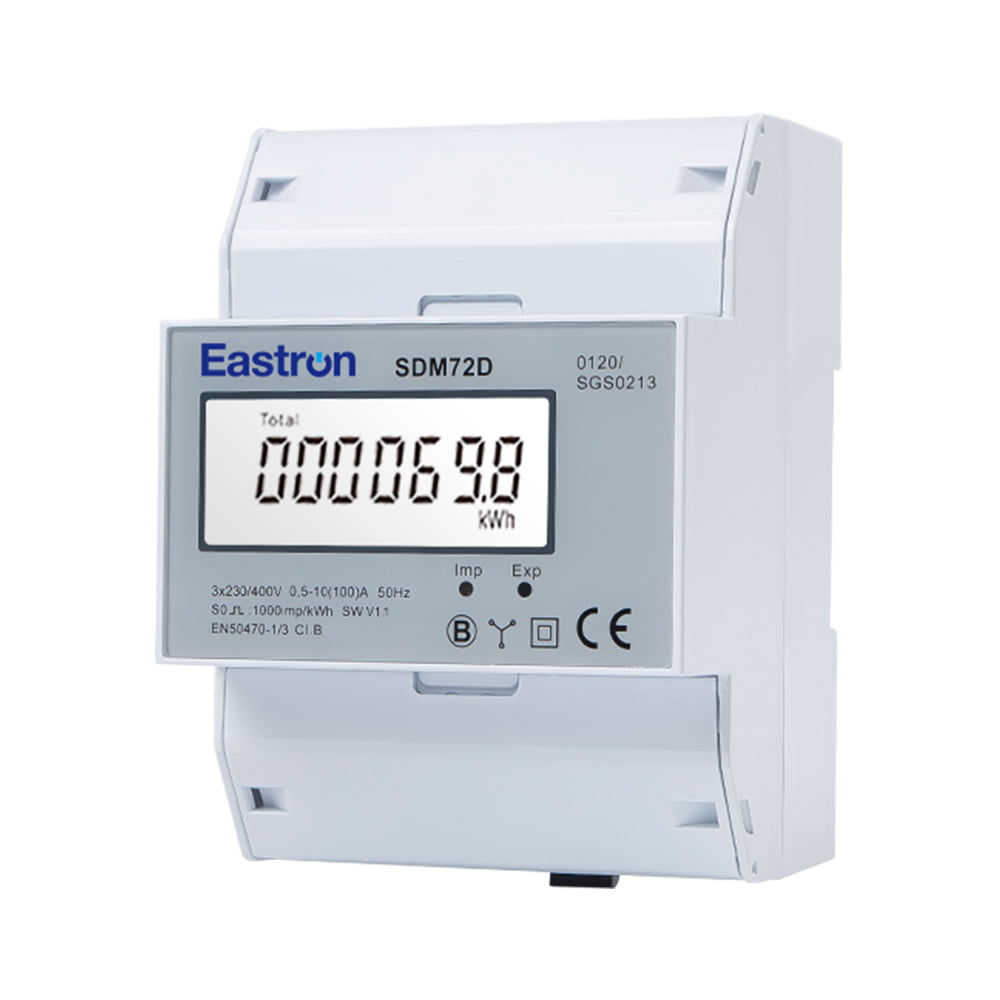

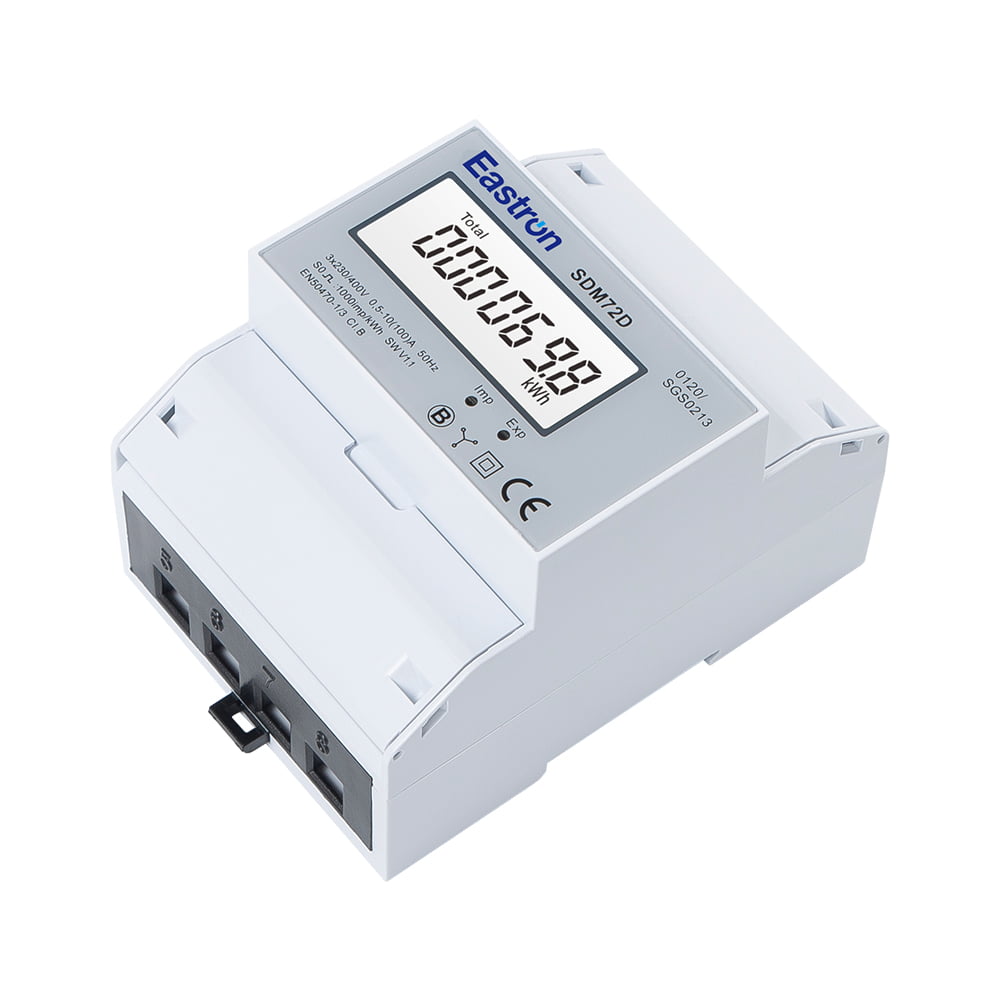

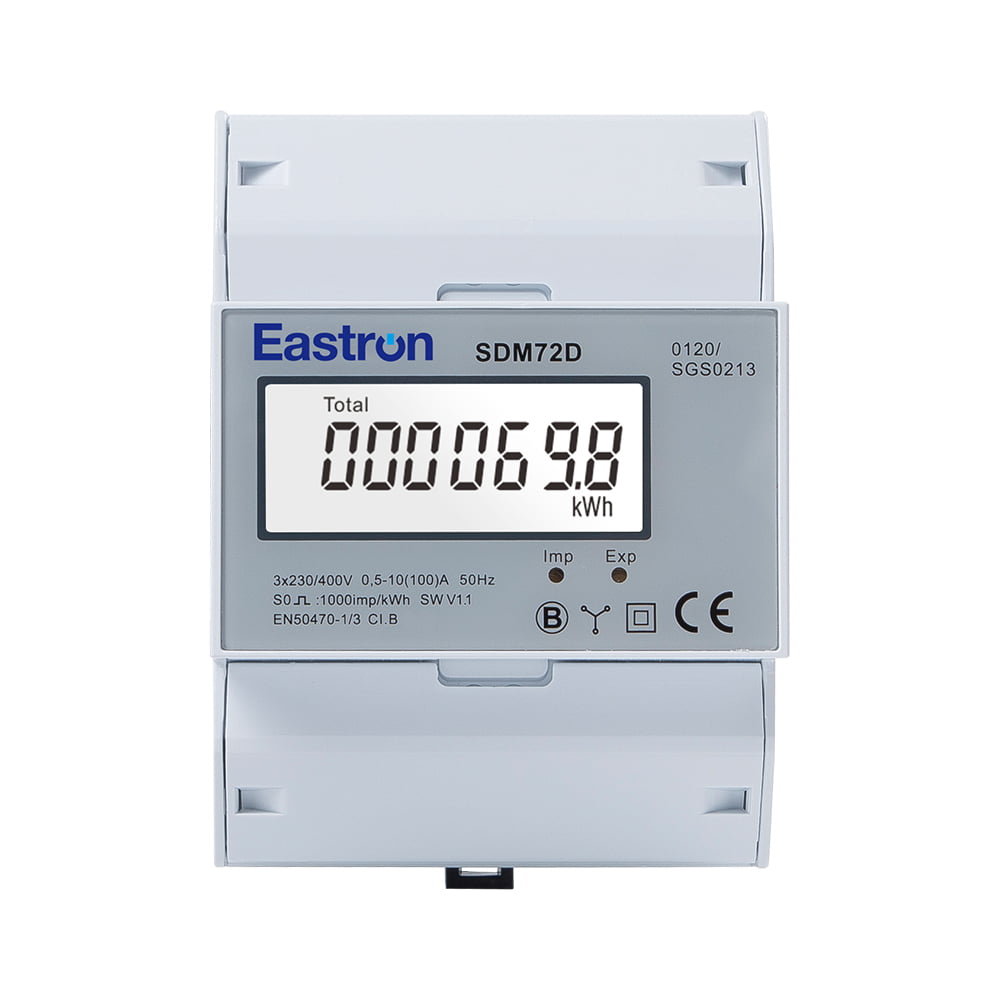

SDM72D es un medidor de kWh electrónico trifásico de carril DIN de tamaño de 4 módulos con función de salida de pulsos. El medidor admite conexión trifásica de 4 cables. Mide y muestra únicamente la energía activa (kWh). Con su perfecto rendimiento y alta precisión, el medidor se utiliza ampliamente en aplicaciones comerciales e industriales.
Características eléctricas | ||
Tipo de Medición | RMS en sistema AC trifásico (3P N) | |
Precisión de medición | Energía | IEC 62053-21 Clase 1.0/EN50470-1/3 Clase B |
Entrada y salida | |||
Corriente de entrada | Tipo de TC | TC primaria | 1-9999A |
TC secundaria | 1A/5A | ||
Corriente mínima | 0.25A | ||
Corriente inicial | 10mA | ||
Tipo directo
| Corriente nominal | 10A | |
Corriente máxima | 100A | ||
Corriente mínima | 0.5A | ||
Corriente inicial | 40mA | ||
Producción | SDM72D/DR/BI | Salida de pulsos para energía activa | |
SDM72CT-D | Salida de pulsos para energía activa |
Eastron Electronic Co., Ltd. headquartered in Jiaxing, China, near to Shanghai, Hangzhou, Jiangsu, is one of the leading high-tech manufacturer and supplier for electricity products and energy measurement solutions. Over the years, we have developed a rich range of electricity meters, sensors, communication modules and management systems.Custom Manufacturers of Medidor de kWh electrónico trifásico en carril Din con salida de pulsos.
Eastron keeps investing on the research and development of new technology and new products on electricity metering. We have energetic and innovative development teams in both China and UK,which help us keep the competitive edge in the market. The collaboration with leading universities and institutions also brings many cutting-edge technology into our products. To make sure the reliability of the products, Eastron has setup own professional lab that can performs EMC, LVD, accuracy and environment tests according to IEC, EN, GB, UL standards.
With more than 40 patented technologies on software, embedded software and hardware, Eastron has been awarded with “High-tech Enterprise” and “High-tech R&D Centre of Electricity Application”. Eastron strictly follows ISO 9001 Quality management system, and the production is approved by SGS according to MID standard.Suppliers and Factory of Medidor de kWh electrónico trifásico en carril Din con salida de pulsos
Creating value to and growing up with our partners is our mission. Eastron provides not only the high quality and innovative products, but also first-class service to all our customers. We have professional team for technical supports and aftersales services. We have provided products and services to more than 50 countries in Europe, Asia-Pacific, America, Middle East, and Africa. We pride ourselves on having long long-term partners globally that allows us to further our growth and bring our innovation and quality to the market.
