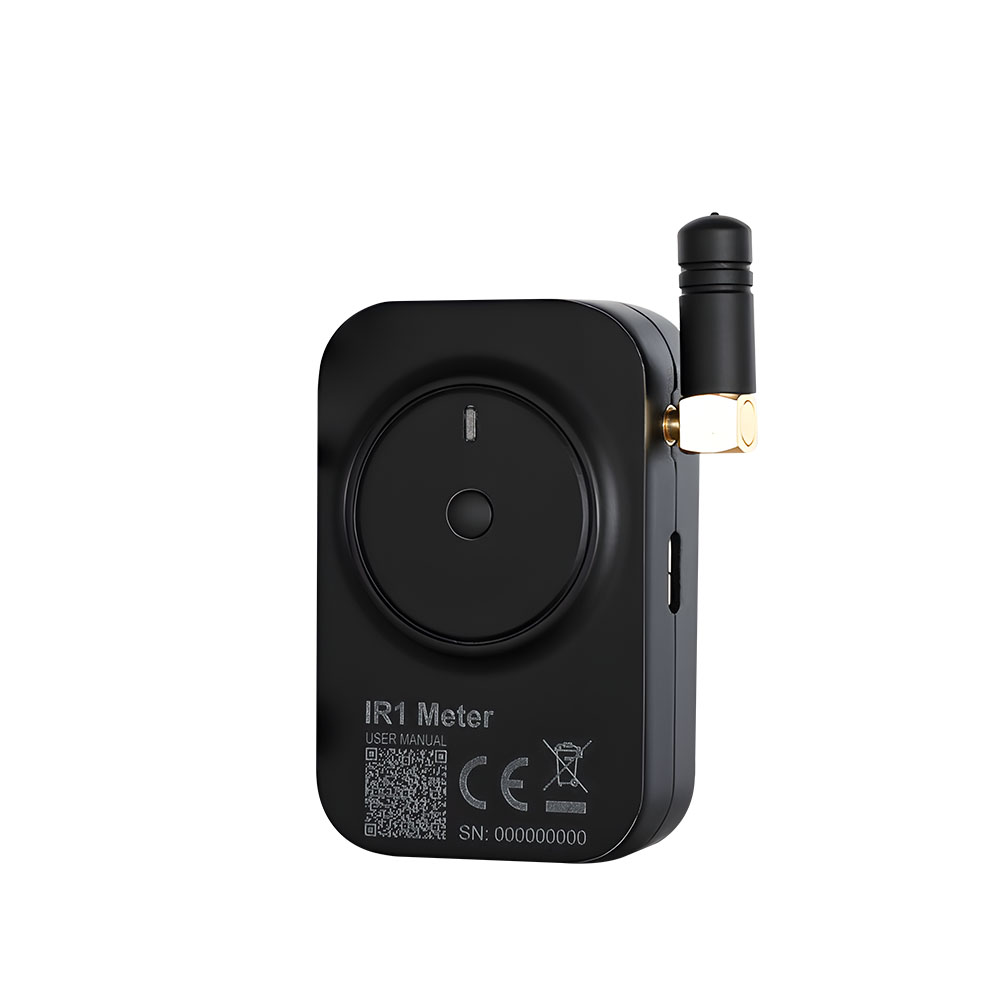

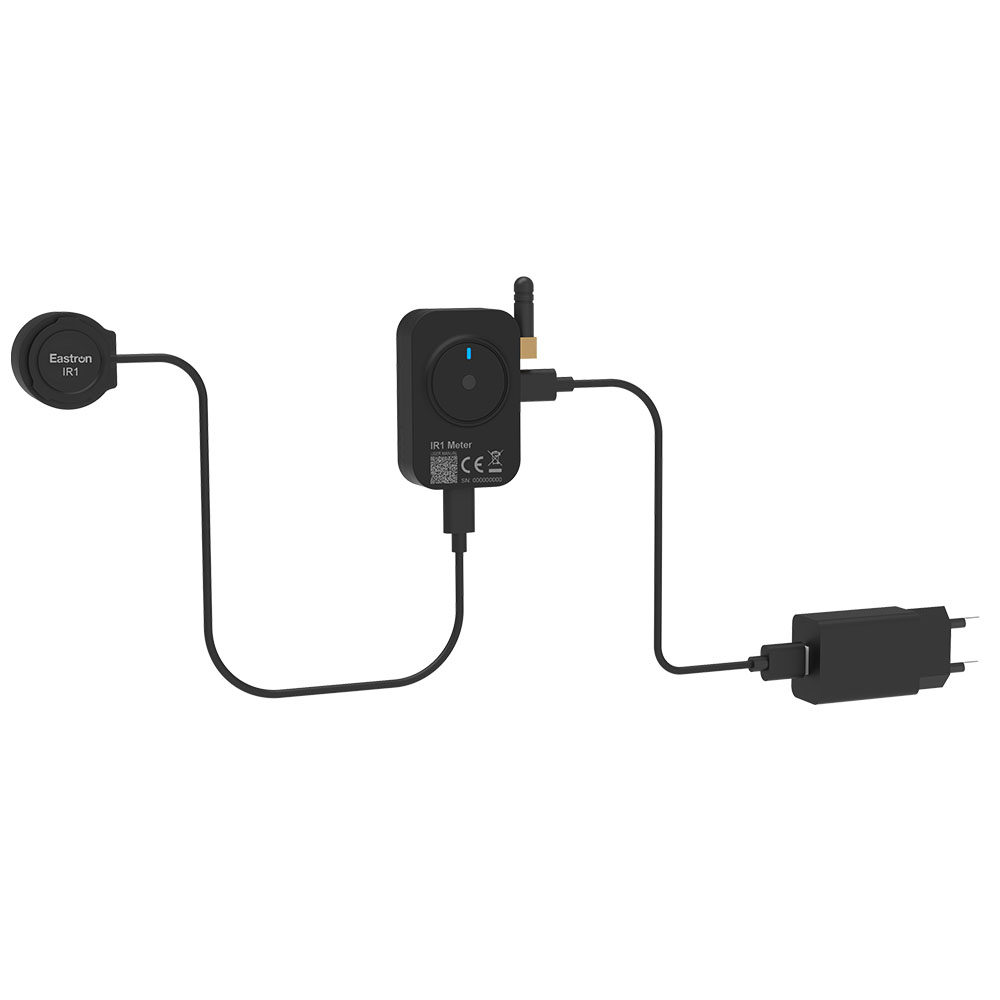

IR1 Meter es un rastreador de energía diseñado para monitorear el consumo de electricidad del hogar. Es compatible con la mayoría de los medidores inteligentes modernos de Europa y adopta tecnología de transmisión de luz infrarroja, que se puede conectar al puerto de comunicación por infrarrojos de un medidor inteligente mediante adsorción magnética. No es necesario ningún contacto de cables durante la instalación; esto simplifica enormemente el proceso de instalación y evita eficazmente el riesgo de conexión en caliente del puerto. El dispositivo es seguro y fácil de operar, lo que garantiza un uso sin preocupaciones.
A través de su interfaz de infrarrojos, el medidor IR1 lee de forma rápida y precisa datos clave de electricidad del medidor, incluido el consumo de electricidad acumulativo, el voltaje, la corriente y la potencia en tiempo real. Luego transmite estos datos de forma inalámbrica a dispositivos WiFi locales, lo que permite a los usuarios monitorear su uso de electricidad en cualquier momento y en cualquier lugar.

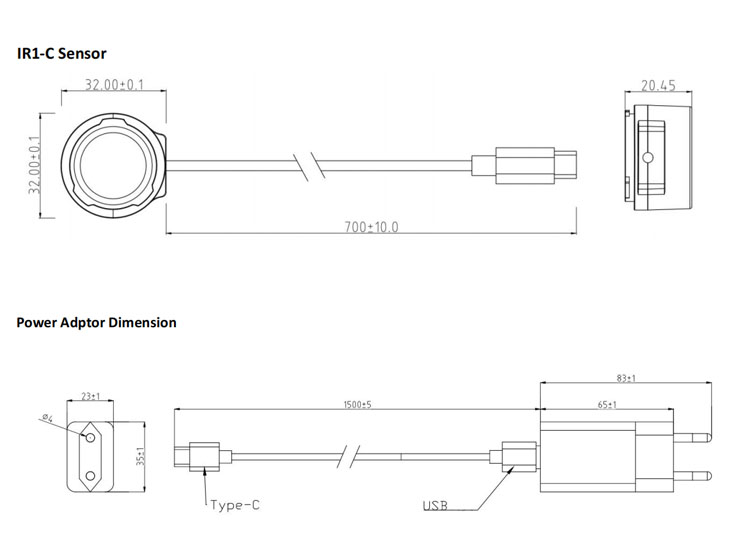

| Fuente de alimentación externa | |
| Conexión | USB-A macho a USB-C macho |
| voltaje | 5V |
| Actual | 2A |
| Longitud del cable | 1,5 m |
| Características técnicas | |
| Consumo de energía | <1,5 W (valor típico 5 V/260 mA) |
| Medición | voltaje, Current, Power, Power Factor, Frequency, Energy |
| Metros aplicables | Monofásico y Trifásico |
| Parámetros de infrarrojos | |
| Compatibilidad de infrarrojos | Compatible con protocolo SML |
| Conexión del puerto de infrarrojos | Montaje magnético |
| Tasa de renovación de IR | Determinado por el medidor medido, normalmente una vez por segundo. |
| API locales | si |
| Se requiere puente/centro | No |
| Comunicaciones Wi-Fi | |
| Protocolo | HTTP/modbusTCP |
| Tipo de datos | Json/modbusTCP |
| Banda de radiofrecuencia | 2,4G |
| Máx. Potencia de radiofrecuencia | 20dBm |
| Protocolo wifi | 802.11 b/g/n |
| Alcance Wi-Fi | Hasta 30 m/100 pies en interiores y 50 m/160 pies en exteriores (Depende de las condiciones locales) |
| Protocolo BLE | Blé 4.2 |
