| Características eléctricas | ||
| Tipo de medición | RMS incluyendo armónicos en el sistema de CA trifásico (3p, 3p n) | |
| Precisión de la medición | Fuerza | ± 1% |
| Energía activa | ± 1%IEC 62053-21 Clase 1 | |
| Energía reactiva | ± 2% | |
| Frecuencia | ± 0.2% | |
| Actual | ± 0.5% (4a ~ 120a) ± 1% (1a ~ 4a) ± 3% (0.06a ~ 1a) | |
| Voltaje | ± 0.5% | |
| Factor de potencia | ± 0.1 | |
| Tasa de actualización de datos | Potencia activa: 50 ms (rs485), 100 ms (wi-fi) | |
| Voltaje de entrada
| Naciones Unidas | 3*230V (L-N)/400V (L-L) |
| Rango de voltaje de trabajo | 90 a 277 V AC L-N 156 a 480 V AC L-L | |
| Rango de frecuencia | 50/60 Hz | |
| Comunicaciones rs485 | |
| Protocoloo | Modbus RTU |
| Dirección de comunicación | 1 ~ 247 |
| Modo de transmisión | Medio dúplex |
| Tipo de datos | Punto flotante |
| Distancia de transmisión | 1000m máximo |
| Velocidad de transmisión | 2400bps ~ 115200bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Parada | 1 o 2 |
| Tiempo de respuesta | ＜ 50 ms |
| Comunicaciones Wi-Fi | |
| Protocol | Modbus TCP |
| Tipo de datos | Punto flotante |
| Banda de rf | 2.4 GHz a 2.5 GHz |
| Max. Potencia de RF | <20 dbm |
| Protocolo Wi-Fi | 802.11 b/g/n |
| Rango de Wi-Fi | Hasta 30m / 100 pies en interiores y 50m / 160 pies al aire libre (Depende de las condiciones locales) |

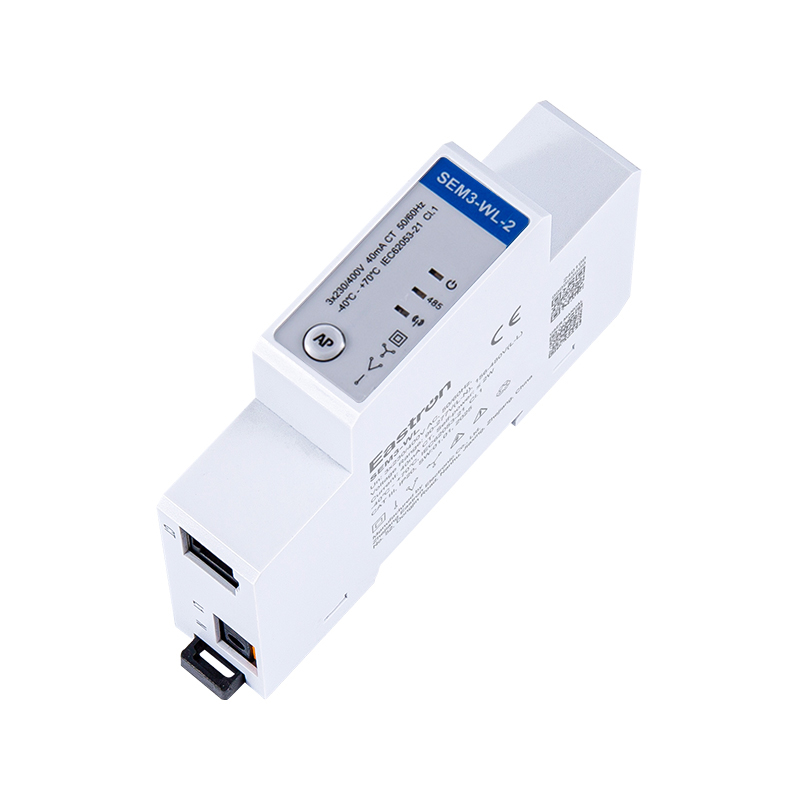

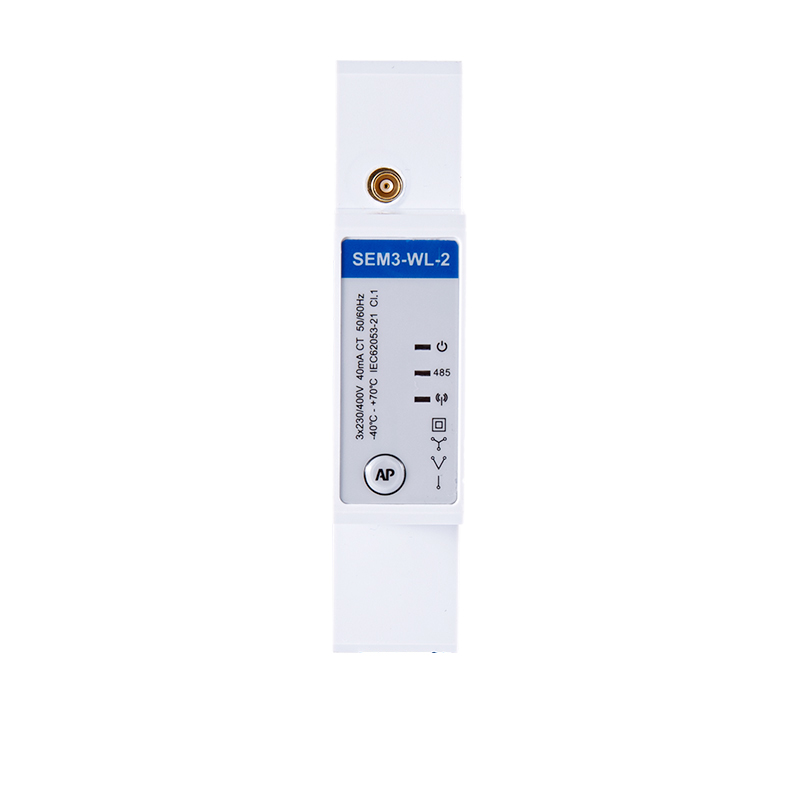

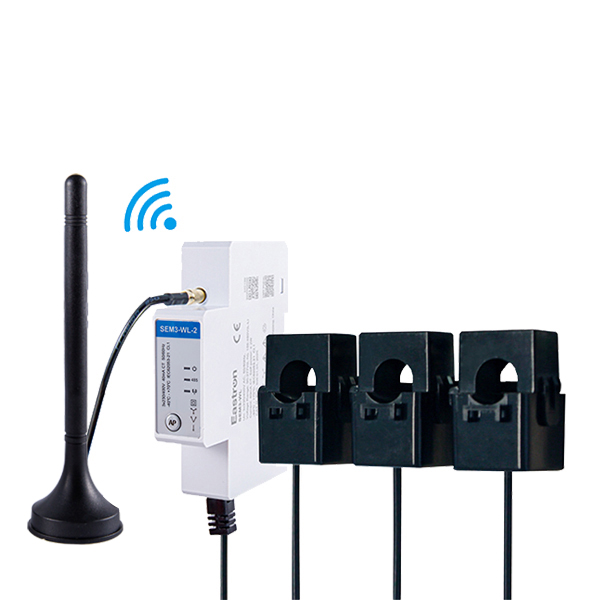

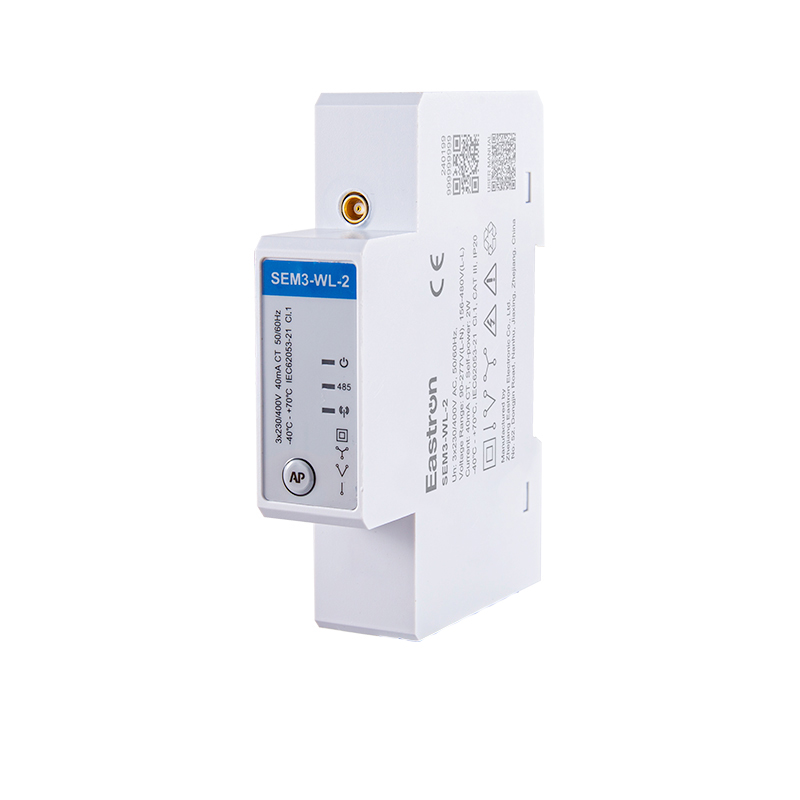

Eastron Electronic Co., Ltd. headquartered in Jiaxing, China, near to Shanghai, Hangzhou, Jiangsu, is one of the leading high-tech manufacturer and supplier for electricity products and energy measurement solutions. Over the years, we have developed a rich range of electricity meters, sensors, communication modules and management systems.Custom Manufacturers of CT Tipo de triple fase DIN Rail Wifi Medidor de energía para medición fotovoltaica.
Eastron keeps investing on the research and development of new technology and new products on electricity metering. We have energetic and innovative development teams in both China and UK,which help us keep the competitive edge in the market. The collaboration with leading universities and institutions also brings many cutting-edge technology into our products. To make sure the reliability of the products, Eastron has setup own professional lab that can performs EMC, LVD, accuracy and environment tests according to IEC, EN, GB, UL standards.
With more than 40 patented technologies on software, embedded software and hardware, Eastron has been awarded with “High-tech Enterprise” and “High-tech R&D Centre of Electricity Application”. Eastron strictly follows ISO 9001 Quality management system, and the production is approved by SGS according to MID standard.Suppliers and Factory of CT Tipo de triple fase DIN Rail Wifi Medidor de energía para medición fotovoltaica
Creating value to and growing up with our partners is our mission. Eastron provides not only the high quality and innovative products, but also first-class service to all our customers. We have professional team for technical supports and aftersales services. We have provided products and services to more than 50 countries in Europe, Asia-Pacific, America, Middle East, and Africa. We pride ourselves on having long long-term partners globally that allows us to further our growth and bring our innovation and quality to the market.
Desarrollamos y producimos medidores de alto rendimiento, Analizadores de potencia, sensores de corriente, módulos de comunicación y sistemas de gestión. Fabricantes y fábricas de instrumentos inteligentes personalizados en china.
