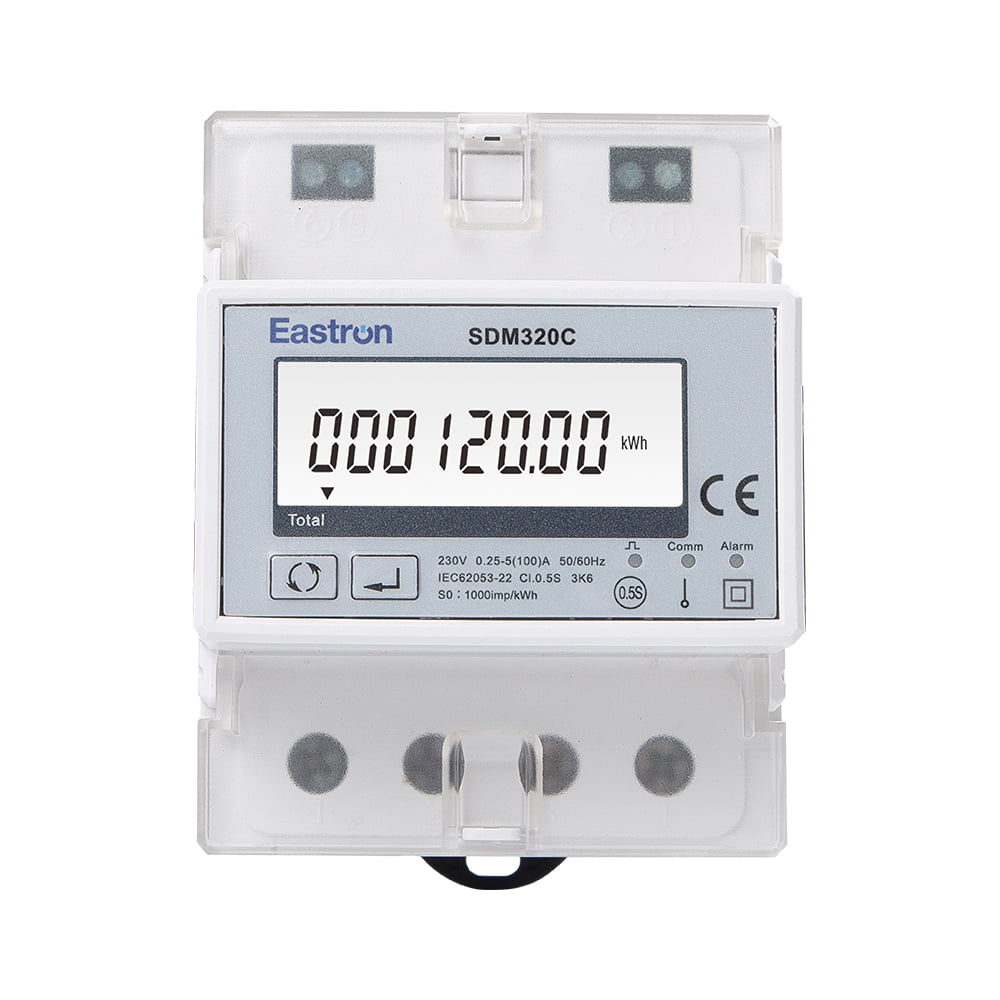

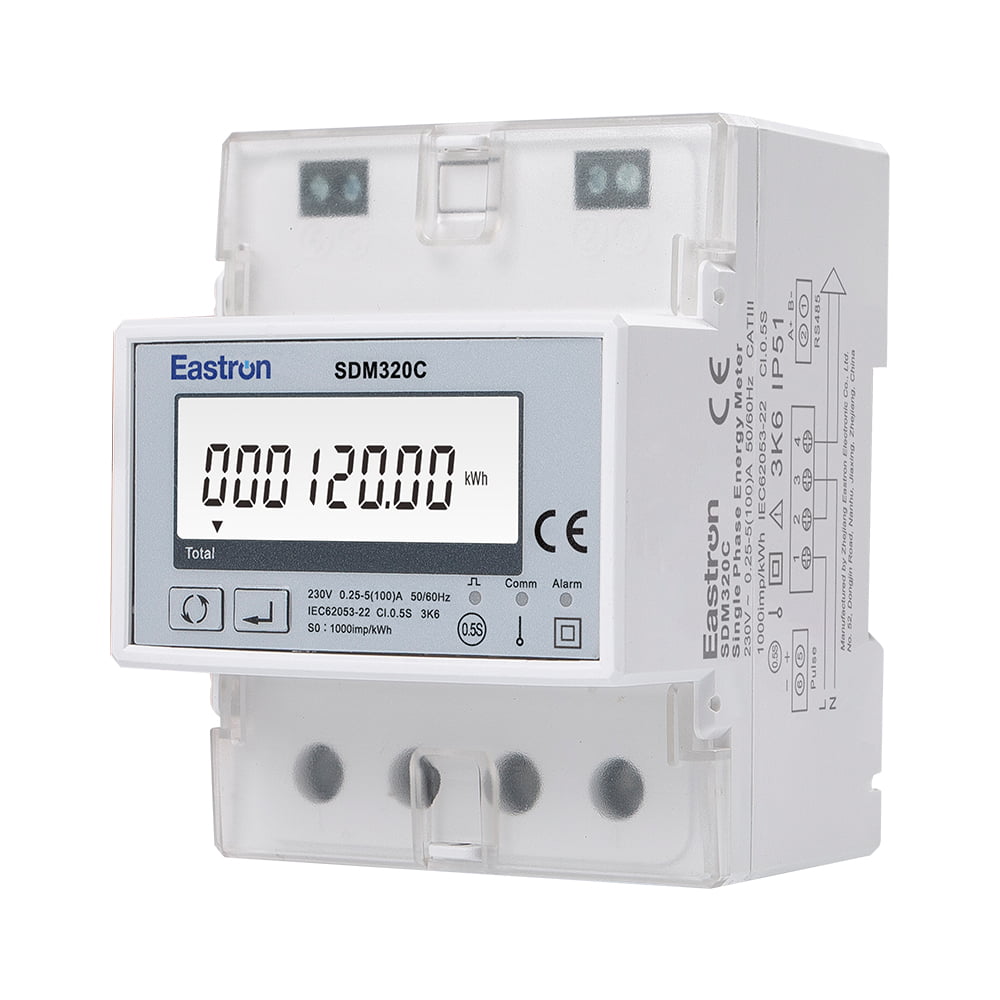

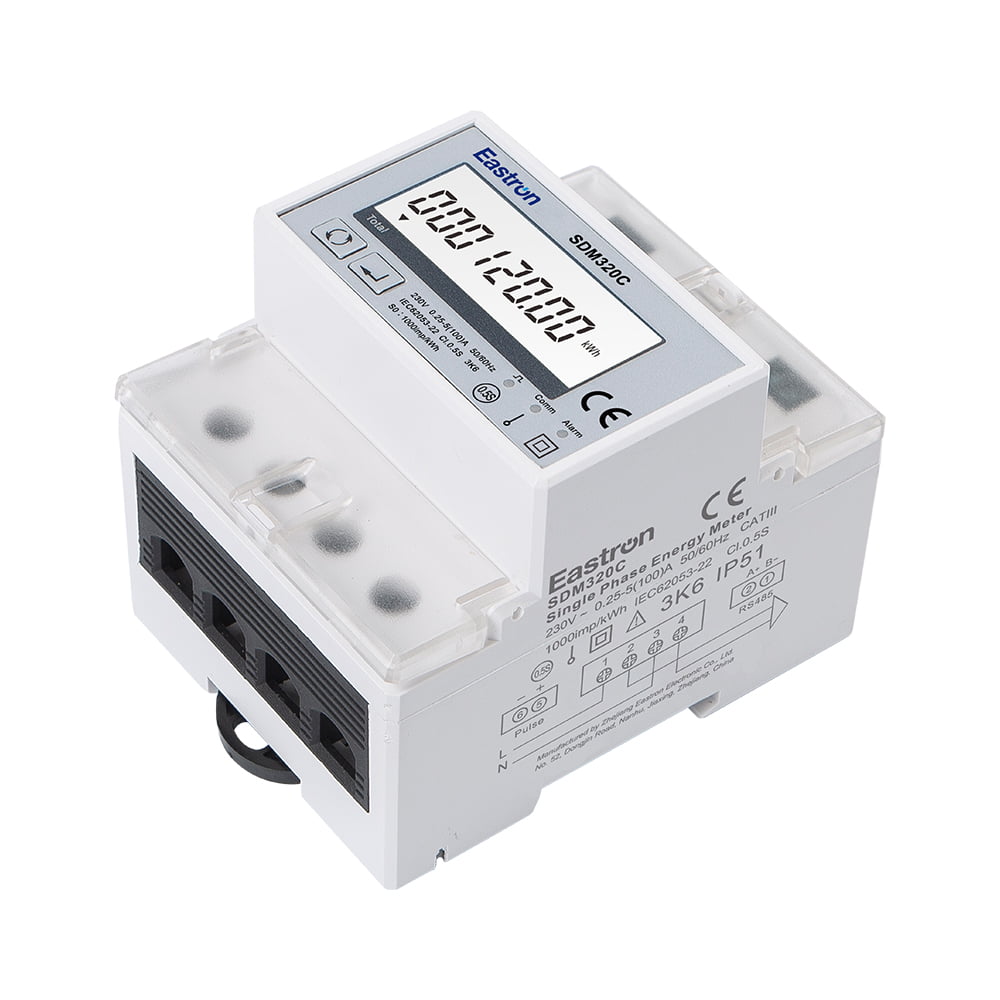

SDM320C es un medidor de energía multifunción monofásico con relé incorporado y control remoto RS485.
Mide todos los parámetros eléctricos importantes, como energía activa (kWh), corriente (A), voltaje (V), frecuencia (Hz), factor de potencia, demanda de energía, importación y exportación de energía, etc. Cumple totalmente con el nivel 0,5S. requisitos técnicos de precisión del estándar IEC62053-22.
Con un relé incorporado en el interior, el medidor se puede controlar de forma remota para encender o apagar el suministro eléctrico a través de RS485..
| Características eléctricas | ||
| Tipo de medida | RMS incluido en el sistema de CA monofásico | |
| Precisión de medición | Fuerza | 1% |
| Energía Activa | IEC 62053-22 Clase 0.5S, IEC 62053-21 Clase 1.0 | |
| Energía reactiva | IEC62053-23 Clase 2, IEC 61557-12 Clase 2 | |
| Frecuencia | ±0,2% | |
| Actual | ±0,5% | |
| Voltaje | ±0,5% | |
| Factor de potencia | ±0,01 | |
| Entrada y salida | |||
| Aporte | Actual | Corriente nominal | 5A |
| Corriente máxima | 100A | ||
| Corriente mínima | 0.25A | ||
| Corriente inicial | 40mA | ||
| Voltaje | Tensión nominal (Un) | 230V | |
| Tensión operativa | 80% ~ 120% de la ONU | ||
| Producción | SDM320C | Salida de pulsos RS485 Modbus | |
| SDM320Y | Salida de pulsos RS485 Modbus | ||
| SDM320Y-RF | Salida de pulsos RF | ||
| SDM320C-DI | Salida de pulsos RS485 Modbus Entrada digital | ||
| Comunicaciones Modbus RS485 | |
| Dirección de comunicación | 1~247 |
| Distancia de transmisión | 1000 m máximo |
| Velocidad de baudios | 1200bps~9600bps |
| Paridad | Ninguno (predeterminado), impar, par |
| bits de parada | 1 o 2 |
