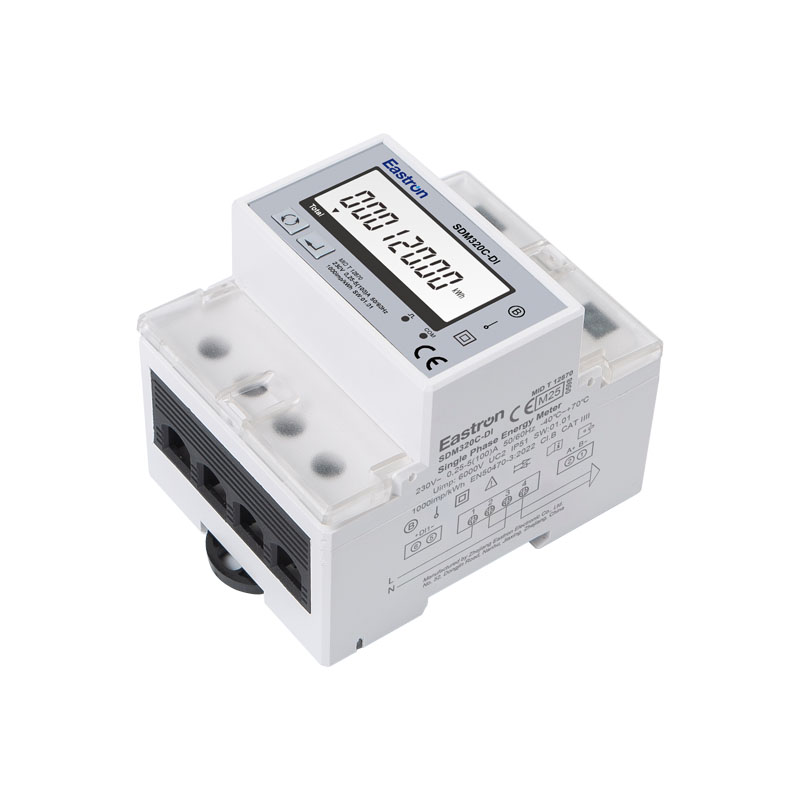

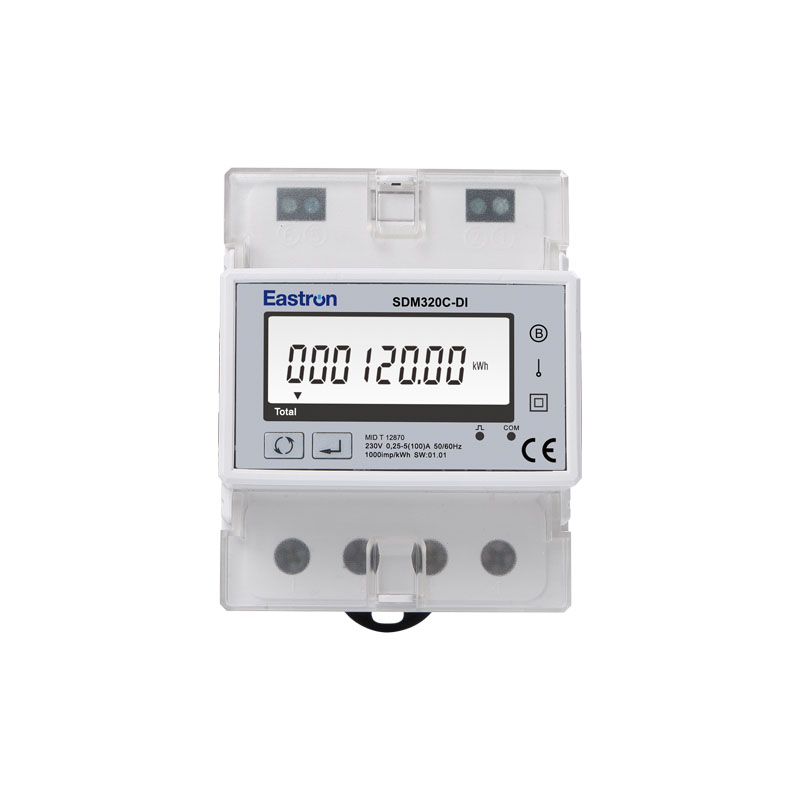

SDM320C-DI mide y muestra las características de monofásico de dos cables (1p2w), incluido voltaje, frecuencia, corriente, potencia, energía activa y reactiva, importada o exportada. La energía se mide en términos de kWh, kVArh. La corriente de demanda máxima se puede medir durante períodos preestablecidos de hasta 60 minutos.
El medidor es Max. 100A conectado directamente y no necesita conectarse con transformadores de corriente externos (CT).
Hay un puerto de comunicación RS485 disponible en el medidor para transmisión remota de datos.
| Características eléctricas | ||
| Tipo de medida | RMS incluido en el sistema de CA monofásico | |
| Precisión de medición | poder | ±1% |
| Energía Activa | Clase 1 IEC 62053-21 Clase B EN50470-3: 2022 | |
| energia reactiva | Clase 2IEC62053-23 | |
| Frecuencia | ±0,2% | |
| real | ±0,5% | |
| tensión | ±0,5% | |
| Factor de poder | ±0,01 | |
| Entrada y salida | |||
| Entrada | real | Corriente nominal | 5A |
| Corriente máxima | 100A | ||
| Corriente mínima | 0.25A | ||
| corriente inicial | 20mA | ||
| tensión | Tensión nominal (Un) | 230V | |
| Rango de voltaje | 100 - 277 VCA (LN) | ||
| Salida | SDM320C | Salida de pulsos RS485 Modbus | |
| SDM320Y | Salida de pulsos RS485 Modbus | ||
| SDM320Y-RF | Salida de pulsos RF | ||
| SDM320C-DI | Salida de pulsos RS485 Entrada digital Modbus | ||
| Comunicaciones Modbus RS485 | |
| Dirección de comunicación | 1~247 |
| Distancia de transmisión | 1000 m máximo |
| Velocidad de baudios | 1200bps~9600bps |
| paridad | Ninguno (predeterminado), impar, par |
| bits de parada | 1 o 2 |
