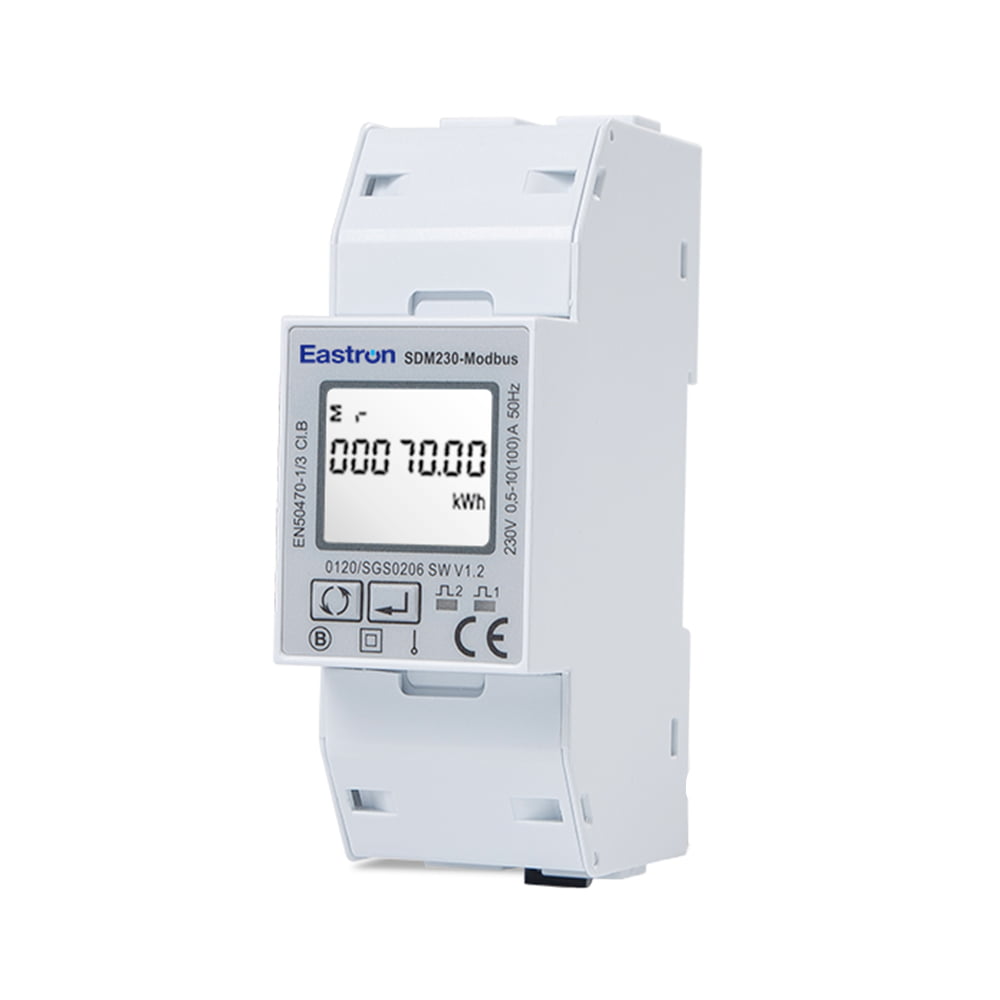

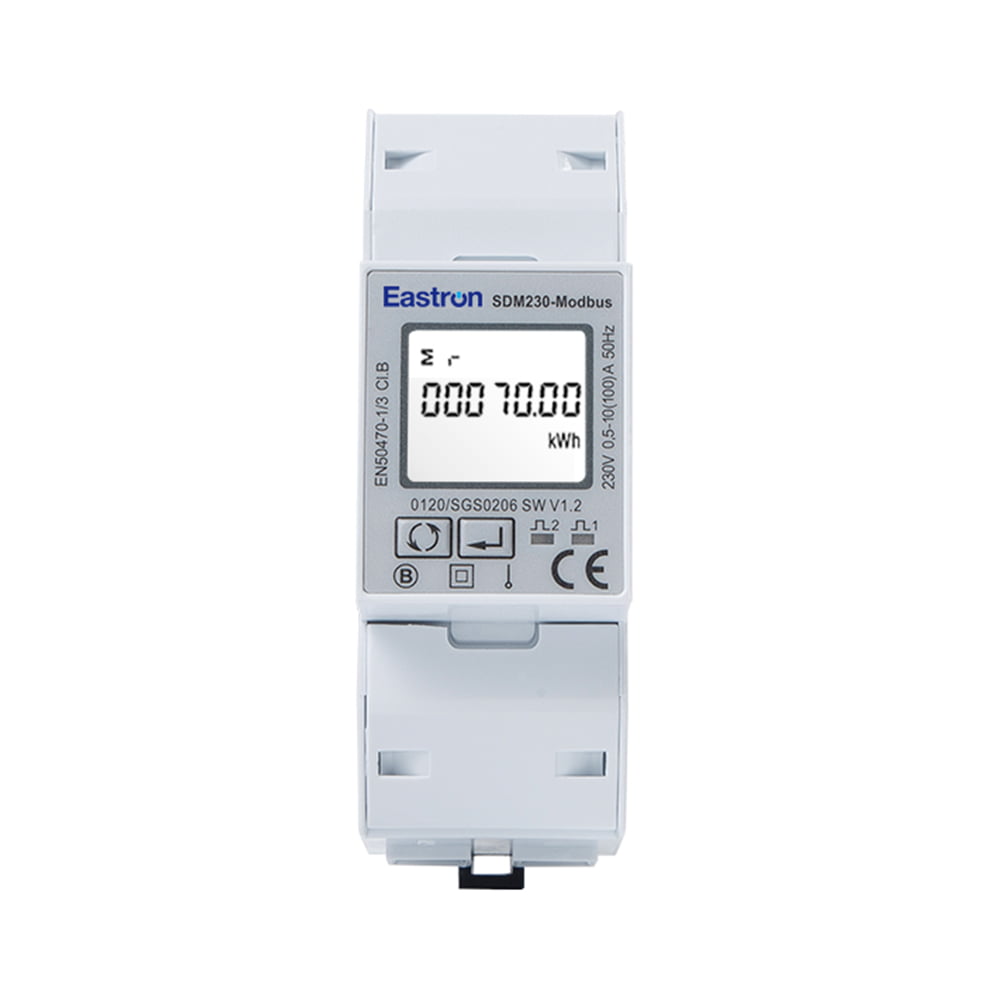

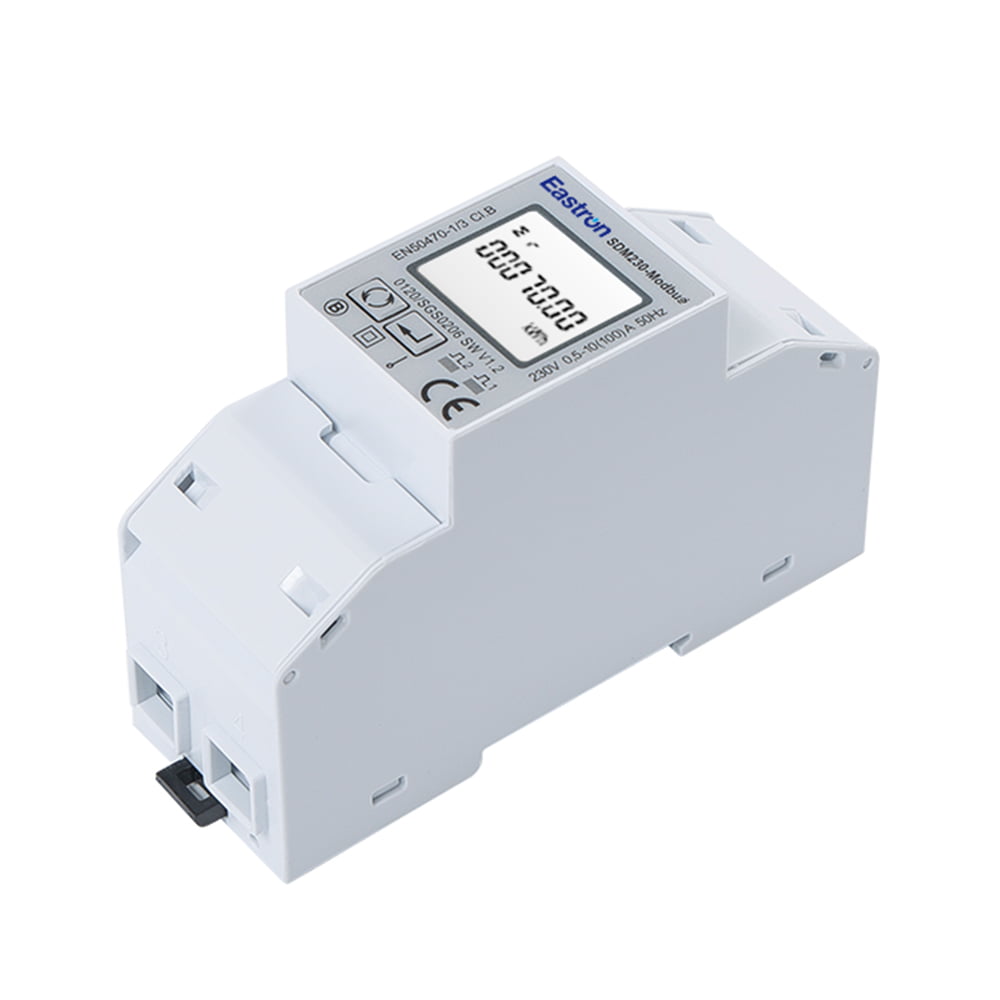

El SDM230-Modbus es un Medidor de Energía ETL Monofásico Multifuncional RS485 Din Riel Modbus. Mide energía activa, energía reactiva, corriente, tensión, potencia, factor de potencia, frecuencia, etc. Las unidades soportan máxima de 65A de conexión directa, ahorrando el coste y evitando la molestia de conectar TC externos. Se proporcionan dos salidas de pulsos y 1 puerto de comunicación (RS485 Modbus/DLT645) para la monitorización y configuración remotas, adecuadas para monitorizar el consumo de energía en aplicaciones residenciales, fotovoltaicas solares, sistemas de carga de vehículos eléctricos, industriales y de servicios públicos.
La unidad cuenta con la certificación ETL de Intertek.
Características electricas |
||
Tipo de medida |
RMS en sistema de CA monofásico (1P N) |
|
Precisión de la medición |
Fuerza |
1% del rango máximo |
Energía activa |
IEC 62053-21 Clase 1.0/ EN50470-1/3 Clase B |
|
Energía reactiva |
IEC62053-23 Clase 2, IEC 61557-12 Clase 2 |
|
Frecuencia |
0,2% de frecuencia media |
|
Actual |
0,5% del rango máximo |
|
Voltaje |
0,5% del rango máximo |
|
Factor de potencia |
1% de la unidad (0.01) |
De entrada y salida |
|||
Aporte |
Actual
|
Corriente nominal (Ib/Iref) |
10 A |
Corriente máxima (Imáx.) |
100A |
||
Corriente mínima (Imin.) |
0.5A |
||
Corriente de arranque |
40mA |
||
Voltaje |
Tensión nominal (Un) |
230V |
|
Voltaje operativo |
80%~120% de la ONU |
||
Producción |
SDM230-Pulso |
2 Salida de pulsos para imp/exp. energía |
|
SDM230-Modbus |
2 salida de pulso RS485 Modbus |
||
SDM230-Mbus |
Salida de 2 pulsos M-bus EN13757 |
||
SDM230-2T |
2 Salida de pulsos RS485 Modbus 2 Tarifas (fuente de alimentación dual) |
||
SDM230M-DI |
2 Salida de pulso RS485 Modbus Entrada digital |
||
SDM230-Lora |
Salida de 2 pulsos LoraWAN |
Comunicaciones Modbus RS485 |
|
Dirección de comunicación |
1~247 |
Distancia de transmisión |
1000 m máximo |
Velocidad de transmisión |
1200bps~38400bps |
Paridad |
Ninguno (predeterminado), Impar, Par |
Bits de parada |
1 o 2 |
Tiempo de respuesta |
<100mS |
Comunicaciones M-Bus EN13757-3 |
|
Dirección de comunicación |
1~250 |
Distancia de transmisión |
1000 m máximo |
Tasa de baudios |
300bps~9600bps |
Paridad |
Ninguno (predeterminado), Impar, Par |
Bits de parada |
1 o 2 |
