Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN

  • Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN
  • Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN
  • Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN
  • Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN
  • Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN
  • Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN

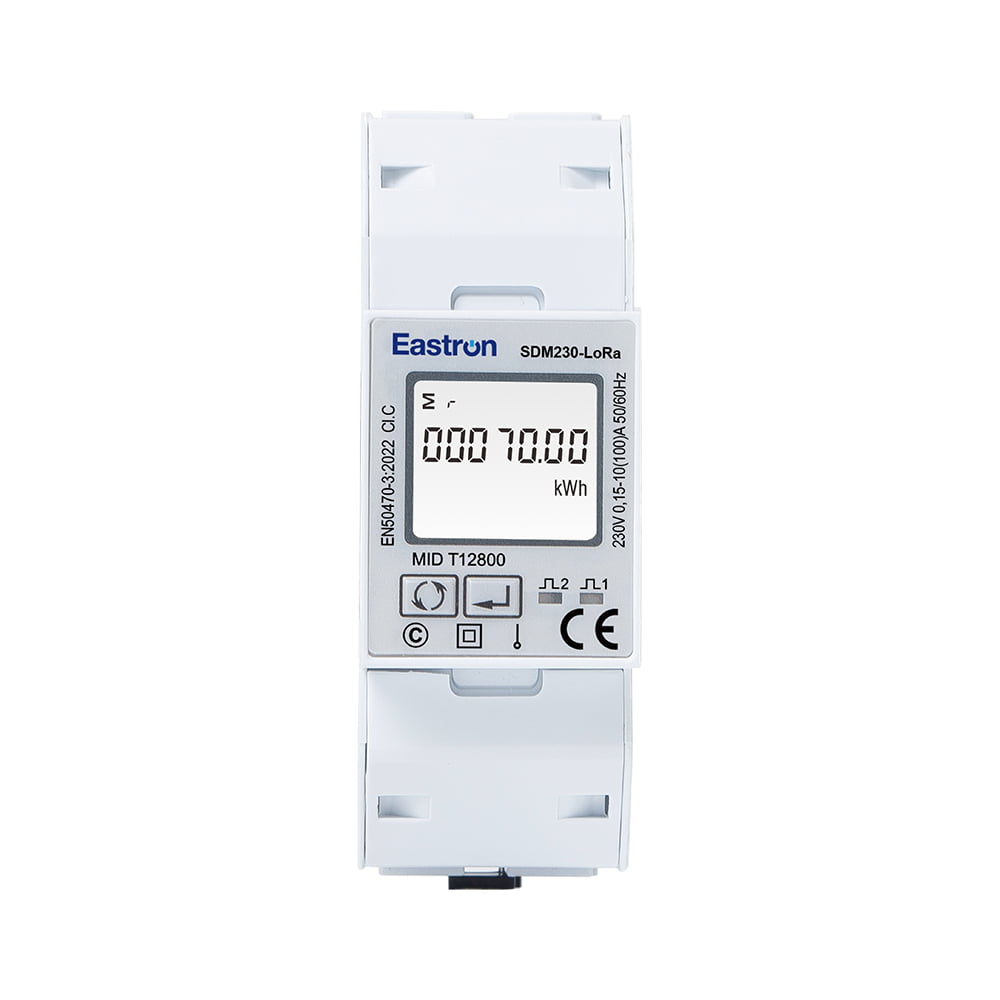

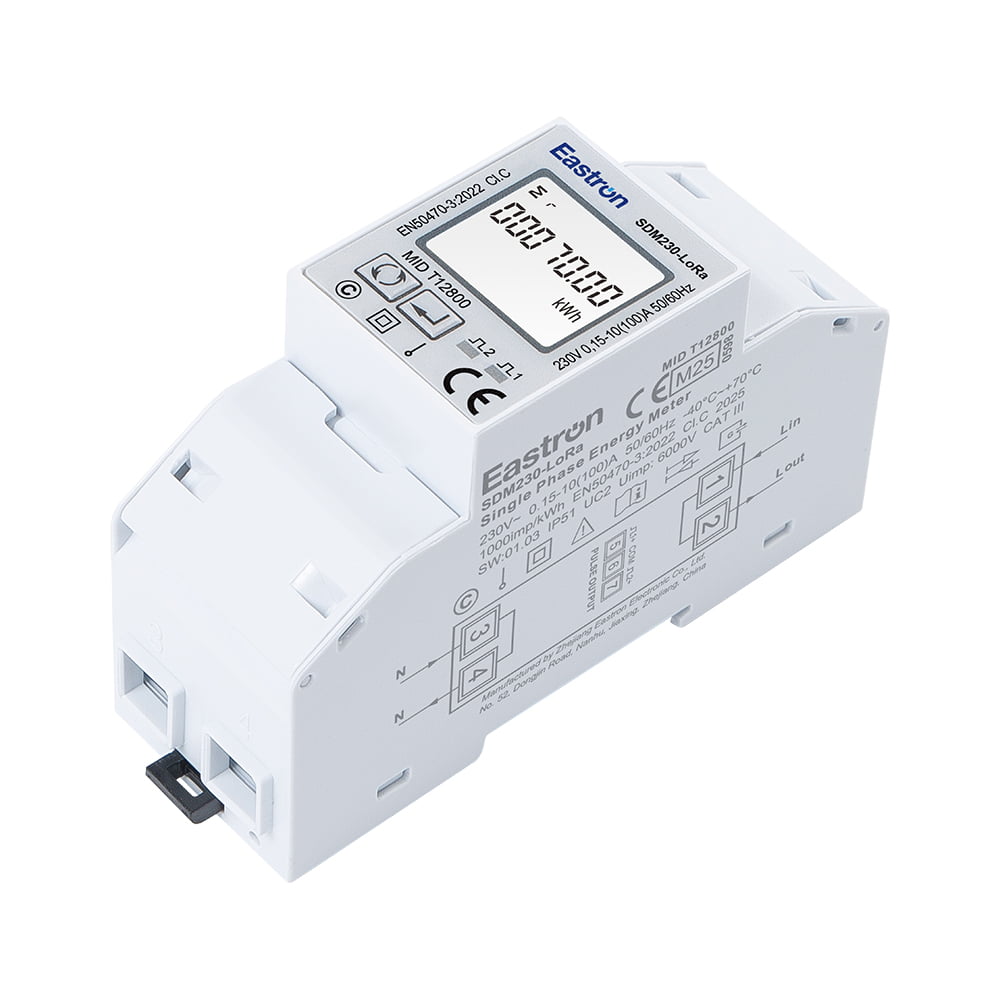

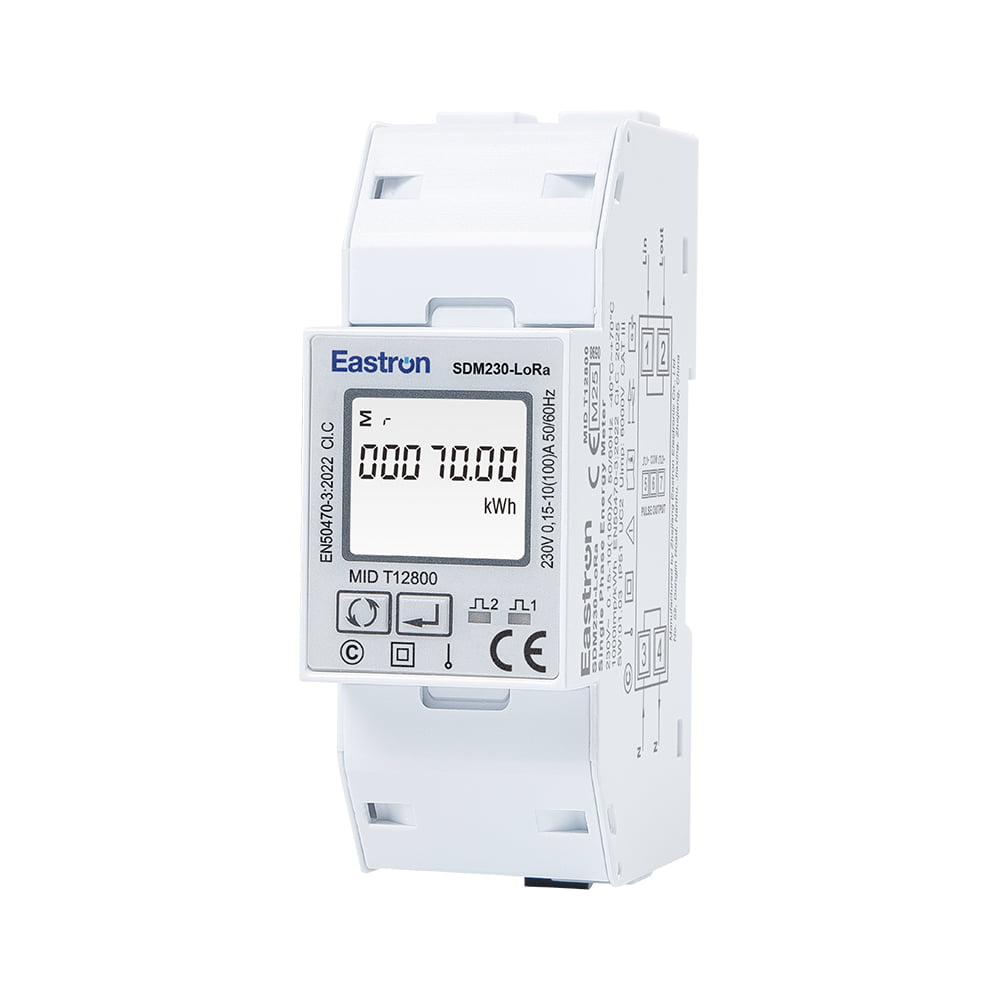

SDM230-LoRa

Medidor de Energía ETL Monofásico Multifunción de Riel Din LoraWAN

  • Multimedida: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD con retroiluminación
  • Estándar LoraWAN de salida de 2 pulsos
  • Medición bidireccional
  • máx. Carga directa 65A
  • 2 módulos de 36 mm de ancho
  • Aprobado por MID/listado ETL
  • 1P2W
SDM230-Lora es un medidor de energía ETL monofásico multifunción de riel Din con comunicación LoraWAN. Puede medir múltiples parámetros como energía activa, energía reactiva, corriente, voltaje, potencia, factor de potencia, frecuencia, etc. El medidor admite conexión directa Max.65A. También ofrece 2 salidas de pulsos. La comunicación equipada es comunicación LoraWAN estándar, lo que la convierte en una buena solución para la medición inalámbrica remota en aplicaciones de larga distancia como edificios inteligentes, centros comerciales, residenciales, etc.

Cableado y dimensiones [mm:]
