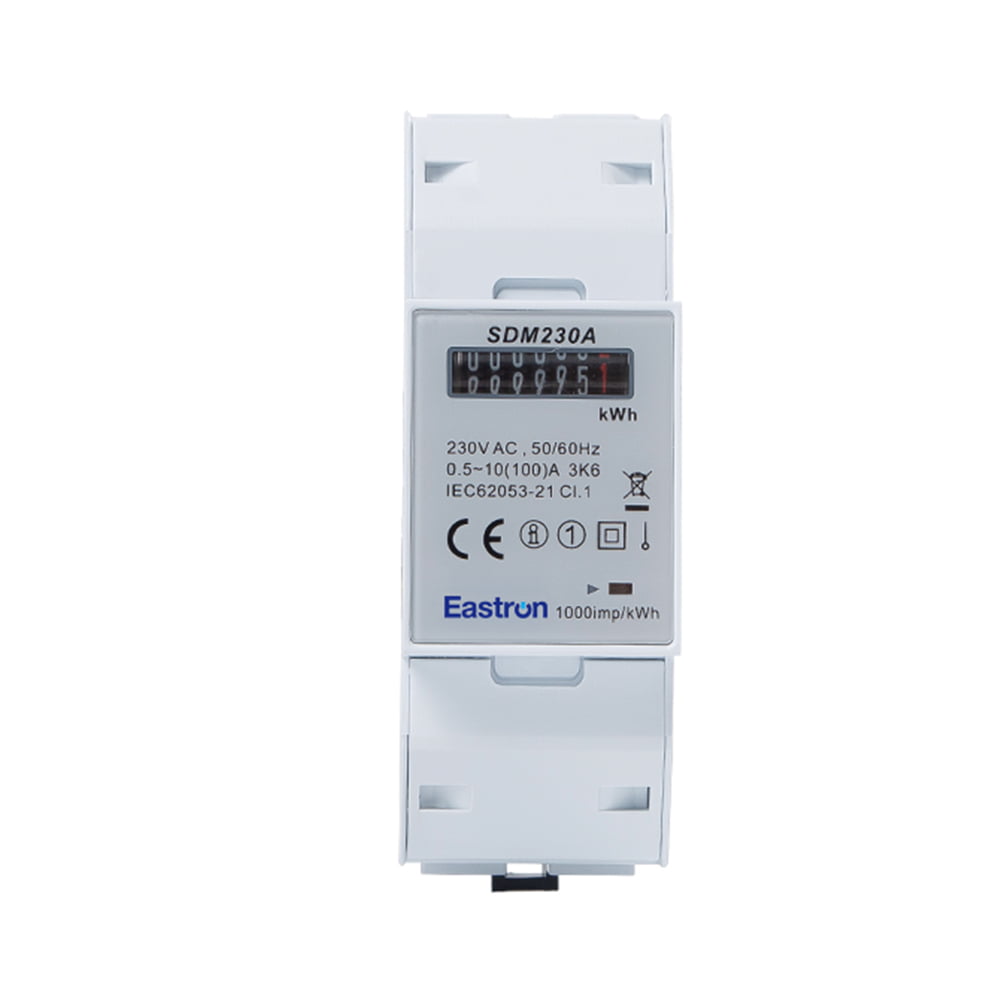

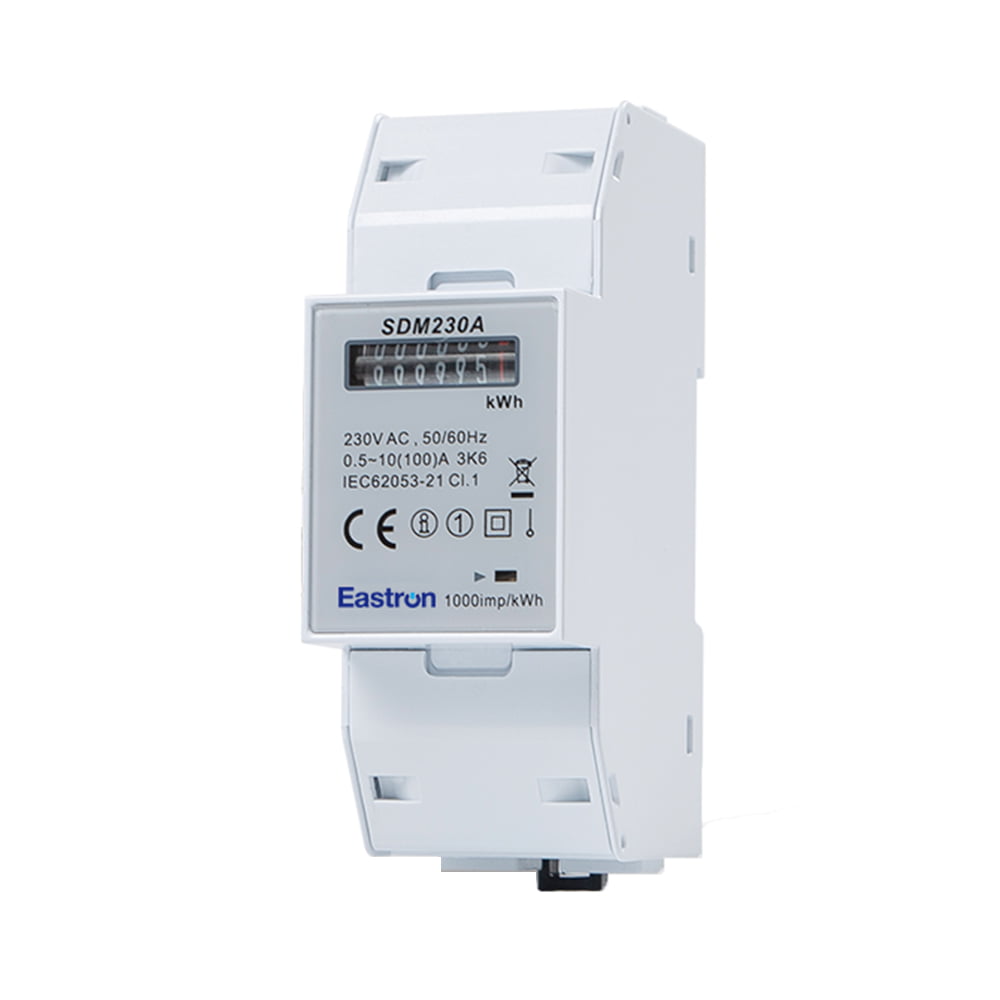

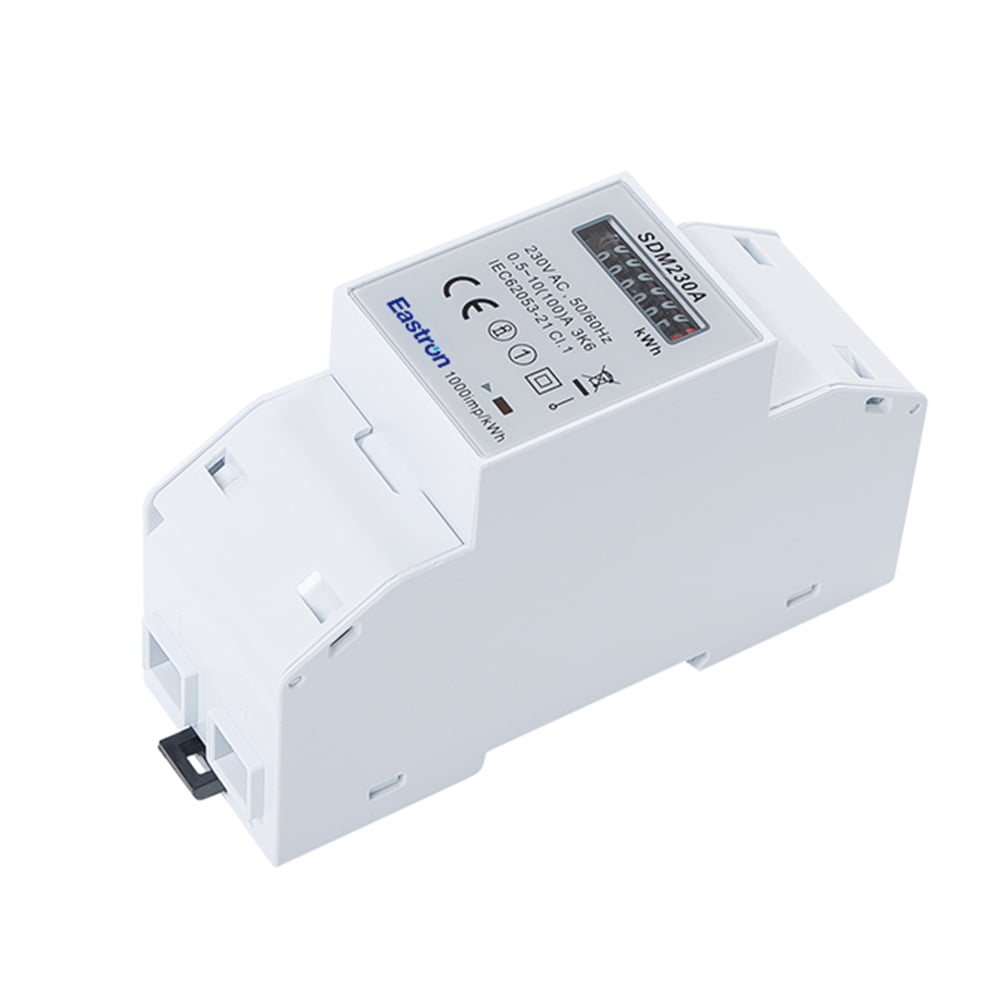

El SDM230A es un medidor de kWh electrónico monofásico de carril DIN con pantalla analógica y salida de impulsos. Es un medidor de kWh de 2 (2 módulos de 36 mm de ancho) con entrada directa máxima de 100 A. También proporciona una versión de medición unidireccional (anti-reversa), que se usa ampliamente en la medición de energía de generación solar.
Características eléctricas | ||
Tipo de Medición | RMS en sistema de CA monofásico (1P N) | |
Precisión de medición | Energía | IEC 62053-21 Clase 1.0/EN50470-1/3 Clase B |
Entrada y salida | ||||
Aporte | Actual | Corriente nominal (Ib) | 10A | |
Corriente máxima (Imáx.) | 100A | |||
Corriente mínima (Imin.) | 0.5A | |||
Corriente inicial | 40mA | |||
Voltaje | Tensión nominal (Un) | 230V | ||
Voltaje de operación | 80% ~120% de la ONU | |||
Producción | SDM230A/SDM230D | Salida de pulsos para energía activa |
