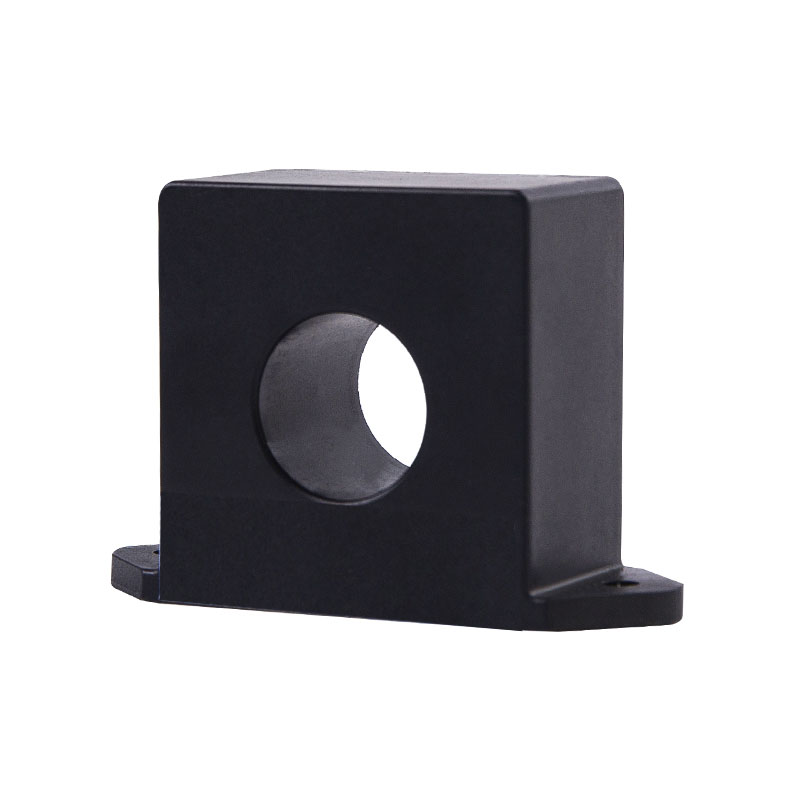

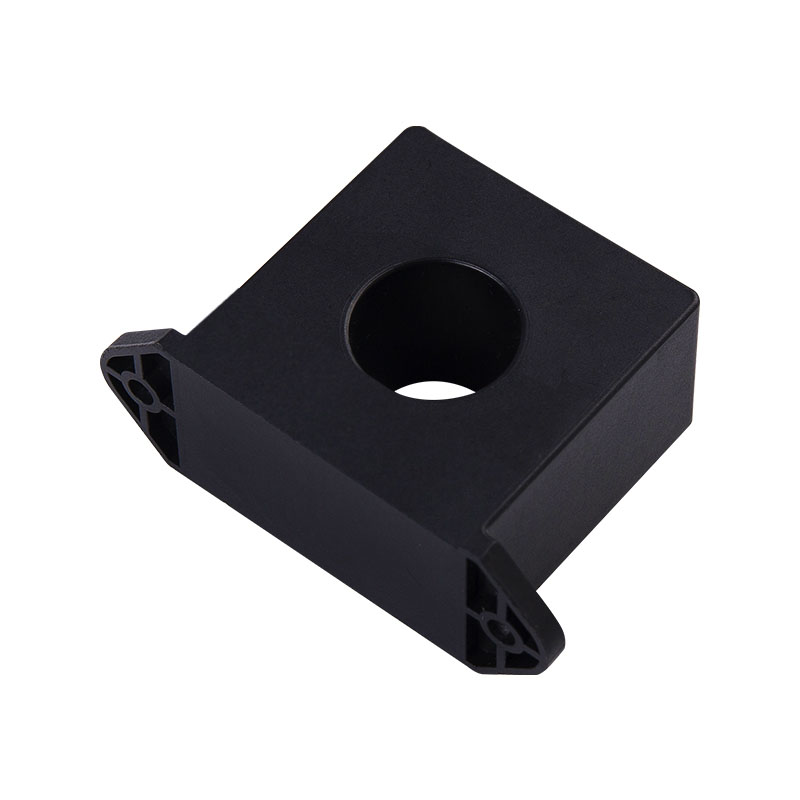

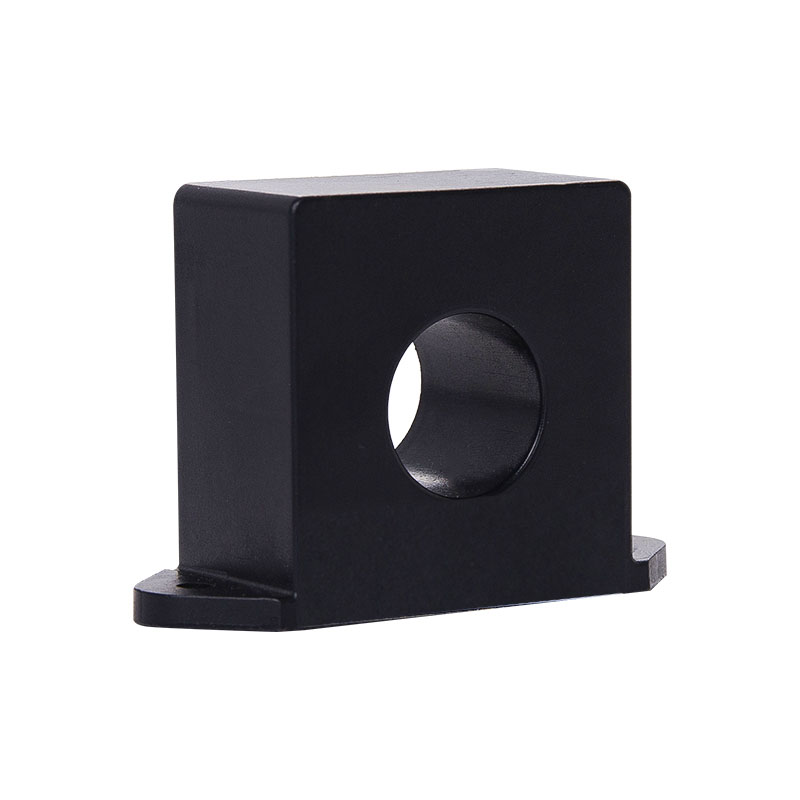

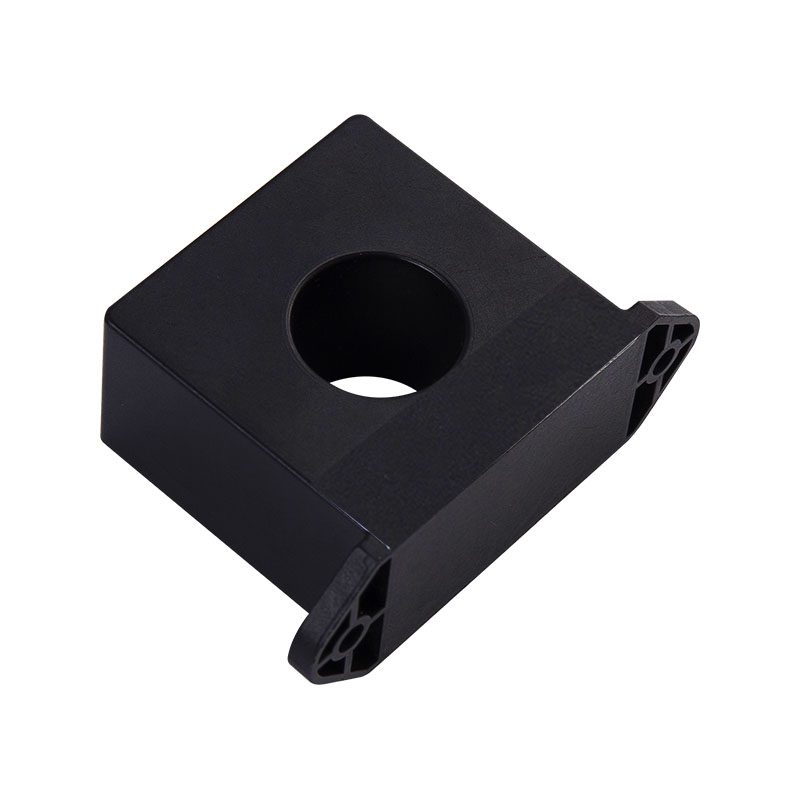

ESCS-E1 es un sensor protector operado por corriente residual para cargadores de vehículos eléctricos.
Es para evitar situaciones peligrosas en los casos en que la batería del vehículo (DC) esté conectada a la fuente de alimentación doméstica (AC). Generalmente, los sensores de corriente residual sensibles a CA/CC se pueden utilizar donde los circuitos de corriente continua y corriente alterna están conectados directamente y, por lo tanto, pueden ocurrir corrientes de fuga de CA/CC.
Cumple con los estándares de los requisitos de características operativas de corriente residual relacionados con IEC 62955 RDC-PD y los requisitos básicos de características operativas de corriente residual GB/T 22794, adaptándose a los requisitos de prueba de CC de 6 mA.
Características del producto:
●Módulo de corriente residual tipo A de 6 mA para protección de pilas de carga de vehículos eléctricos
●Indicación de acción de corriente residual digital altamente integrada todo en uno
●Alto nivel de seguridad, proporcionando una manera de identificar fallas de manera efectiva*
●Valor actual residual reportado, logrando una gestión refinada*
●Integrado con funciones de autoprueba y calibración, lo que ahorra recursos de hardware*
Estándares internacionales:
●Requisitos de corriente residual IEC 62955-2018 para RDC-PD/RDC-MD
●Requisitos básicos de corriente residual GB/T 22794, que se adaptan a los requisitos de prueba de CC de 6 mA
Código de pedido | Entrada actual | Entrada digital | Entrada digital | Estándar |
ESCS-E1-E1 | CC 6 mA/ CA 30 mA | 0V/5V | / | IEC62955 RDC-PD |
ESCS-E1-E2 | CC 6 mA | 0V/5V | / | IEC62955 RDC-MID |
ESCS-E1-E3 | CC 6 mA/CA 30 mA | 0V/5V | √ | IEC62955 RDC-PD |
ESCS-E2-E1 | CC 6 mA/CA 30 mA | 0V/5V | / | IEC62955 RDC-PD |
ESCS-E2-E4 | CC 56 mA/CA 30 mA | 0V/5V | / | IEC62955 RDC-PD |
