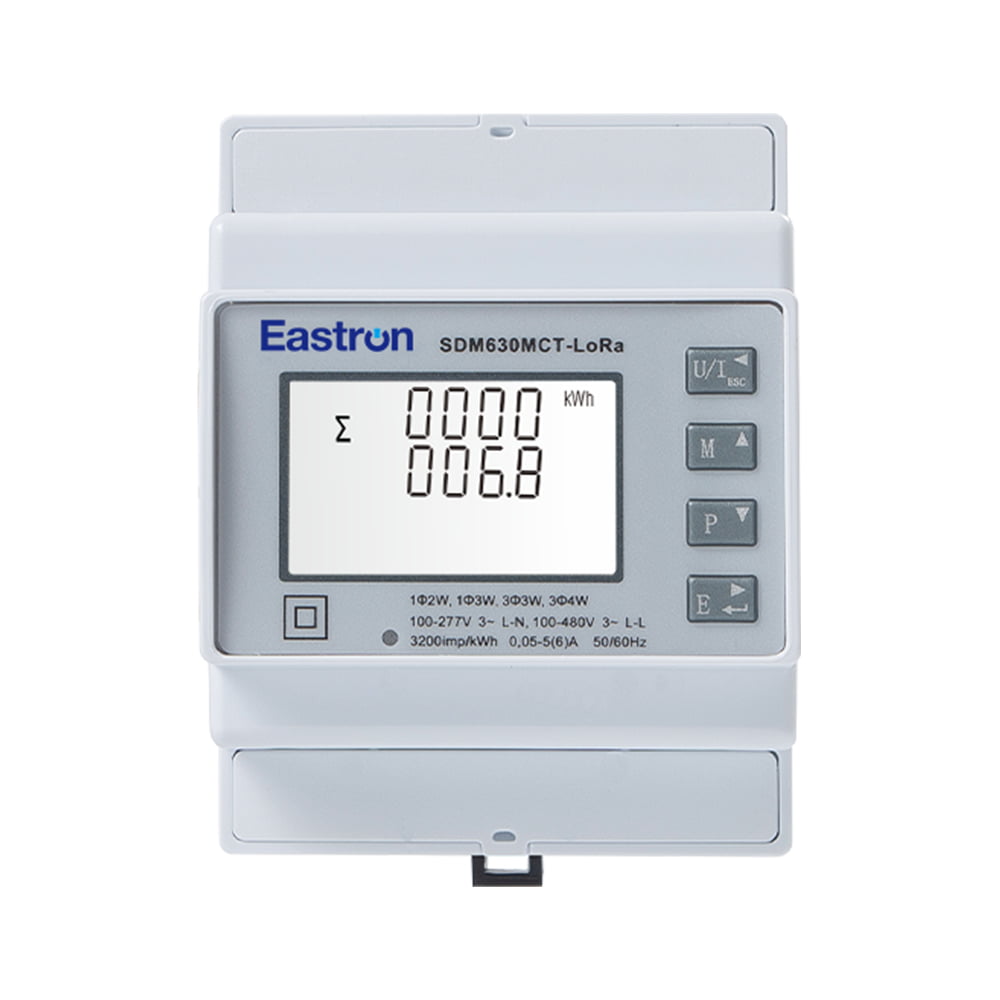

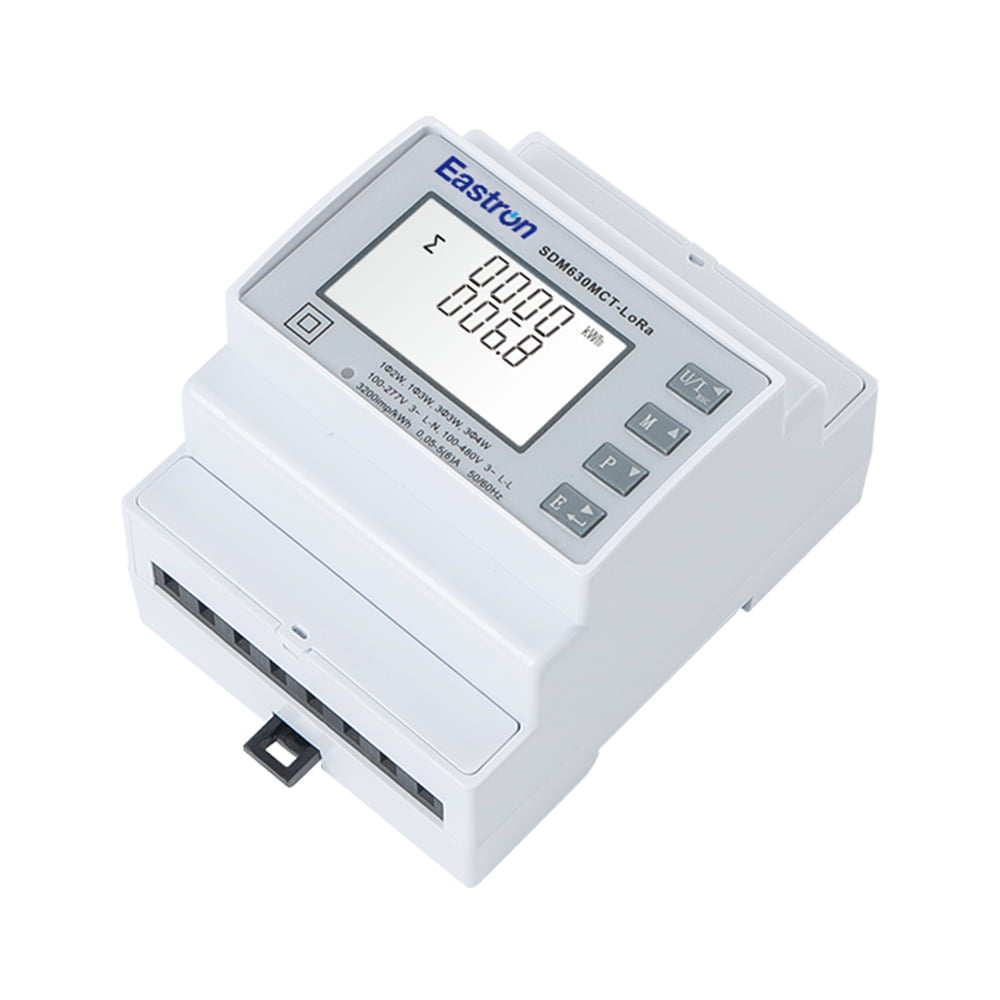

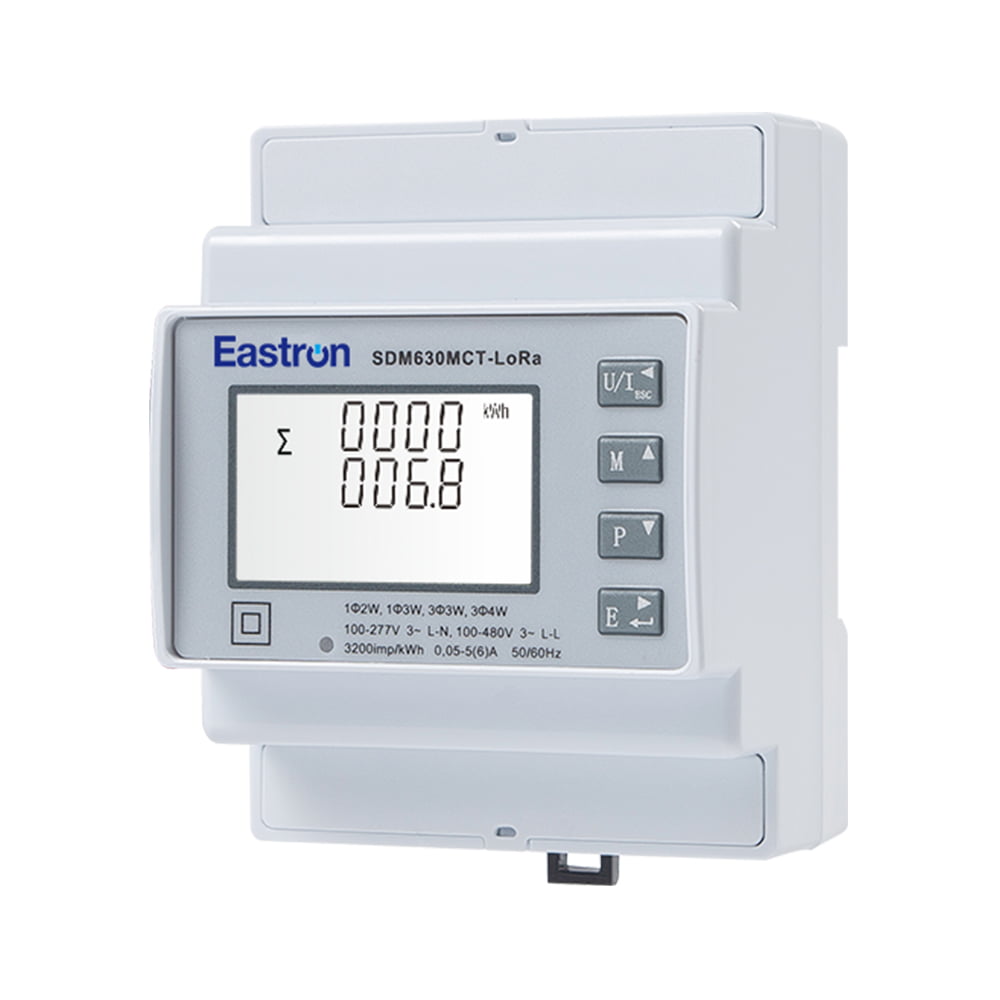

El SDM630MCT-Lora es un medidor de energía multifunción Lorawan de tres fase para soluciones IoT.
With built-in LoraWAN module, it measures and displays the characteristics of single phase two wire (1p2w), single phsae three wire (1p3w), three phase three wire (3p3w), and three phase four wire(3p4w) supplies, including kWh, kVArh, kW, kVA, PF, frequency, voltage, current, demand, etc.
Las entradas de corriente necesarias se obtienen a través de transformadores de corriente de salida 1/5A (CT), este medidor se puede configurar para funcionar con una amplia gama de CT, lo que le da a la unidad una amplia gama de opración. La configuración está protegida con contraseña.
SDM630MCT-Lorawan ha sido evaluado y certificado como cumplir con los requisitos de la Directiva de la UE 2014/32/UE. El número rastreable del instrumento es 0120/SGS0703. El medidor también está enumerado por Intertek.
| Características eléctricas | ||
| Tipo de medición | RMS incluyendo armónicos en el sistema de CA trifásico (3p, 3p n) | |
| Precisión de la medición | Voltaje | ± 0.5% |
| Actual | ± 0.5% | |
| Frecuencia | ± 0.2% | |
| Factor de potencia | ± 1% | |
| Potencia activa | ± 1% | |
| Potencia reactiva | ± 1% | |
| Poder aparente | ± 1% | |
| Energía activa | Clase 0.5S IEC 62053-22, Clase 1.0 IEC 62053-21 Clase B y C EN50470-3: 2022 | |
| Energía reactiva | Clase 2 IEC62053-23 | |
| Entrada y salida | |||
| Aporte | Actual
| CT secundario | 1a/5a |
| CT primario | 1-9999a | ||
| Mínimo corriente | 0.25a | ||
| Corriente inicial | 20 mA | ||
| Voltaje | Voltaje nominal (un) | 230V L-N/ 120V L-N | |
| Voltaje operacional | 80% ~ 120% de la ONU | ||
| Producción | SDM630MCT/ MT | 2 salidas de pulso rs485 modbus | |
| SDM630MCT-2T/ SDM630MCT-MBUS-2T | 2 salidas de pulso RS485 Modbus 2T (fuente de alimentación dual) | ||
| SDM630MCT-MBUS | 2 salidas de pulso M-Bus EN13757 | ||
| Sdm630mct-lora | 2 salidas de pulso Lorawan | ||
| RS485 Modbus Communications | |
| Dirección de comunicación | 1 ~ 247 |
| Distancia de transmisión | 1000m máximo |
| Velocidad de transmisión | 1200bps ~ 38400bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Parada | 1 o 2 |
| Tiempo de respuesta | <100 ms |
| M-Bus EN13757-3 Comunicaciones | |
| Dirección de comunicación | 1 ~ 250 |
| Distancia de transmisión | 1000m máximo |
| Tasa de baudios | 300bps ~ 9600bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Parada | 1 o 2 |
| Lorawan Communications | |
| Frecuencia de comunicación | EU868/ AS923/ AU915/ US915, etc. |
