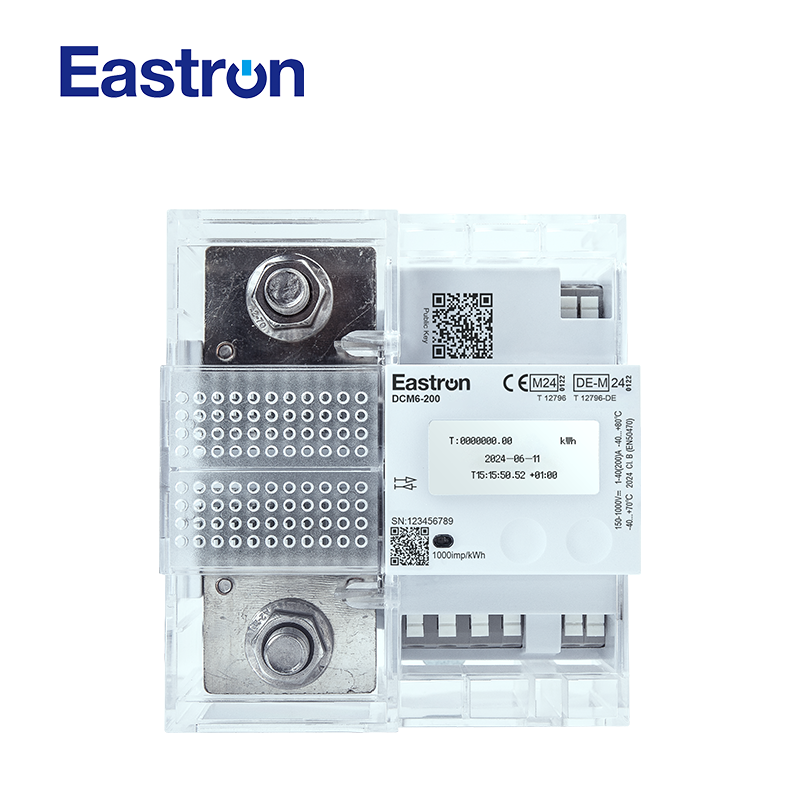

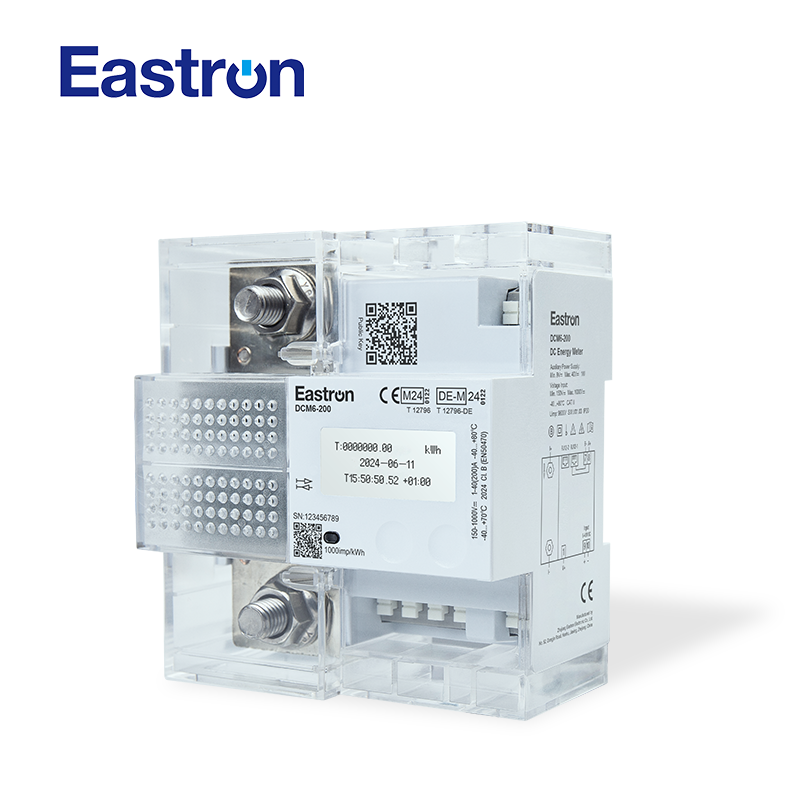

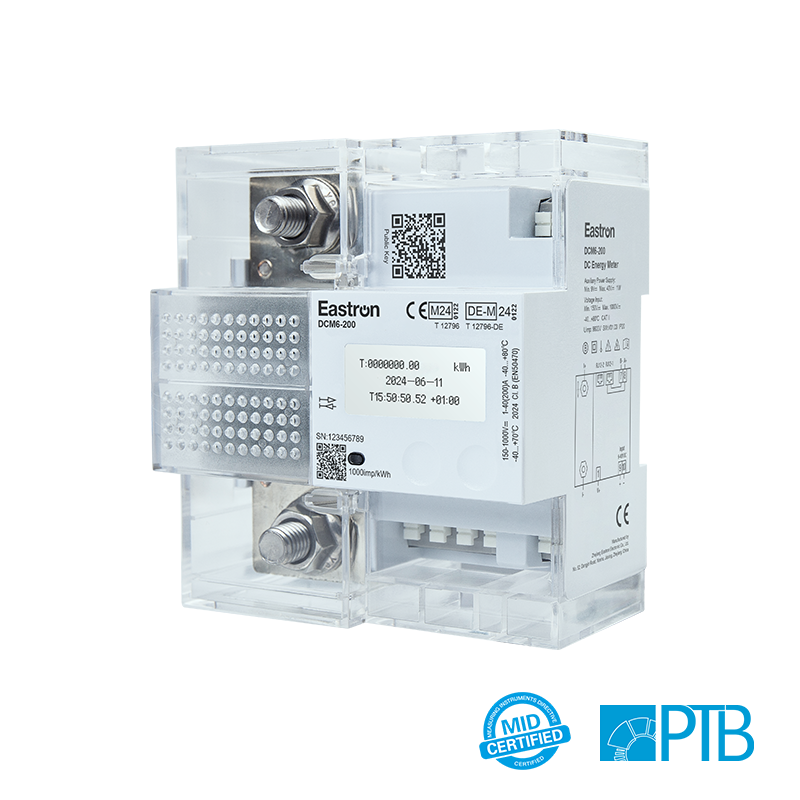

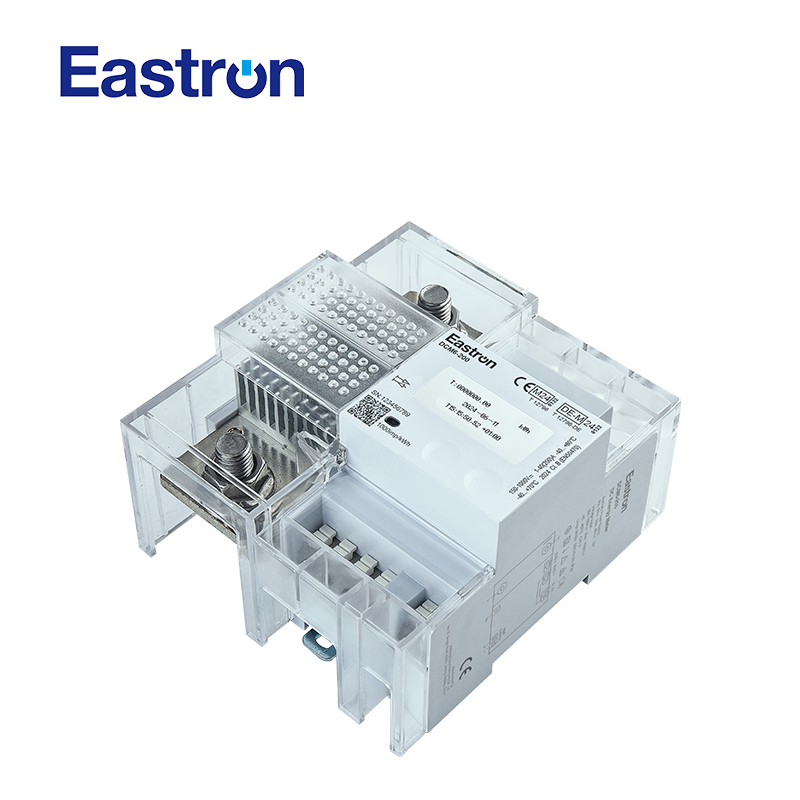

DCM6-200

Medidor de energía CC LNE / MID / PTB para cargador CC EV

  • EN50470-4 CLASE B
  • MÁX. 200A
  • CUMPLIMIENTO DE OCMF 1.2.0
  • MEDICIÓN BIDIRECCIONAL
  • -40~80°C
  • CÁLCULO DE PÉRDIDA DE CABLE
  • 225000 REGISTROS DE TRANSACCIONES
  • 3000 REGISTROS DE EVENTOS

La serie DCM6 es un medidor de electricidad de CC para medición dentro de una estación de carga de movilidad eléctrica. Tiene un microcontrolador dedicado para la función criptográfica para cumplir con Eichrecht. Además, todos los procesos de carga se almacenan en el almacenamiento de datos interno del medidor. La Ley de Medición y Calibración Eichrecht, que es una enmienda a la Ley de Medición y Verificación (Mess und Eichgesetz/ MessEG) y la Ordenanza de Medición y Verificación (Mess- und Eichverordnung / MessEV) es la solución que brinda al usuario transparencia para la facturación detallada de cada evento de cobro.

tensión
Umax 1000 VCC
Umín 150 VCC
Fuente de alimentacion auxiliar 9-40 VCC

real
Ist (corriente de arranque) 0.08A
Imín (corriente mínima) 1A
itr (real) 4A
Iref (corriente normal) 40A
Imax (corriente máxima) 200A

Precisión
clase B

Pantalla
LCD matriz de puntos
ciclo de vida >12 años

Salida en serie
tipo 2xRS485 (RTU)
Puertos 2 xRJ12 1 terminal enchufable

Interfaz RS485
4800~115200bps(19200bps predeterminado) 8N1(Configurable)

Cableado y dimensiones [mm:]

Cableado y dimensiones [mm:]

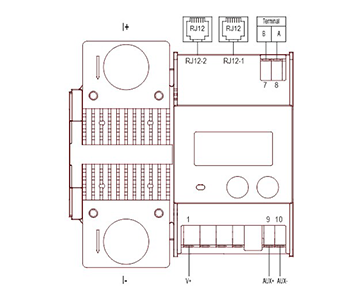

diagrama de cableado

Cableado y dimensiones [mm:]

Dimensiones
