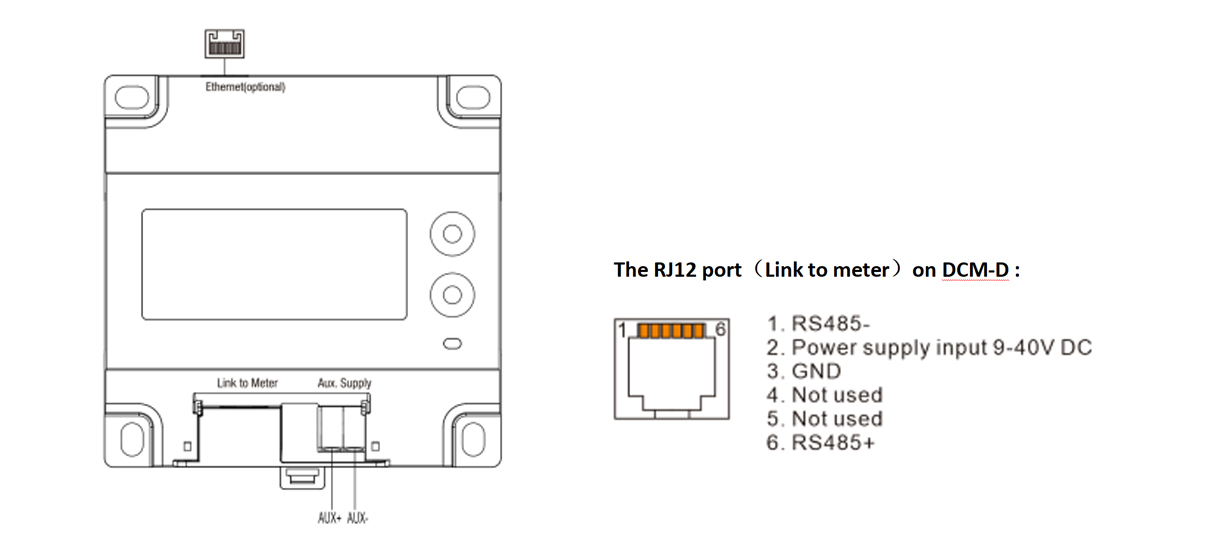

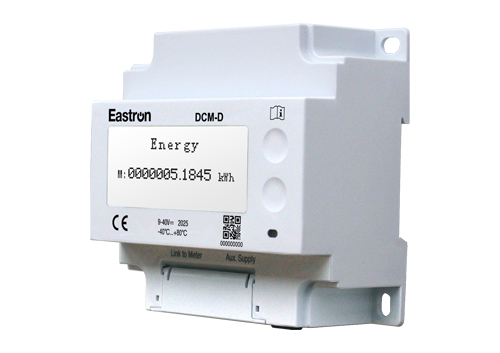

Display externa DCM-D es un dispositivo adicional para mostrar los valores del medidor de energía. Está conectado al medidor de energía DCM por un cable de datos RJ12, que proporciona más flexibilidad para la instalación y más conveniencia para el funcionamiento. La información relevante de facturación también está disponible en la pantalla. La pantalla es de tipo Matrix de puntos con retroiluminación. Hay dos botones en el panel frontal para la verificación y la configuración de datos.
Parámetros técnicos | |
Fuente de alimentación | 9 ~ 40V DC |
Consumo de energía | <1.5w |
Temperatura de trabajo | -40 ℃ a 80 ℃ |
Puerto de comunicación | RJ12, 115200bps, 8n1 |
Bluetooth | V5.1 |
Comunicación opcional | Ethernet Modbus TCP |
Instalación | Din Rail montado y tornillo Montado |
