Muestreo de voltaje
Fuente de alimentación del sistema
MCS-Gestión BUS
Alarma de bajo voltaje
+86-400-996-9296

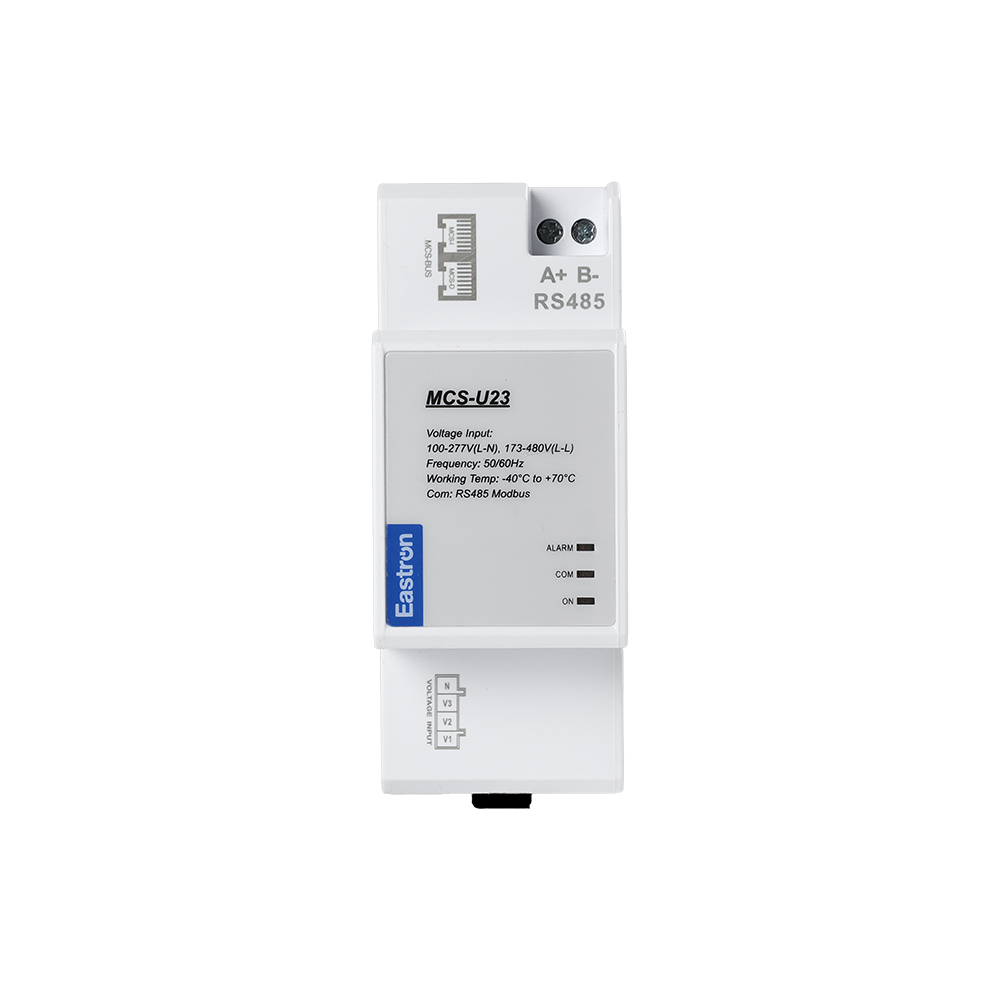

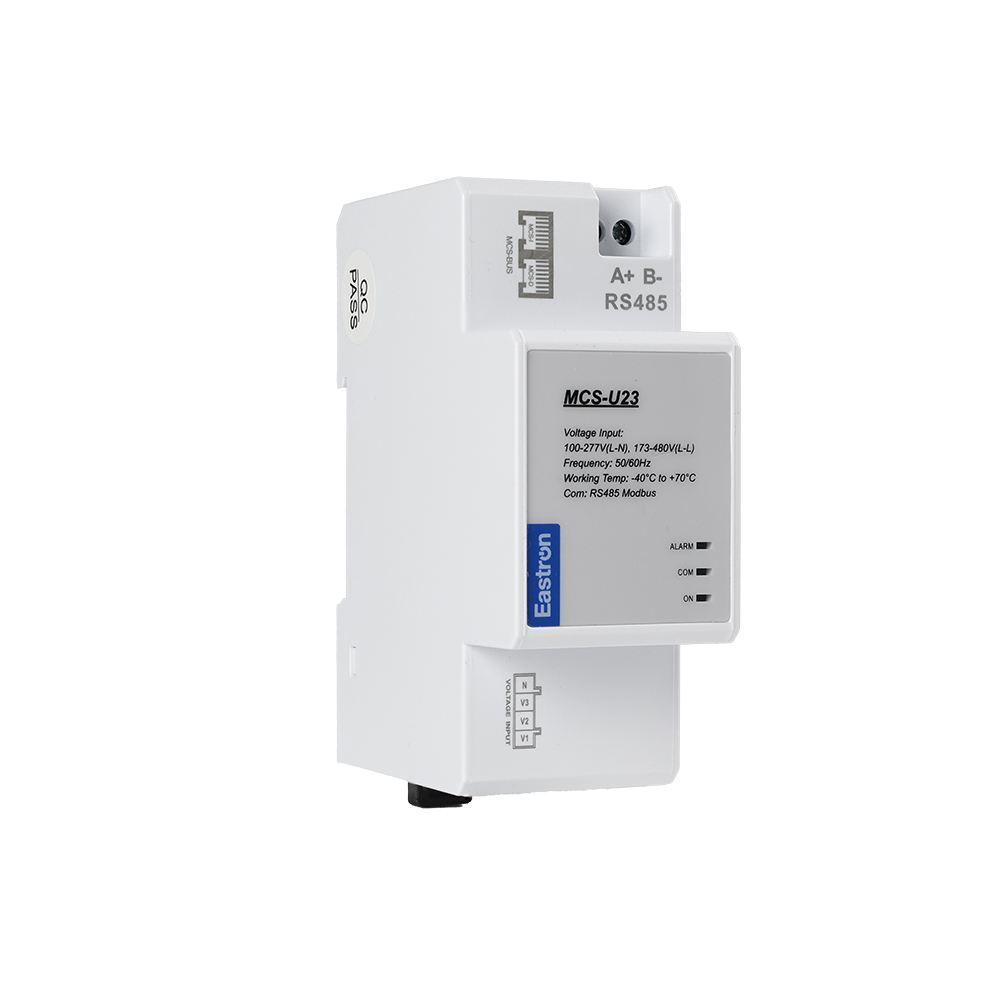

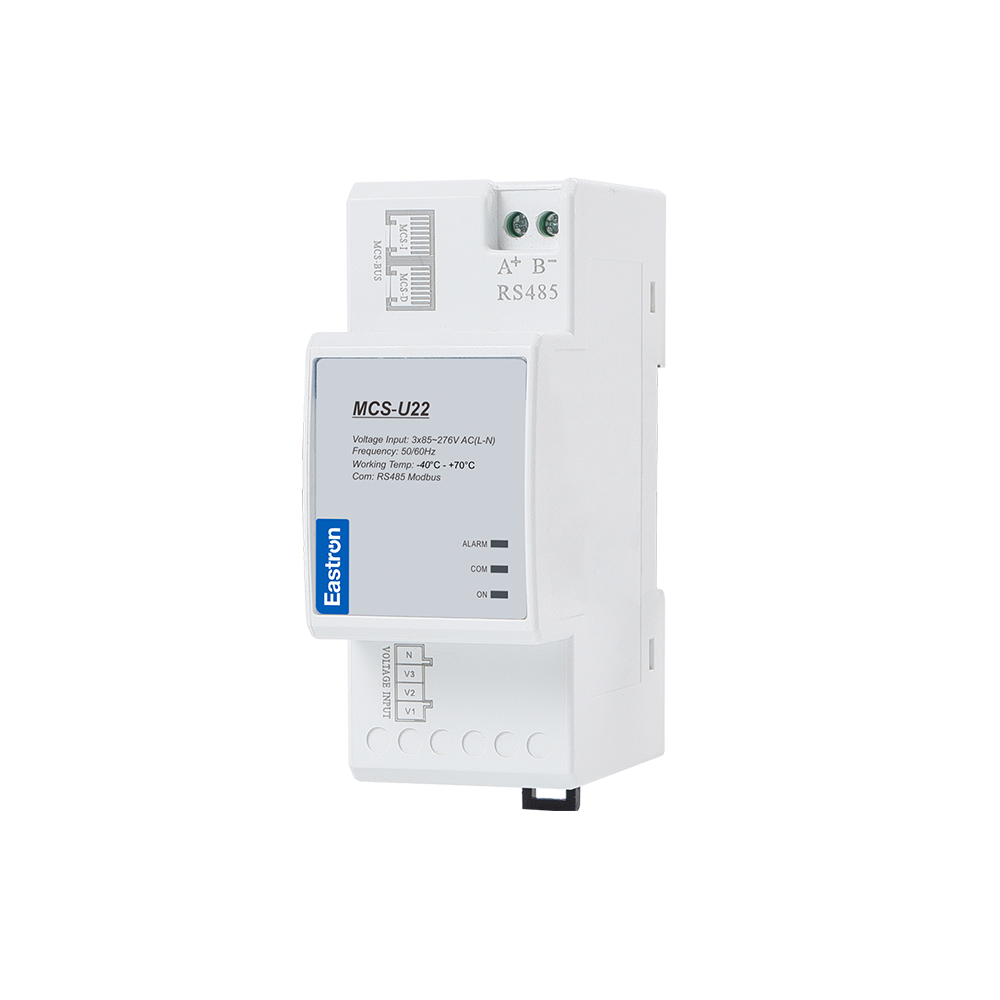

El módulo MCS-U es la unidad de entrada de tensión de nuestra nueva solución "Multi Click". Mide los voltajes de entrada del sistema y suministra energía a los módulos de corriente MCS-I / MCS-E conectados mediante RJ45 MCS-BUS. Al admitir un amplio rango de voltaje, es compatible con redes 1P2W, 1P3W, 3P3W y 3P4W. Cuenta con terminales RS485 para comunicación Modbus, lo que permite la configuración de parámetros y lectura de datos en sistemas sin el módulo de visualización MCS-D.
| Parámetros técnicos | ||
| Precisión | voltaje | ±0,5% |
| Parámetros técnicos | Voltaje de entrada | 100-277V (LN) 173-480V (L-L) |
| Tensión nominal | 230V | |
| Frecuencia | 50/60Hz | |
| Resistencia al voltaje CA | 3KV por 1 minuto | |
| Resistencia al voltaje de impulso | Forma de onda de 6 kV – 1,2 µS | |
| voltaje Circuit Power Consumption | ≤ 2W/10VA | |
| Características mecánicas | |
| Peso | ≈130g |
| Grado de protección IP (IEC 60529) | Medidor completo IP20 |

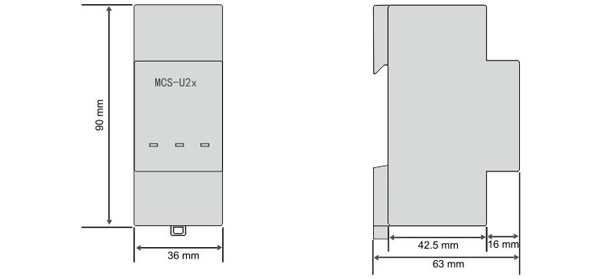

| Dimensiones (AnchoxAltoxLargo) | 36x90x63mm |
| Montaje | Carril DIN 35mm |
| Material de la caja del medidor | Autoextinguible UL 94 V-0 |
| Entorno mecánico | M1 |
| Entorno electromagnético | E2 |
| Comunicación RS485 | |
| Protocolo de interfaz | Modbus RTU |
| Dirección de comunicación | 1 ~ 247 |
| Modo de transmisión | Medio Dúplex |
| Tipo de datos | Punto flotante |
| Distancia de transmisión | <1000m |
| Velocidad de transmisión | 1200/2400/4800/9600 (predeterminado)/19200/38400/115200 bps |
| paridad | NINGUNO (predeterminado)/IMPAR/PAR |
| Bits de datos | 8 |
| Bits de parada | 1 |
