| Características eléctricas | ||
| Tipo de Medición | RMS incluyendo armónicos en tres sistema de CA de fase (3P, 3P N) | |
| Precisión de medición | Fuerza | 0,5% del rango máximo |
| Energía Activa | IEC 62053-21 Clase 1.0 EN50470-1/3 Clase B | |
| Energía reactiva | IEC62053-23 Clase 2 | |
| Frecuencia | 0,2% de frecuencia media | |
| Actual | 0,5% del rango máximo | |
| Voltaje | 0,5% del rango máximo | |
| Factor de potencia | 1% de la unidad (0,01) | |
| Entrada y salida | |||
| Aporte | Actual
| Corriente nominal (Ib/Iref) | 10A |
| Corriente máxima (Imáx.) | 100A | ||
| Corriente mínima (Imin.) | 0.5A | ||
| Corriente inicial | 40mA | ||
| Voltaje | Tensión nominal (Un) | 230V LN / 120V LN | |
| Voltaje operativo | 80%~120% de la ONU | ||
| Producción | SDM630-Pulso | 2 salidas de pulsos para imp/exp. energía | |
| SDM630-Modbus/MT | 2 salidas de pulsos RS485 Modbus | ||
| SDM630-Mbus | 2 Salidas de Pulsos M-bus EN13757 | ||
| SDM630-2T | 2 Salidas de Pulsos RS485 Modbus 2 Tarifas (Doble Fuente de Alimentación) | ||
| SDM630-Mbus-2T | 2 Salidas de Pulsos M-bus EN13757 2 Tarifas (Doble Fuente de Alimentación) | ||
| SDM630M-DI | 2 Salidas de Pulsos RS485 Modbus Entrada Digital | ||

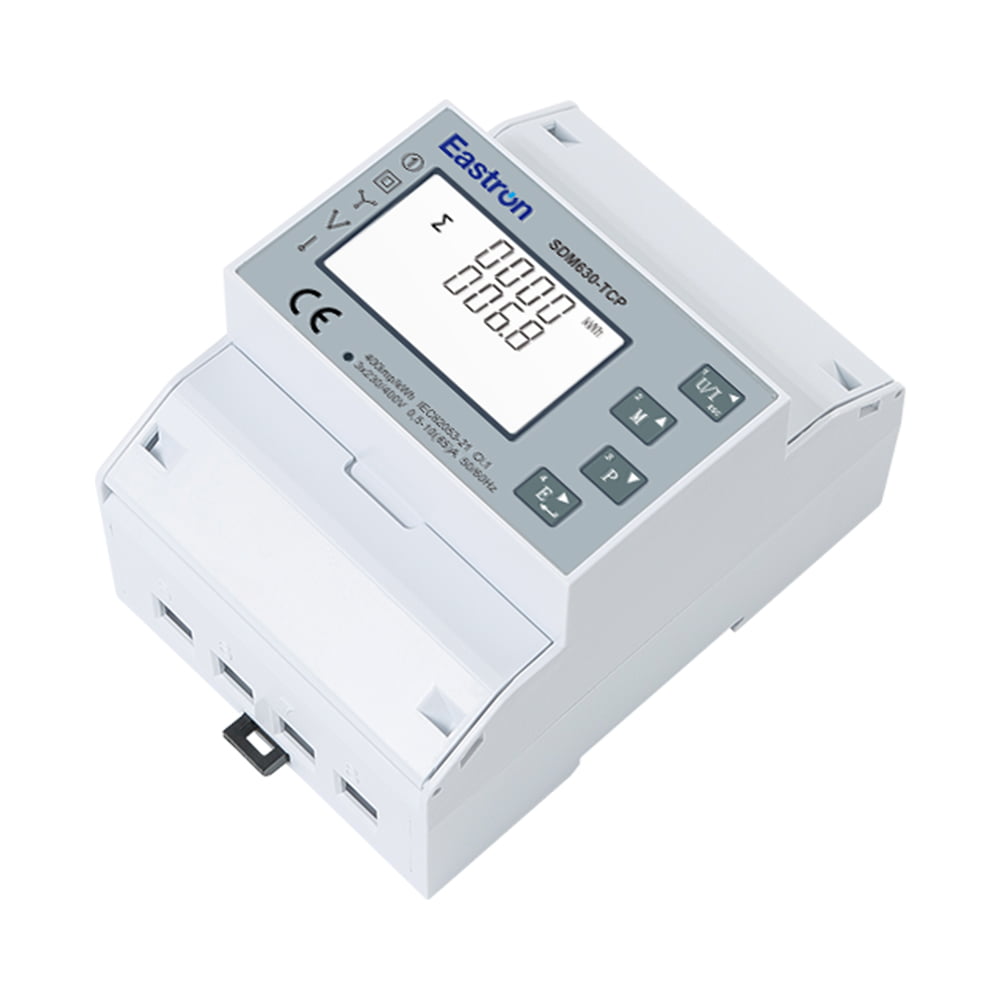

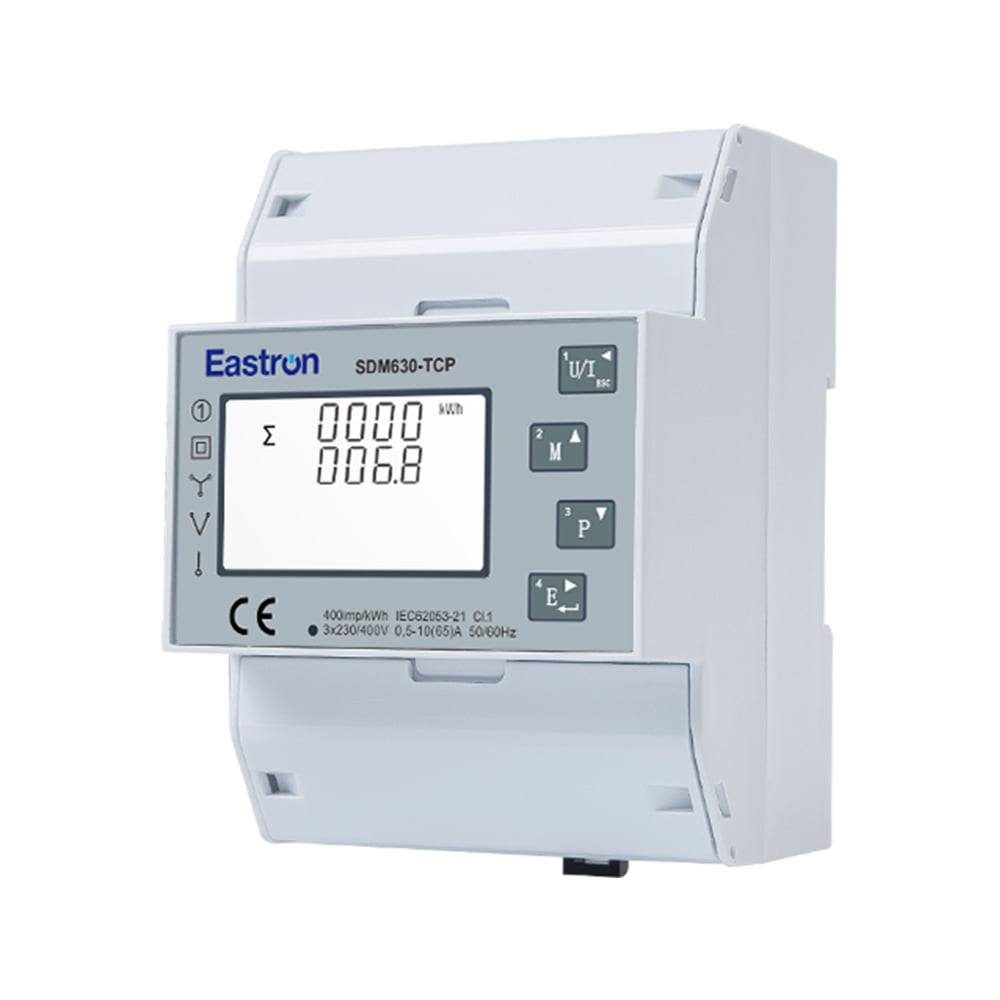

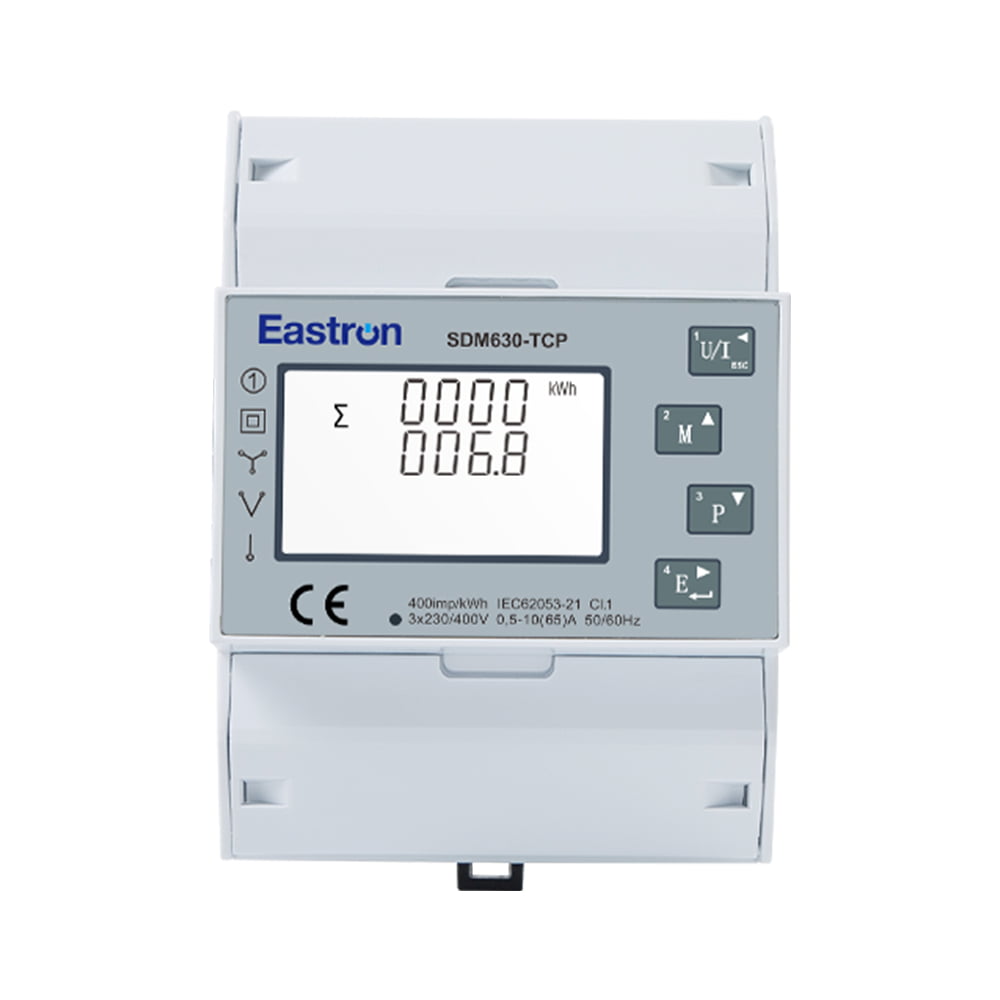

| SDM630-TCP | Ethernet Modbus TCP | ||
| Comunicaciones Modbus RS485 | |
| Dirección de comunicación | 1~247 |
| Distancia de transmisión | 1000 m máximo |
| Velocidad de transmisión | 1200bps~38400bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Bits de parada | 1 o 2 |
| Tiempo de respuesta | <100 ms |
| Comunicaciones M-Bus EN13757-3 | |
| Dirección de comunicación | 1~250 |
| Distancia de transmisión | 1000 m máximo |
| Velocidad de baudios | 300bps~9600bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Bits de parada | 1 o 2 |
