Desarrollamos y producimos medidores de alto rendimiento, Analizadores de potencia, sensores de corriente, módulos de comunicación y sistemas de gestión. Fabricantes y fábricas de instrumentos inteligentes personalizados en china.
Medición de corriente/potencia/energía
Interfaz RJ12 para CT externo
Alarma de sobrecorriente
Cargas 1x3fasicas o 3x1fasicas
+86-400-996-9296

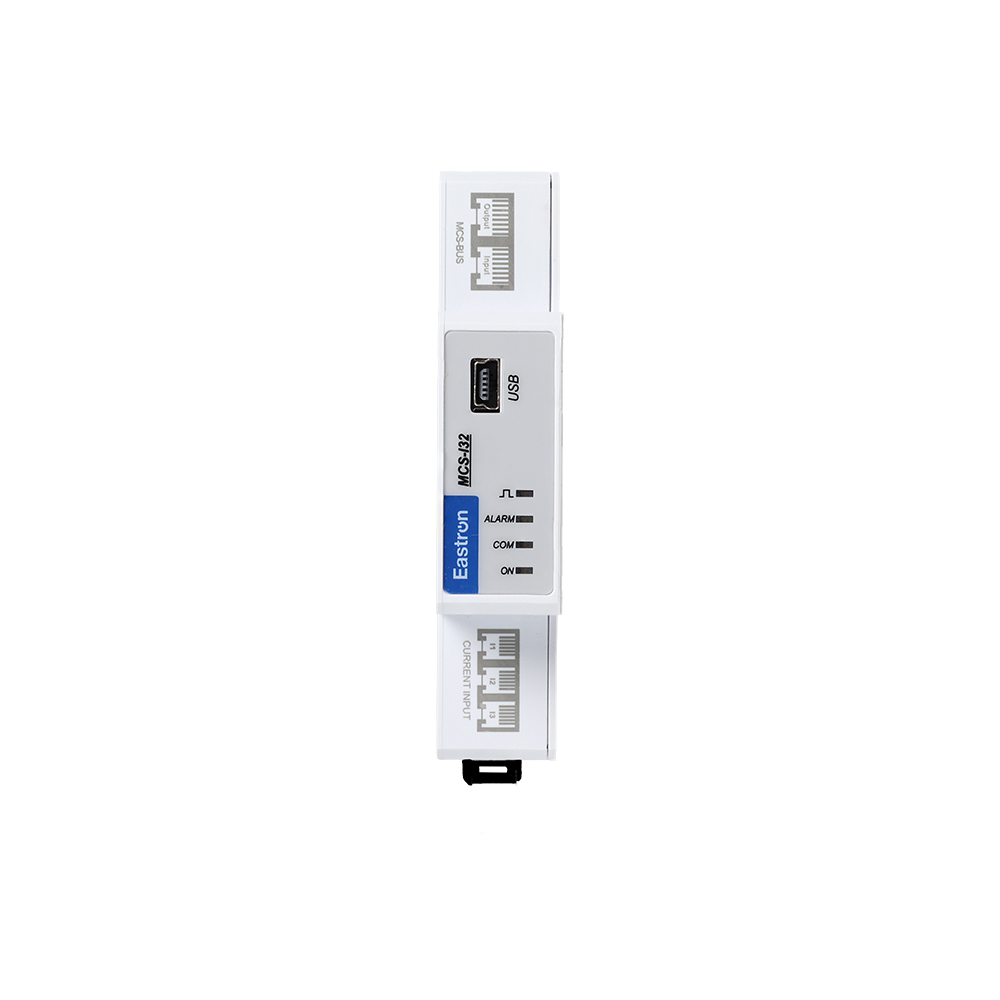

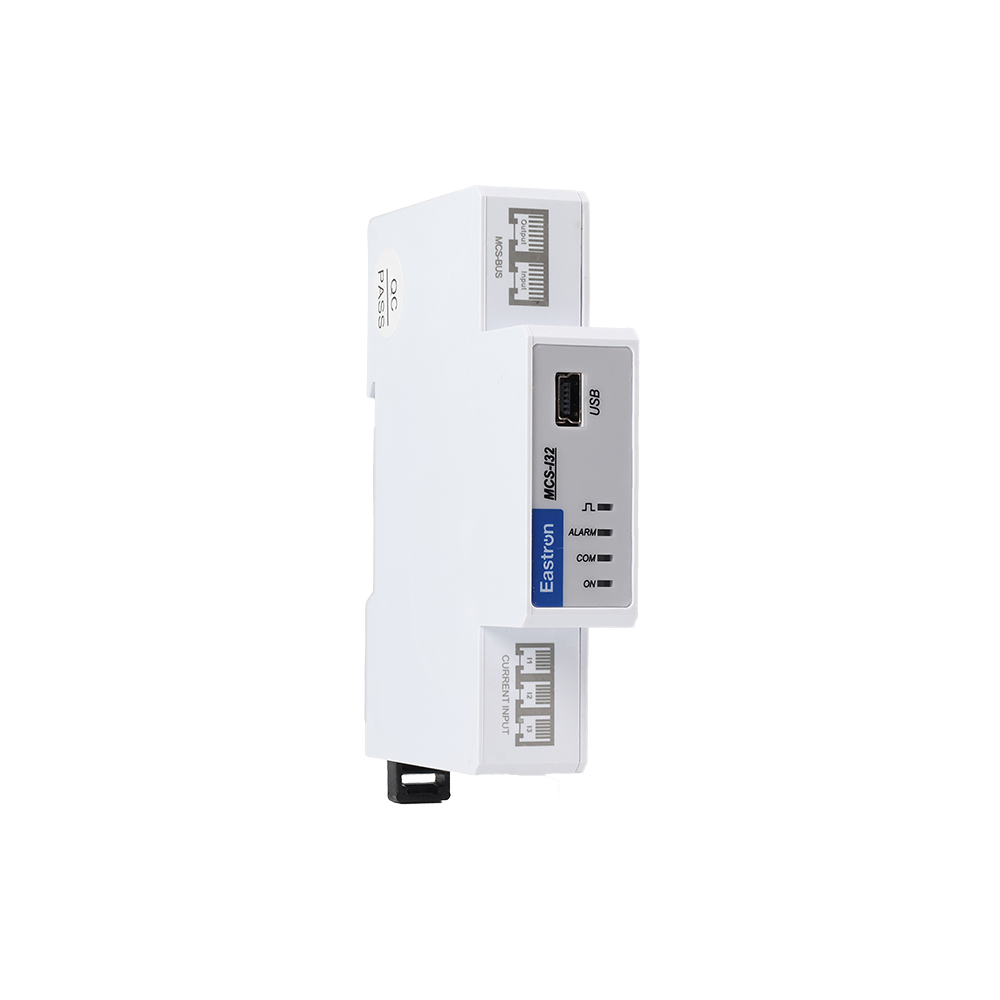

MCS-I es el módulo de entrada actual en la solución "Multi-click". Mide el consumo de corriente, potencia y energía en cargas monofásicas y trifásicas. Se conecta al MCS-U y otros módulos MCS-I / MCS-E o MCS-F mediante RJ45 MCS-BUS, se conecta a transformadores de corriente mediante RJ12. Además, se pueden conectar un máximo de 32 unidades de circuitos trifásicos o 96 unidades monofásicos mediante MCS-BUS.
| Parámetros técnicos | ||
| Precisión | Actual | ±0,5% |
| potencia activa | ±1% (10%Ib~Imáx) | |
| Potencia reactiva | ±2% (10%Ib~Imáx) | |
| poder aparente | ±1% (10%Ib~Imáx) | |
| Energía Activa | Clase 1 IEC 61557-12 | |
| Energía reactiva | Clase 2 IEC 61557-12 | |
| Corriente de entrada | 100mV | |
| Sobre resistencia actual | 30 Imáx durante 0,01 s | |
| Salida de pulso | 1000imp/kWh | |
| Capacidades de aislamiento | Soporta voltaje de CA | 3KV por 1 minuto |
| Soporta voltaje de impulso | Forma de onda de 6 kV – 1,2 µS | |
| Consumo de energía | ≤ 2W/10VA | |
| Características mecánicas | |
| Peso | ≈56g |
| Grado de protección IP (IEC 60529) | Medidor completo IP20 |

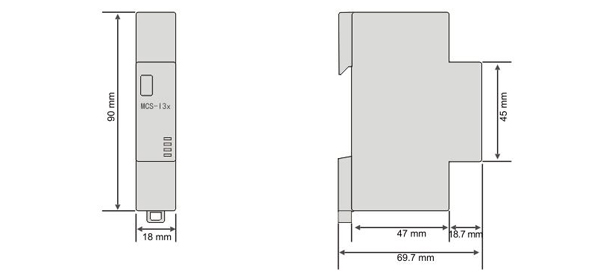

| Dimensiones (AnchoxAltoxLargo) | 18x90x70mm |
| Montaje | Carril DIN 35mm |
| Material de la caja del medidor | Autoextinguible UL 94 V-0 |
| Entorno mecánico | M1 |
| Entorno electromagnético | E2 |
