Medición de corriente/potencia/energía
CT 3 en 1 incorporado
Alarma de sobrecorriente
Instalación Trifásica
Usado con un disyuntor
+86-400-996-9296

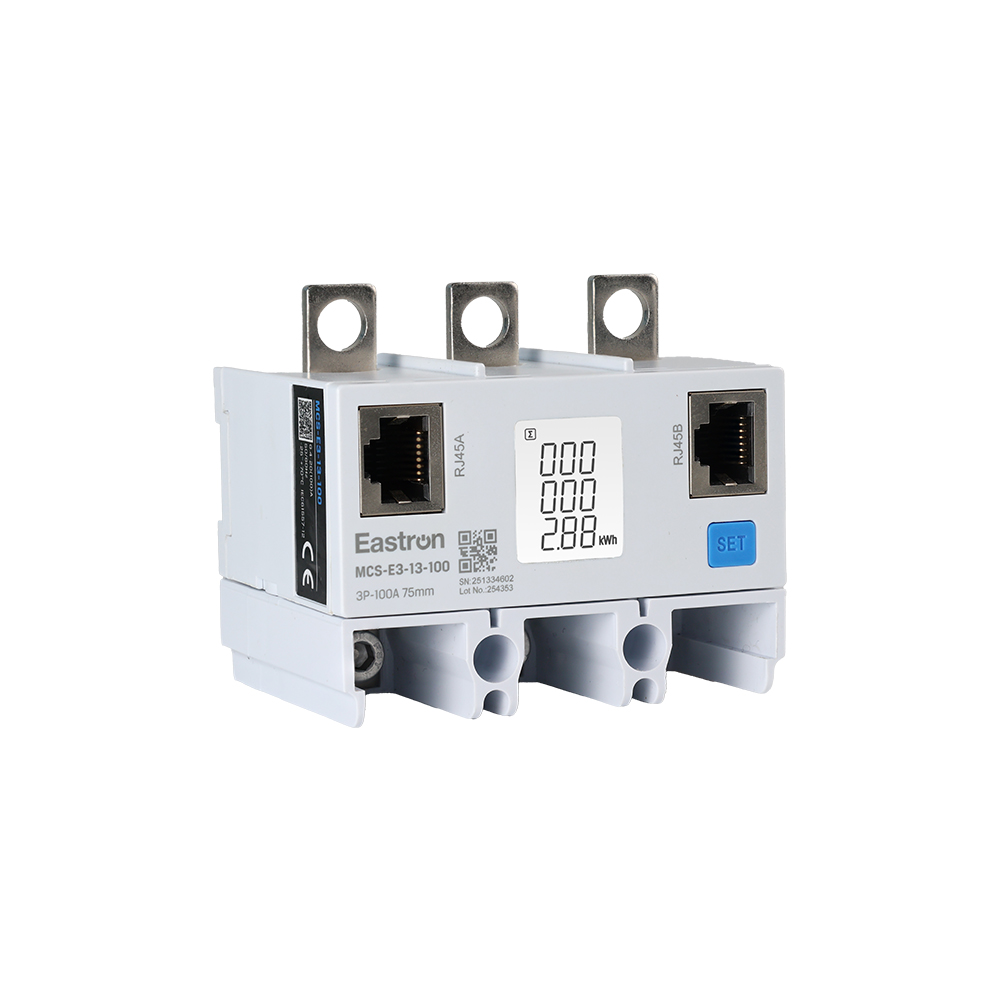

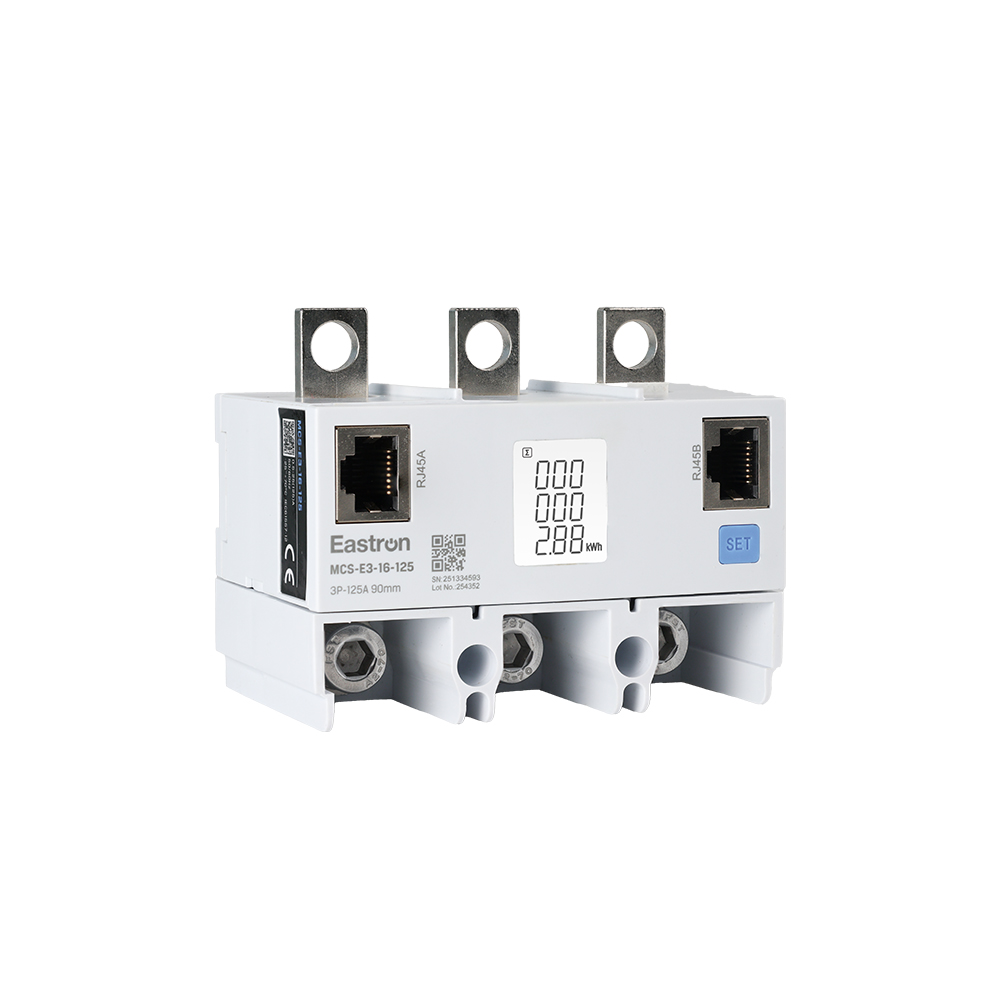

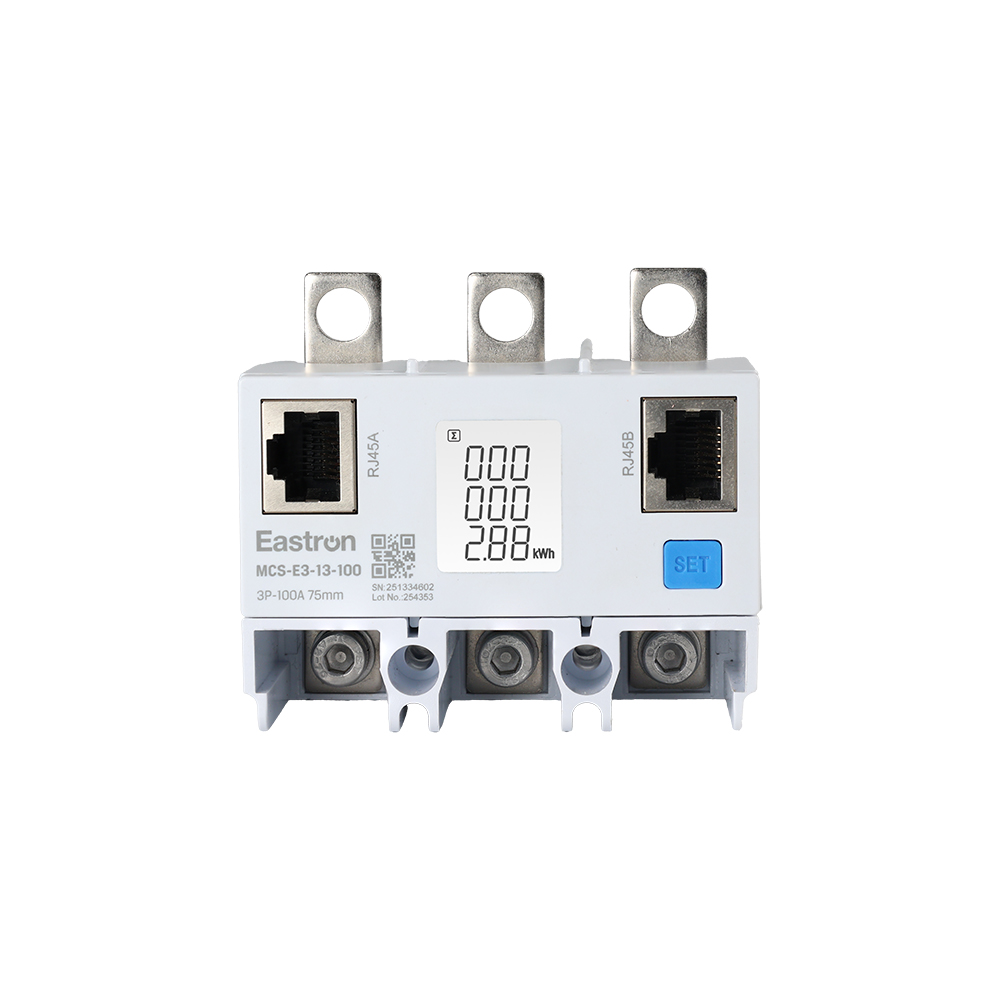

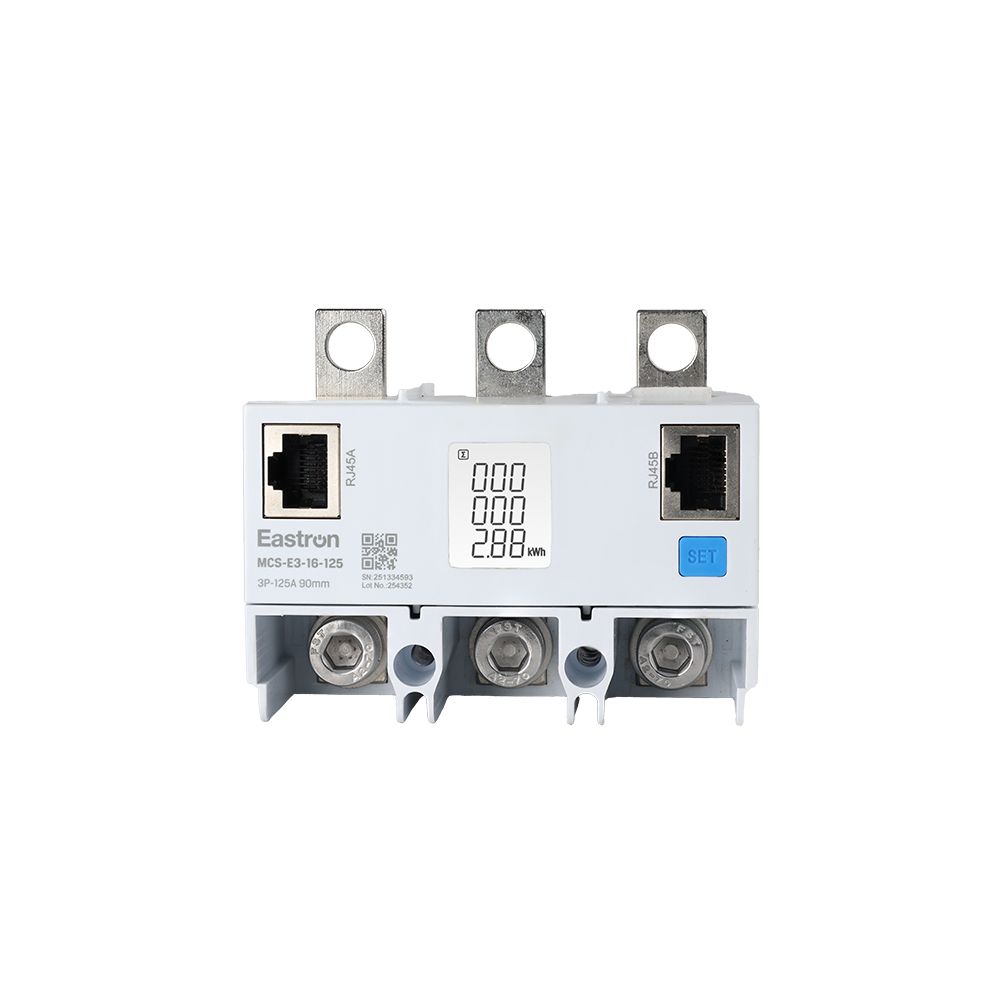

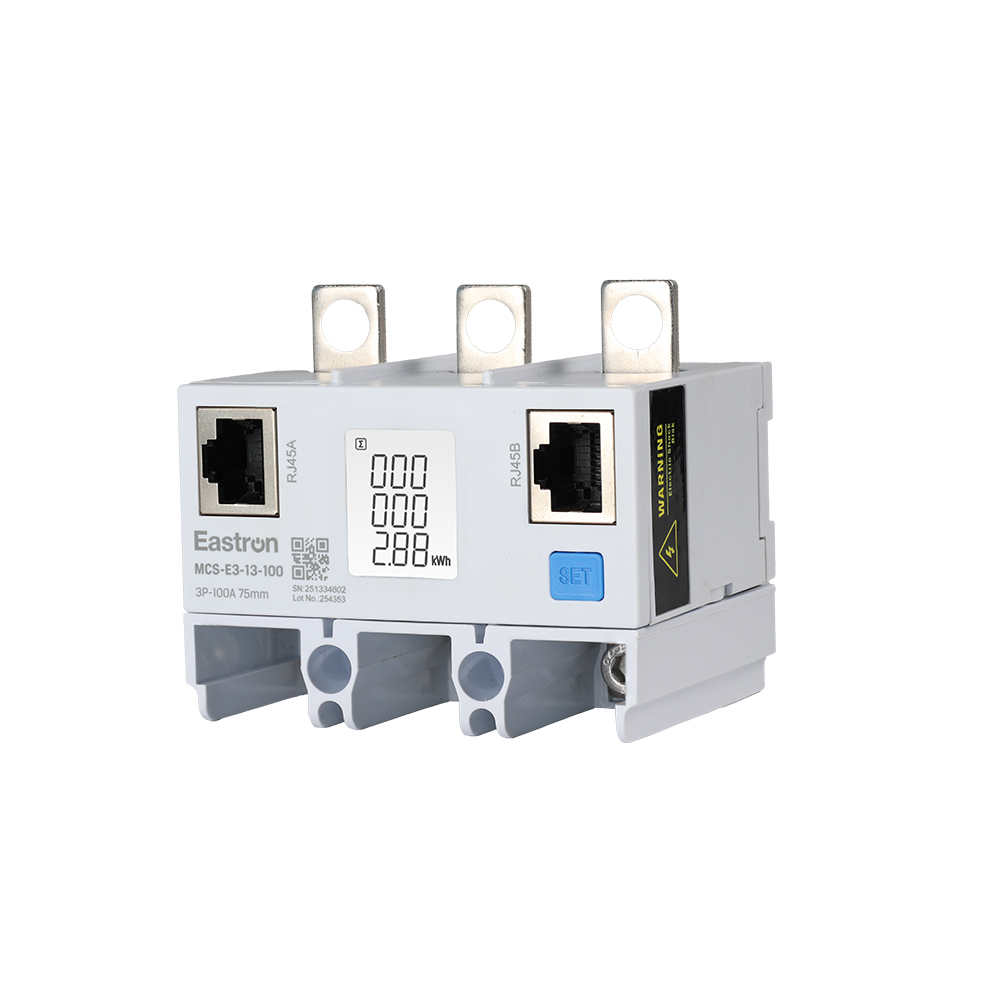

MCS-E3 son los módulos de entrada actuales en la solución "Multi-click". Mide el consumo de corriente, potencia y energía en cargas monofásicas o trifásicas, se conecta al MCS-U2x y a otro módulo de corriente MCS-E3 a través de RJ45 MCS-BUS. Además, se pueden conectar un máximo de 24 unidades de circuitos trifásicos o 72 unidades monofásicos mediante MCS-BUS.
| Parámetros técnicos | ||||
| Tipo | E3-13-100 | E3-16-125 | E3-21-250 | |
| Precisión | Actual | ±0,2% | ||
| potencia activa | ±0,5% (10%Ib~Imáx) | |||
| Potencia reactiva | ±1% (10%Ib~Imáx) | |||
| poder aparente | ±0,5% (10%Ib~Imáx) | |||
| Energía Activa | Clase 0,5 IEC 61557-12 | |||
| Energía reactiva | Clase 2 IEC 61557-12 | |||
| Parámetros técnicos | Corriente de entrada | 0,4 ~ 20(100)A | 0,5 ~ 25(125)A | 1 ~ 50(250)A |
| Corriente inicial (Ist) | 0.08A | 0.1A | 0.2A | |
| Corriente de transición (Itr) | 1A | 1.25A | 2.5A | |
| Sobre resistencia actual | 30 Imáx durante 0,01 s | |||
| Valor nominal de frecuencia | 50/60Hz | |||
| Soporta voltaje de CA | 3KV por 1 Minuto | |||
| Soporta voltaje de impulso | Forma de onda de 6 kV –1,2/50 µS | |||
| Actual Circuit Power Consumption | ≤0,05VA | |||
| Pantalla | LCD con retroiluminación blanca | |||
| Máx. leyendo | 99999999,9 kWh/kvarh | |||
| Características mecánicas | |||
| Tipo | E3-13-100 | E3-16-125 | E3-21-250 |
| Peso | ≈289g | ≈388g | ≈640g |
| Grado de protección IP (IEC 60529) | Medidor completo IP20 | ||

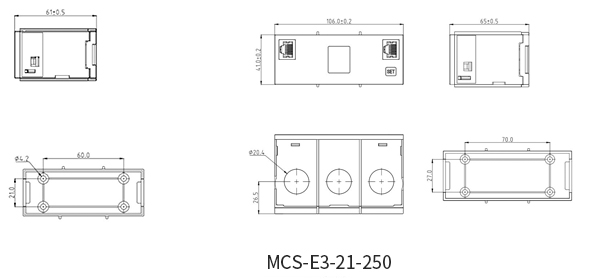

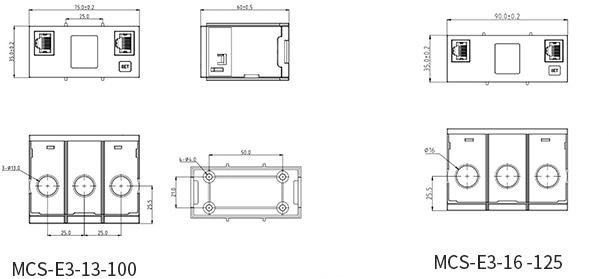

| Dimensiones (AnchoxAltoxLargo) | 35x75x60mm | 35x90x61mm | 41x106x65mm |
| Montaje | Montaje en panel (fijación con tornillos) | ||
| Material de la caja del medidor | Autoextinguible UL 94 V-0 | ||
| Entorno mecánico | M1 | ||
| Entorno electromagnético | E2 | ||
