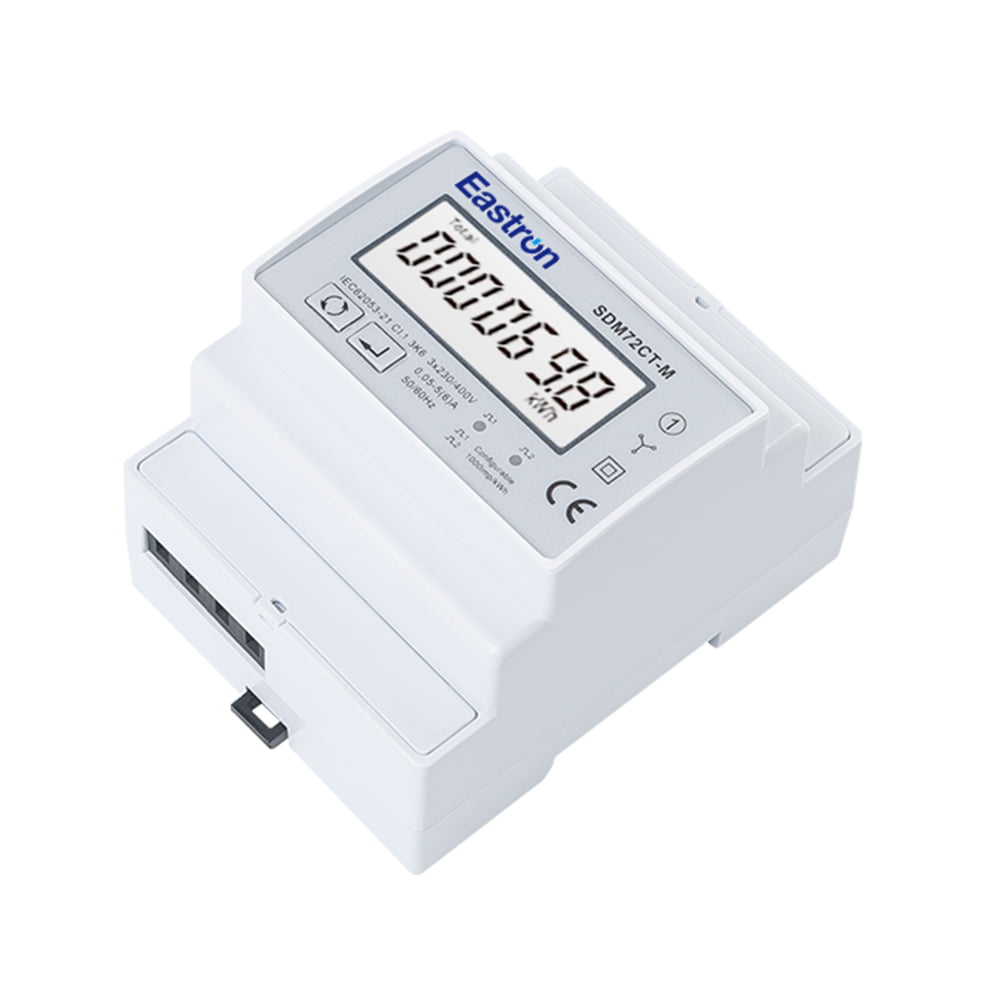

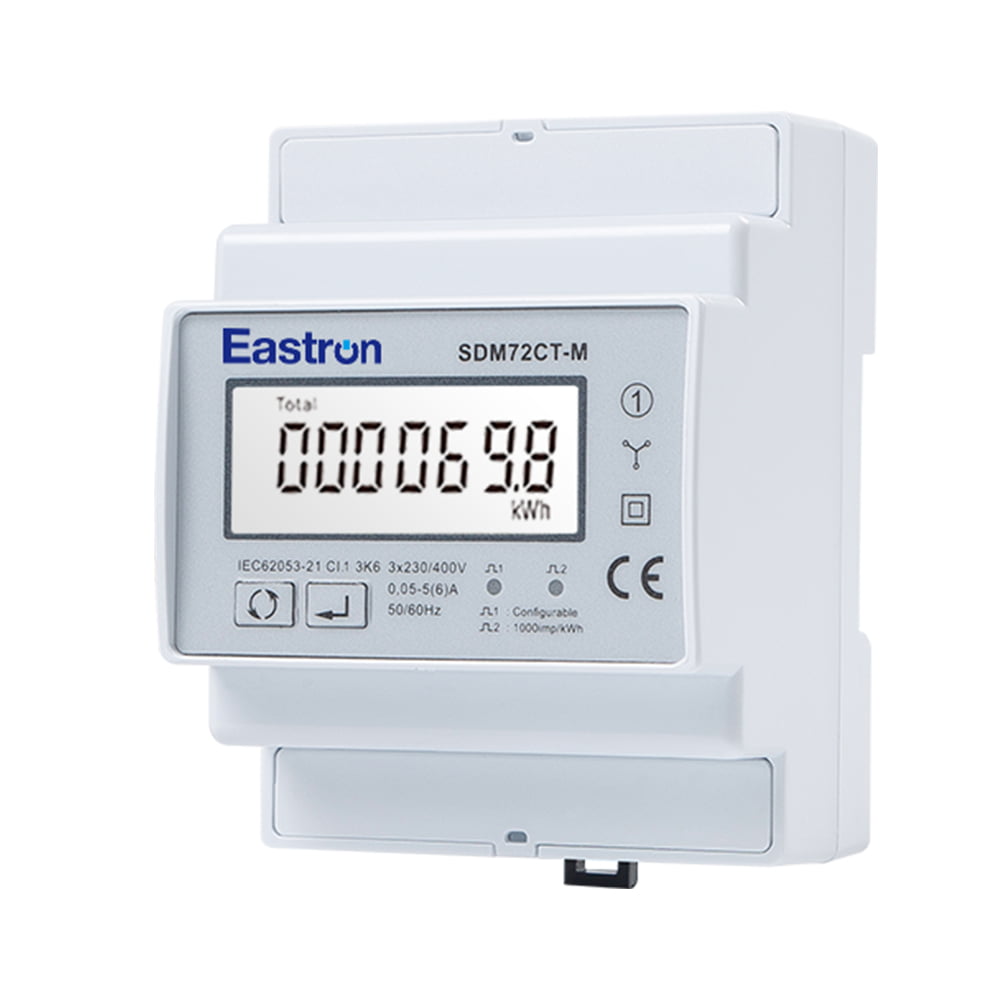

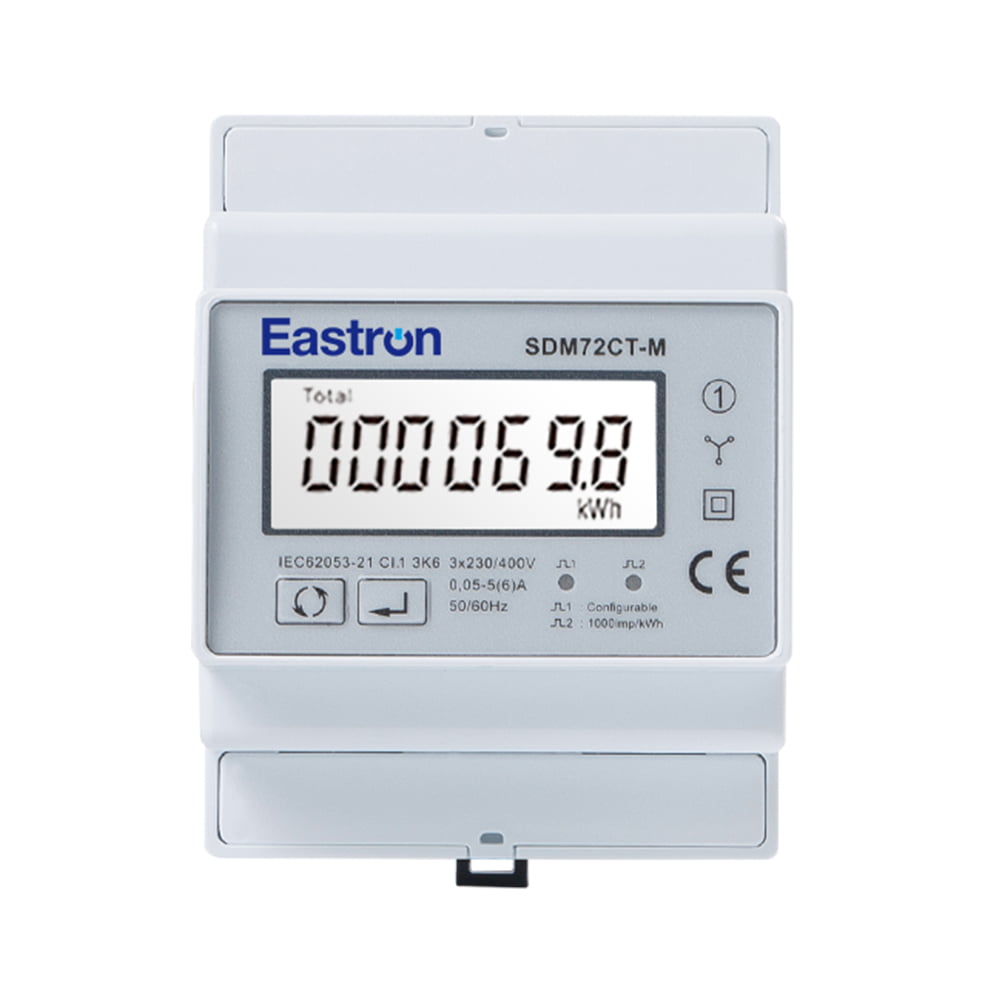

El SDM72CT-M es un contador de energía multifunción trifásico.
La unidad mide y muestra las características del suministro trifásico de cuatro cables (3p4w), incluyendo voltaje, frecuencia, corriente, potencia, energía activa y reactiva, importada o exportada. La energía se mide en términos de kWh, kVArh. Las entradas de corriente necesarias se obtienen mediante transformadores de corriente (CT).
Este medidor se puede configurar para funcionar con una amplia gama de CT, lo que brinda a la unidad un amplio rango de operación. Las interfaces integradas proporcionan salidas de pulso y Modbus RTU RS485. La configuración está protegida con contraseña.
| Características eléctricas | ||
| Tipo de Medición | RMS en sistema AC trifásico (3P4W) | |
| Precisión de medición | Fuerza | 1% del rango máximo |
| Energía Activa | IEC 62053-21 Clase 1.0 / EN50470-1/3 Clase B | |
| Energía reactiva | IEC62053-23 Clase 2 | |
| Frecuencia | 0,2% de frecuencia media | |
| Actual | 0,5% del rango máximo | |
| Voltaje | 0,5% del rango máximo | |
| Factor de potencia | 1% de la unidad (0,01) | |
| Entrada y salida | |||
| Corriente de entrada | Tipo de TC | TC primaria | 1-9999A |
| TC secundaria | 1A/5A | ||
| Corriente mínima | 0.25A | ||
| Corriente inicial | 10mA | ||
| Tipo directo
| Corriente nominal | 10A | |
| Corriente máxima | 100A | ||
| Corriente mínima | 0.5A | ||
| Corriente inicial | 40mA | ||
| SDM72D-M | Salida de 2 pulsos RS485 Modbus | ||
| SDM72CT-M | Salida de 2 pulsos RS485 Modbus | ||
| Comunicaciones Modbus | |
| Estándar de interfaz y protocolo | RS485 y MODBUS RTU |
| Dirección de comunicación | 1~247 |
| Distancia de transmisión | 1000 m máximo |
| Velocidad de transmisión | 1200bps~9600bps |
| Paridad | Ninguno (predeterminado), impar, par |
| Bits de parada | 1 o 2 |
