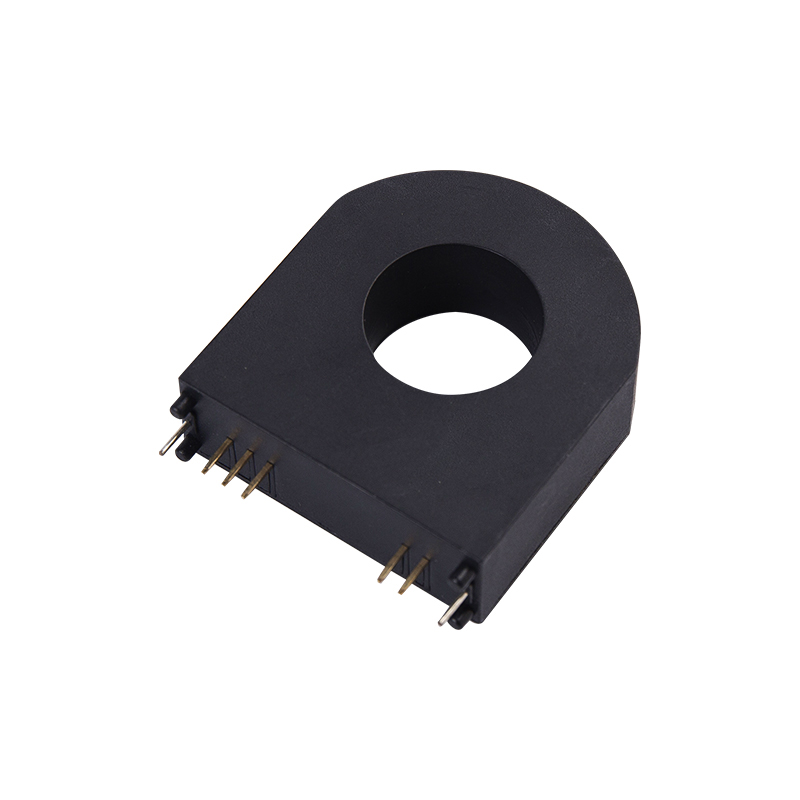

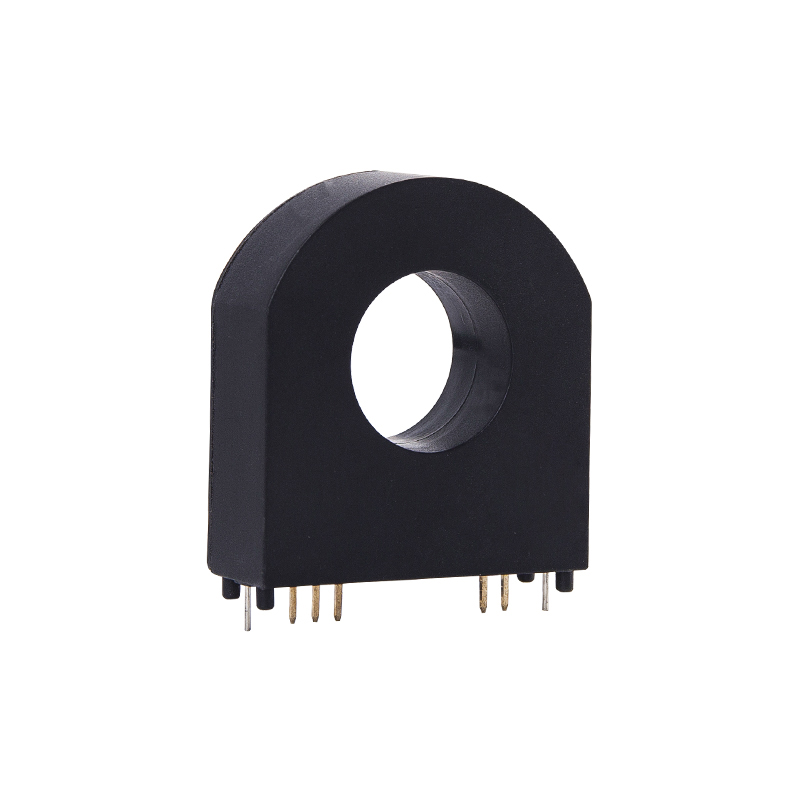

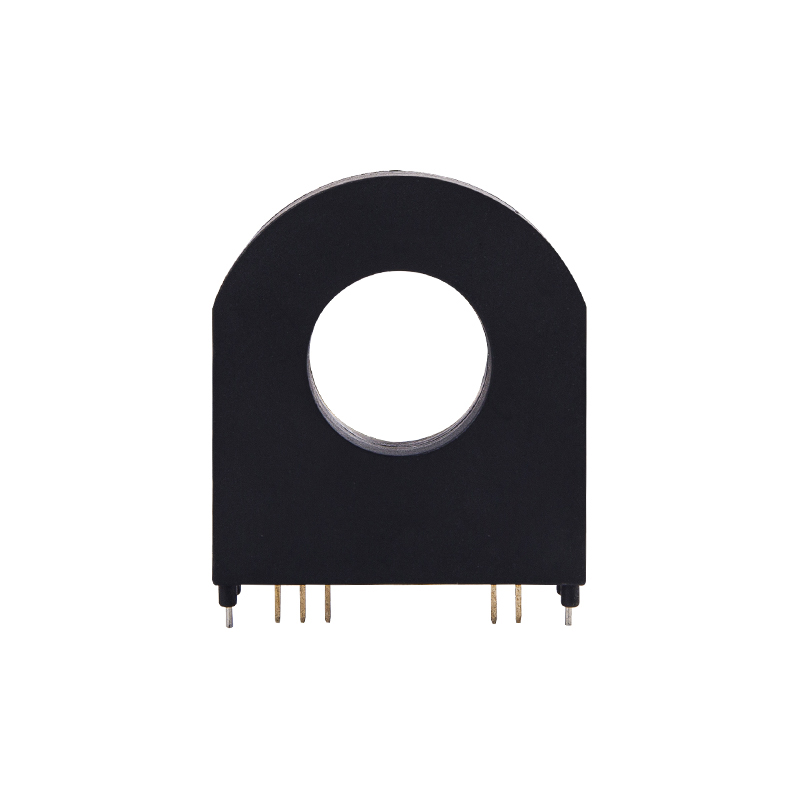

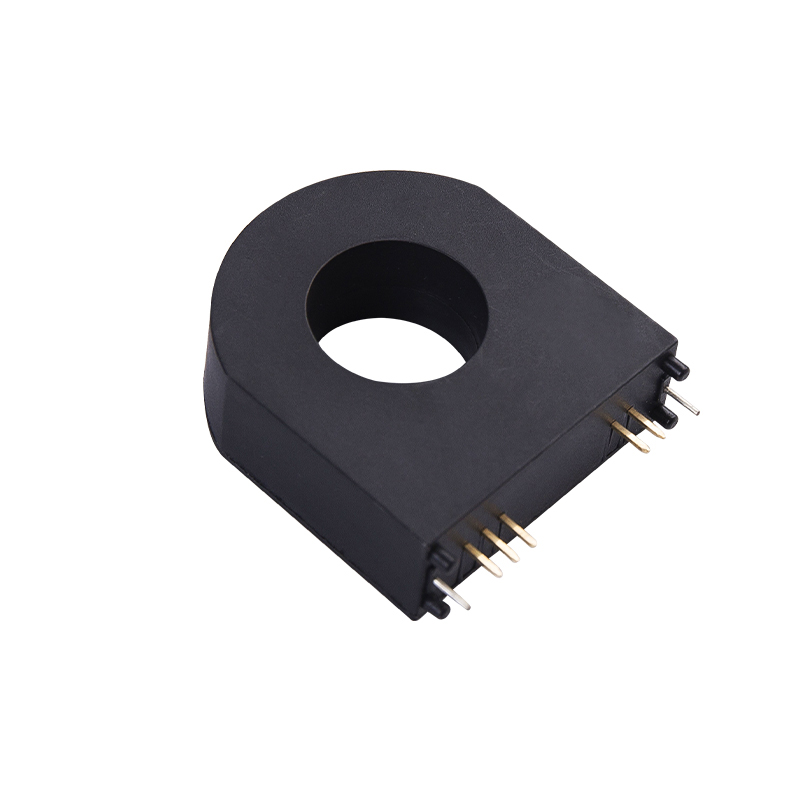

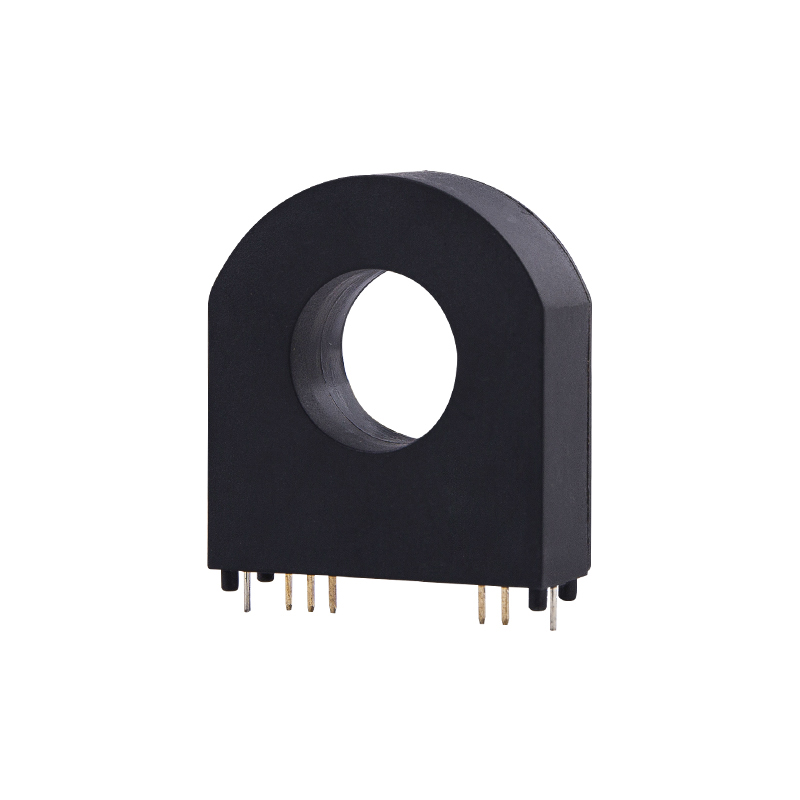

ESCS-B3 es un sensor protector operado por corriente residual para cargadores de vehículos eléctricos.
Es para evitar situaciones peligrosas en los casos en que la batería del vehículo (DC) esté conectada a la fuente de alimentación doméstica (AC). Generalmente, los sensores de corriente residual sensibles a CA/CC se pueden utilizar donde los circuitos de corriente continua y corriente alterna están conectados directamente y, por lo tanto, pueden ocurrir corrientes de fuga de CA/CC.
Cumple con los estándares de los requisitos de características operativas de corriente residual relacionados con IEC 62955 RDC-PD y los requisitos básicos de características operativas de corriente residual GB/T 22794, adaptándose a los requisitos de prueba de CC de 6 mA.
Características del producto:
●Módulo de corriente residual tipo A 6mA/DC 6mA/CCID20 para protección de pilas de carga de vehículos eléctricos
●Montado en placa PCB
●Indicación de acción de corriente residual digital altamente integrada todo en uno
Estándares internacionales:
●Requisitos de corriente residual IEC 62955-2018 para RDC-PD
●Requisitos básicos de corriente residual GB/T 22794, que se adaptan a los requisitos de prueba de CC de 6 mA
Voltaje | |
VDD | 4,85-5,15 VCC (se recomienda 4,9-5,10 VCC) |
Entrada/salida de voltaje | Nivel bajo: 0-0,6 V CC |
Nivel alto: 4,2-5 V CC |
Ambiente |
|
Temperatura de funcionamiento | -40 ℃… 105 ℃ |
Temperatura de almacenamiento | -40 ℃… 105 ℃ |
Humedad | ≤95% sin condensación |
ADAPTAR | B1/B2: 25 ℃ = 48,755, 80 ℃ = 213,13 |
B3: 25 ℃ = por determinar, 80 ℃ = por determinar | |
MTBF | ≥ 20 años |
Altitud | ≤ 4000m |
Código de pedido | Entrada actual | Entrada digital | Estándar |
ESCS-B1/B2-E1 | CC 6 mA/ CA 30 mA | 0V/5V | IEC62955 RDC-PD |
ESCS-B1/B2-E2 | CC 6 mA | 0V/5V | IEC62955 RDC-MD |
ESCS-B1/B2-U3 | CC 6 mA/CA 20 mA | / | Ul2231 |
ESCS-B3 | CC 6 mA/ CA 30 mA | 0V/5V | IEC62955 RDC-PD |
